    Indoor TV Antenna Types: Flat-Panel, Rabbit Ears, Amplified vs Non-Amplified — Which Design Is Right for You?

    Indoor TV Antennas come in several distinct designs, each with different strengths for VHF and UHF reception, different placement flexibility, and different amplifier options. Understanding the trade-offs between flat-panel patch antennas, classic rabbit ears dipoles, and amplified versus non-amplified models is essential to choosing an indoor antenna that actually receives the channels you want. This guide compares every indoor antenna type in plain language.

    Flat-Panel (Patch) Indoor Antennas — The Most Popular Design

    The flat-panel indoor antenna is the most common design on the market and the type most consumers encounter when shopping for a "digital HDTV Antenna" online or at retail. It consists of a thin rectangular plastic housing — typically one-quarter to one-half inch thick — containing printed antenna elements on an internal circuit board or flexible substrate. The flat form factor allows versatile mounting: on a wall, placed on a tabletop, or adhered directly to a window. Most flat-panel antennas are multi-directional, receiving signals reasonably well from both front and back, making placement more forgiving than with highly directional designs.

    Flat-panel antennas excel at UHF reception — their compact printed elements are well-matched to the shorter UHF wavelengths in the 470–698 MHz range. However, VHF performance is often limited. The elements are physically too small to efficiently capture the longer VHF wavelengths used for channels 2 through 13. If a major network affiliate in your area broadcasts on VHF, a standard flat-panel indoor antenna may struggle to receive it reliably, particularly beyond 20 miles. Some premium flat-panel models incorporate larger internal elements or supplemental VHF dipoles to address this limitation, but the fundamental physics of compact size versus long wavelength remains a design constraint. Many flat-panel models include a built-in USB-powered amplifier providing 10–20 dB of gain, and most are reversible — one side black, the other white — to match room decor.

    Dipole (Rabbit Ears) Indoor Antennas — The Classic That Still Outperforms

    The rabbit ears antenna — two telescopic metal rods extending from a central base, typically paired with a circular UHF loop — remains one of the most effective indoor antenna types for VHF reception, and it often costs less than most flat-panel alternatives. The extendable rods are adjustable dipoles: by changing their physical length and the angle between them, the user tunes the antenna for optimal reception at specific VHF frequencies. For channel 2 at 54 MHz, the rods extend to roughly 52 inches tip-to-tip. For channel 13 at 210 MHz, roughly 14 inches is near-optimal. This adjustability is a genuine engineering advantage that fixed-length flat-panel elements cannot replicate.

    The circular loop typically paired with rabbit ears is a UHF antenna. Together, the dipole rods and loop cover the full television broadcast spectrum — a combination many flat-panel antennas fail to match on the VHF side. Rabbit ears antennas are almost always passive — containing no internal amplifier — making them immune to the overload and noise problems that can plague amplified designs in strong-signal areas. Their main disadvantage is aesthetics: the metal rods and loop are undeniably retro-looking.

    Amplified vs. Non-Amplified Indoor Antennas — The Most Important Decision

    A passive (non-amplified) indoor antenna contains no electronic amplification — the signal captured by the antenna elements passes directly to the coaxial output. Passive antennas require no power source, add zero system noise, and cannot overload the TV tuner even in very strong signal areas. They are the ideal choice within 20 to 30 miles of broadcast towers where signal strength is adequate.

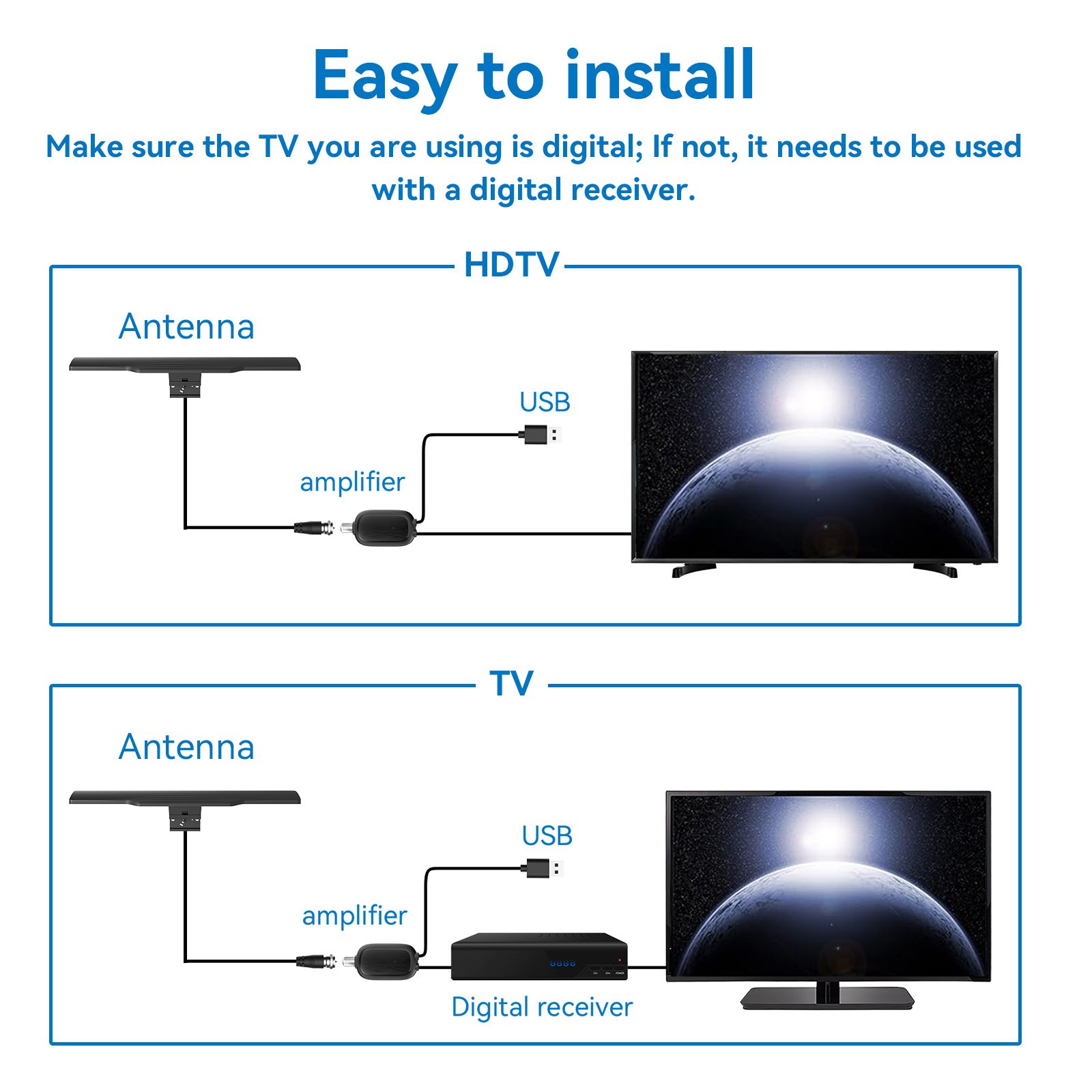

    An amplified (active) indoor antenna includes an electronic amplifier circuit, typically powered by a USB cable connected to the television or a wall adapter. The amplifier boosts the signal by 10 to 30 dB, helping overcome cable losses and marginal signal conditions at distances of 25 to 50 miles from towers. However, amplification adds noise — every amplifier has a noise figure measured in dB that degrades the signal-to-noise ratio. Budget amplifiers with noise figures of 4–5 dB can actually worsen reception. And in strong-signal areas within 15 miles of towers, amplification can overload the TV tuner, causing missing channels and pixelation.

    How to Decide: If you live within 20 miles of broadcast towers with strong FCC signal ratings, buy a passive indoor antenna first. If passive reception yields few or no channels, or if you are 25–50 miles from towers, switch to an amplified model with noise figure of 2 dB or less. The best amplified antennas include a switchable gain control or bypass option.

    Specialty Indoor Antenna Form Factors

    Window-mount antennas use suction cups or adhesive to attach directly to a window pane, eliminating one wall of signal loss — provided the window does not have low-E metallic coating. Set-top box antennas are larger, roughly the size of a compact router, with increased internal volume that accommodates bigger elements for improved VHF reception; some include motorized rotation via remote control. Streaming combo devices integrate an OTA antenna with a Wi-Fi connected tuner, capturing local broadcasts and streaming them to every device on the home network — effectively turning free over-the-air TV into an app-based experience alongside Netflix and Hulu.

    Which Type for Your locations? Urban apartment within 15 miles of towers: a basic passive flat-panel or rabbit ears antenna works perfectly. Suburban home at 15–30 miles: an amplified flat-panel with decent VHF sensitivity, or rabbit ears for VHF channels. Rural or distant locations at 30–50 miles: the highest-gain amplified indoor antenna you can find, placed as high as possible — but at these distances, consider whether an outdoor antenna might be the better investment.
