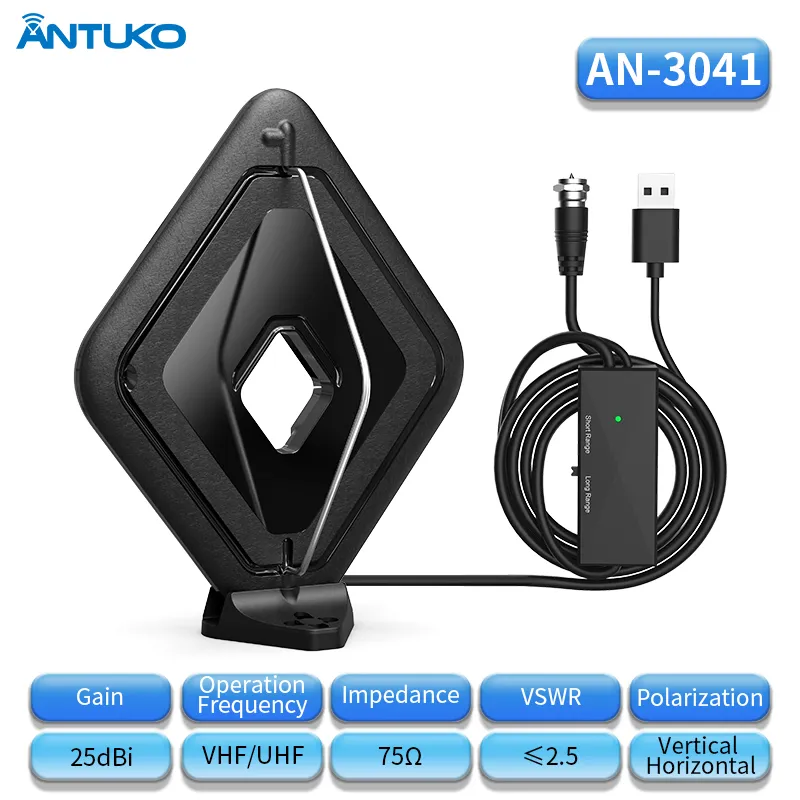

    AN-3041 2



    AN-3041 3

    3041

    AN-3041 6

     The Complete Guide to Digital HD TV Antennas: Technology, Benefits, and Specifications

    1. What is a Digital tv antenna?

    A Digital TV Antenna (also known as a DTV Antenna or OTA Antenna) is a device designed to intercept "Over-the-Air" (OTA) television signals broadcast by local stations. Unlike old analog Antennas, modern HD TV Antennas are optimized to receive digital signals in High Definition (1080p) and Ultra-High Definition (4K UHD), allowing users to watch premium broadcast channels without a monthly cable subscription.

    2. How TV Antennas Work

    Television stations broadcast signals in two primary frequency bands: VHF (Very High Frequency) and UHF (Ultra High Frequency).

    • The Process: The antenna captures these electromagnetic waves, converts them into an electrical signal, and sends them through a coaxial cable to your TV’s built-in digital tuner.

    • Signal Processing: High-quality antennas often feature integrated Smart IC Chips and LTE/4G Filters to block interference from mobiles networks, ensuring a cleaner picture and more stable connection.

    3. Types of HD TV Antennas

    Choosing the right antenna depends on your distance from the broadcast towers and your local geography.

    A. Indoor TV Antennas

    Best for urban or suburban areas within 30–60 miles of a tower. These are often paper-thin, sleek, and easy to hide behind a TV or mount on a window.

    B. Outdoor TV Antennas

    Designed for rural areas or long-range reception (60–150+ miles). They are typically larger, weather-resistant, and mounted on rooftops or masts to overcome obstructions like trees and hills.

    C. Universal/Hybrid Antennas

    A compact solution that can be used both indoors and outdoors. These antennas balance the high gain of an outdoor model with the aesthetic appeal of an indoor unit.

    4. Key Benefits of Using an HD TV Antenna

    • Cost-Effective (Cord-Cutting): Access major networks (ABC, NBC, CBS, FOX, PBS, etc.) for free with no monthly fees.

    • Superior Picture Quality: OTA signals are uncompressed, often providing a sharper 1080p or 4K picture than cable or satellite services.

    • Emergency Access: Antennas work even when internet or cable lines are down during storms, providing critical local news and weather updates.

    • Simple Installation: Most digital antennas use a standard Plug-and-Play F-type connector.

    5. Technical Specifications Table

    The following data represents the industry standards for high-performance digital antennas.

    SpecificationDescription/Value
    Frequency RangeVHF (170-230MHz) / UHF (470-862MHz)
    Reception StandardsDVB-T, DVB-T2, ATSC, ISDB-T, DTMB
    Signal Gain25dB - 35dB (Amplified)
    Impedance75 Ω (Standard Coaxial)
    PolarizationHorizontal / Vertical
    Power SupplyUSB Port (5V/50mA) or DC Adapter
    Connector TypeF-Male / IEC-Male
    Cable Type1.5C-2V / RG-59 / LMR-100 (Low Loss)

    6. Factors Affecting Signal Reception

    To achieve the best results with a TV antenna, consider these variables:

    1. Distance to Tower: The further you are, the more "Gain" (dB) your antenna requires.

    2. Topography: Mountains, tall buildings, and heavy foliage can block line-of-sight signals.

    3. Placement: Higher placement (higher floor or roof) almost always results in better reception.

    4. Interference: Electronic appliances and 4G/5G cell towers can disrupt signals if the antenna lacks a proper filter.

    7. Frequently Asked Questions (FAQ)

    Q1: Can I get channels in 4K with an antenna?

    Yes, if the local station is broadcasting in 4K (ATSC 3.0 standard) and your TV supports it, a high-quality antenna will deliver the signal.

    Q2: Do I need a different antenna for every TV?

    While you can use a "Signal Splitter" to connect one antenna to multiple TVs, this may reduce signal strength. Using a dedicated antenna or a distribution amplifier is recommended for multiple rooms.

    Q3: Does weather affect the signal?

    Heavy rain or thick cloud cover can occasionally cause "pixelation," but outdoor antennas are generally built to remain stable in most weather conditions.

    SEO Meta Tags (For Web Implementation)

    • Title: Digital HD TV Antenna Guide | Free 4K UHD Broadcast Reception

    • Description: Discover how digital TV antennas work, the difference between indoor and outdoor models, and how to get free HD channels without a cable subscription.

    • Keywords: HD TV antenna, digital antenna, indoor TV antenna, outdoor antenna, cord-cutting, free TV channels, DTV antenna, long-range TV antenna.
