1. What Is an Indoor Digital tv antenna?

An indoor digital TV Antenna — also called an indoor HDTV Antenna, indoor OTA antenna, or digital indoor aerial — is a compact reception device designed for use inside the home, apartment, or condo. It captures free over-the-air digital television broadcast signals transmitted by local TV stations and delivers them to your television through a standard coaxial cable connection. Unlike outdoor TV Antennas that require roof mounting, mast installation, and professional setup, an indoor antenna is plug-and-play: place it on a desk, shelf, wall, or window, connect the coax cable to the TV, run a channel scan, and start watching.

An indoor antenna receives the same free local channels as a rooftop antenna — major network affiliates such as ABC, CBS, NBC, FOX, PBS, and The CW, along with dozens of digital sub-channels offering classic TV programming, local news and weather, live sports, and niche content. All programming arrives in uncompressed high definition (1080i or 720p), with select markets now offering 4K Ultra HD broadcasts via the ATSC 3.0 NextGen TV standard. There is no monthly subscription fee, no internet connection required, and no data cap consumption — making an indoor antenna one of the best investments for cord cutters and anyone looking to reduce their monthly entertainment spending.

The trade-off inherent to indoor antenna design is convenience versus raw reception capability. An indoor unit sacrifices some signal-gathering power — its compact elements capture less RF energy, building materials attenuate signals before they reach the antenna, and indoor placement limits elevation compared to a rooftop mount. But for the tens of millions of households located within 30 to 40 miles of their local broadcast towers, a well-placed indoor digital antenna can deliver dozens of crystal-clear free HDTV channels without any of the complexity, cost, or installation labor of an outdoor antenna system. For apartment dwellers, renters, and anyone unwilling or unable to install rooftop equipment, the indoor antenna is the only practical path to free over-the-air television.

2. Benefits of Using an Indoor TV Antenna

An indoor digital antenna offers a compelling set of advantages for cord cutters, streaming households, and anyone looking to access free local television channels. Here are the key benefits that make indoor antennas one of the fastest-growing consumer electronics categories.

Zero Monthly Cost — Truly Free Television

Unlike cable TV packages ($60–$150+/month), satellite subscriptions, or live TV streaming services such as YouTube TV ($72.99/month) or Hulu + Live TV ($82.99/month), an indoor digital antenna delivers free HDTV channels with no recurring fees whatsoever. Once you purchase the antenna — typically $15 to $50 for a quality indoor model — you own it. There is no contract, no price increase, and no subscription to cancel. For households looking to reduce monthly expenses, an indoor antenna provides one of the fastest returns on investment in consumer electronics: a $30 antenna that replaces a $75/month live TV streaming subscription pays for itself in two weeks and saves approximately $900 per year thereafter.

Uncompressed High-Definition Picture Quality

Over-the-air broadcasts are less compressed than the same channels delivered through cable or streaming services. Cable providers and streaming platforms apply additional video compression to fit more channels into their available bandwidth, which can introduce visible artifacts — particularly in fast-motion content like live sports. An indoor antenna receives the broadcast signal directly from the station tower with no intermediary compression, delivering the highest possible picture quality for the channel. For sports fans, this difference is often noticeable: football, basketball, and hockey broadcasts look sharper and smoother over the air than through compressed cable or streaming feeds.

Access to Live Sports, Local News, and Network Programming

Many of the most-watched television events — the Super Bowl, the Olympics, the World Series, local evening news, severe weather coverage — are broadcast over the air on major networks and are available free with an indoor antenna. Streaming services often charge extra for live sports packages or do not carry local channels at all in certain markets. An indoor antenna fills this content gap at zero cost, complementing on-demand streaming subscriptions like Netflix, Disney+, and Amazon Prime Video with live, local, and sports programming that those services do not provide.

No Internet Required — Works During Outages

An indoor TV antenna operates completely independently of your home internet connection. When the Wi-Fi goes down, when the cable broadband is out, or when severe weather disrupts internet service, your indoor antenna continues to deliver television programming. This makes it an essential emergency preparedness tool — during hurricanes, winter storms, wildfires, and other situations where internet and cable infrastructure may be damaged, over-the-air television provides critical news, weather updates, and emergency information.

Ideal for Apartments, Rentals, and Secondary TVs

For apartment and condo residents, HOA-restricted communities, and renters who cannot install rooftop equipment, the indoor antenna is the only practical option for free over-the-air television. Indoor antennas require no drilling, no exterior mounting, no landlord permission, and no permanent modification to the living space. They are also perfect for secondary televisions — bedrooms, kitchens, guest rooms, home offices — where a separate cable box or streaming device would be an unnecessary expense. One indoor antenna can serve a single TV, or with a splitter or network tuner device, feed multiple televisions throughout the home.

Complements Streaming Services — The Hybrid Approach

The most cost-effective television strategy for many households combines an indoor antenna for free local and live programming with one or two on-demand streaming services for movies, original series, and back-catalog content. This hybrid cord cutting approach typically costs $10 to $30 per month — the price of one or two streaming subscriptions — versus $75 to $150+ for cable or a full suite of live TV streaming services. The indoor antenna handles the live, local, and sports content that is expensive or unavailable through on-demand streaming, while Netflix or Hulu provides the on-demand library.

3. How Indoor TV Antennas Capture Free OTA Signals

Television stations transmit radio frequency (RF) energy from tall broadcast towers — typically located on hilltops, tall buildings, or dedicated tower sites at the outskirts of metropolitan areas. These RF waves travel outward in all directions at the speed of light, passing through the atmosphere and, to varying degrees, through the walls, roof, and windows of your home. An indoor digital antenna is engineered to intercept these electromagnetic waves and convert them into a tiny electrical current that your television's ATSC tuner can decode into picture and sound.

The Complete Indoor Antenna Signal Chain

1. Broadcast Tower Transmits RF Energy — Radio frequency signals in the VHF band (54–216 MHz, corresponding to TV channels 2–13) and UHF band (470–698 MHz, channels 14–51 post FCC spectrum repack). Major network stations may transmit with up to 1,000 kilowatts of effective radiated power, sending signals that can travel 70 miles or more under favorable conditions.

2. Signal Penetrates Building Materials — The RF waves pass through exterior walls, roofing, and interior walls before reaching the indoor antenna. Each building material attenuates (weakens) the signal by a certain amount. Wood-frame construction with vinyl siding is relatively transparent to RF; brick, concrete, stucco, and metal siding are significantly more lossy. This building penetration loss is the primary reason indoor antennas receive fewer channels than rooftop antennas at the same locations.

3. Antenna Elements Capture the Signal — Conductive metal rods (dipoles), loops, or printed circuit traces inside the antenna housing resonate at the broadcast frequencies. When an RF wave at the resonant frequency strikes these elements, it induces a tiny alternating current — typically measured in microvolts — proportional to the signal strength at that exact physical locations.

4. Balun / Matching Transformer Converts Impedance — The antenna elements naturally present a balanced impedance of approximately 300 ohms. The balun (balanced-to-unbalanced transformer) converts this to the 75-ohm unbalanced impedance used by standard coaxial cable, ensuring efficient power transfer with minimal signal reflection.

5. Amplifier Boosts the Signal (If Present) — In an Amplified Indoor Antenna, an electronic amplifier circuit increases the signal voltage by 10–30 dB. Power for the amplifier is drawn from a USB port on the television or a separate USB wall adapter. A well-designed amplifier adds minimal noise (low noise figure) while providing enough gain to overcome cable loss and marginal signal conditions.

6. Coaxial Cable Carries the Signal to the TV — The amplified or passive RF signal travels through RG6 coaxial cable to the television's antenna input, labeled "ANT IN" or "RF IN" — a standard threaded F-connector on the back of the TV.

7. ATSC Tuner Decodes the Digital Signal — The TV's internal tuner selects the desired RF channel, demodulates the ATSC digital modulation, extracts the compressed video (MPEG-2 or H.264) and audio (Dolby AC-3) streams, and renders them as picture and sound on the screen.

Indoor vs. Outdoor Reception: Why Your Indoor Antenna Faces a Harder Challenge

An outdoor rooftop antenna enjoys a clear, unobstructed line-of-sight to the broadcast towers. The signal path is primarily open air, with atmospheric losses being the dominant attenuation factor. An indoor TV antenna faces a fundamentally different and more hostile RF environment. Every wall, floor, ceiling, window, and piece of furniture between the antenna and the towers absorbs or reflects some of the signal energy. Interior walls, large appliances, metal-framed furniture, and even the television itself create a complex three-dimensional pattern of reflections, shadows, and standing waves within the room.

This is why the same indoor antenna can produce dramatically different results just a few feet apart within the same room. Indoor RF propagation is dominated by multipath — the signal arrives at the antenna via multiple reflected paths (bouncing off walls, ceilings, and objects) that sum together constructively at some locationss and destructively at others. A position that happens to be at a constructive interference peak for your most important channels can yield perfect reception, while a position just three feet away in a destructive null may receive nothing at all. This spatial variability is the single most important concept to understand when troubleshooting indoor antenna reception: if you are not getting channels, the solution is almost always to move the antenna, not to buy a different one.

The two broadcast frequency bands also behave very differently indoors. UHF signals at 470–698 MHz have wavelengths of roughly 16 to 25 inches — short enough to fit into compact indoor antenna elements, but also short enough to be significantly attenuated by walls and easily blocked by objects in the room. VHF signals at 54–216 MHz have much longer wavelengths of roughly 5 to 18 feet — these longer waves penetrate building materials more effectively than UHF, but indoor antennas rarely have elements physically large enough to capture VHF efficiently. This physical mismatch is the primary reason why many indoor antenna users successfully receive dozens of UHF digital sub-channels but cannot pick up a nearby VHF station broadcasting a major network like ABC or NBC on channel 7, 9, or 11.

4. Types of Indoor TV Antennas Compared

Flat-Panel (Patch) Indoor Antennas — The Most Popular Design

The flat-panel indoor antenna is the most common design on the market today and the type most consumers encounter when shopping for a "Digital HDTV Antenna" online or at retail. It consists of a thin rectangular plastic housing — typically one-quarter to one-half inch thick — that contains printed antenna elements on an internal circuit board or flexible substrate. The flat form factor allows versatile mounting: on a wall using adhesive strips or screws, placed on a tabletop or entertainment center with a built-in stand, or adhered directly to a window pane. Most flat-panel antennas are multi-directional, receiving signals reasonably well from both the front and back of the panel, which makes placement more forgiving than with highly directional antenna designs that require precise aiming.

Flat-panel indoor antennas excel at UHF reception in the 470–698 MHz range. Their compact printed element geometry is well-matched to UHF wavelengths. However, VHF performance is often limited — the elements are simply too small to efficiently couple with the longer VHF wavelengths at 54–216 MHz. If a major network affiliate in your area broadcasts on VHF channels 7–13 (High VHF) or 2–6 (Low VHF), a standard flat-panel indoor antenna may struggle to receive it reliably, particularly at distances beyond 20 miles. Some premium flat-panel models incorporate larger internal elements or supplemental external VHF dipole rods to address this limitation, but the fundamental physics of compact size versus long wavelength remains a design constraint for all flat-panel antennas.

Many flat-panel models include a built-in USB-powered amplifier providing 10–20 dB of gain. The amplifier's quality — particularly its noise figure — varies considerably between budget and premium models. Most flat-panel antennas are reversible with one side black and the other white, allowing the user to match their room decor. Common accessories include an adhesive backing or keyhole mounting holes for wall attachment, a detachable coaxial cable typically 3 to 16 feet in length, and a USB power cable for the amplifier.

Dipole (Rabbit Ears) Indoor Antennas — The Classic That Still Works

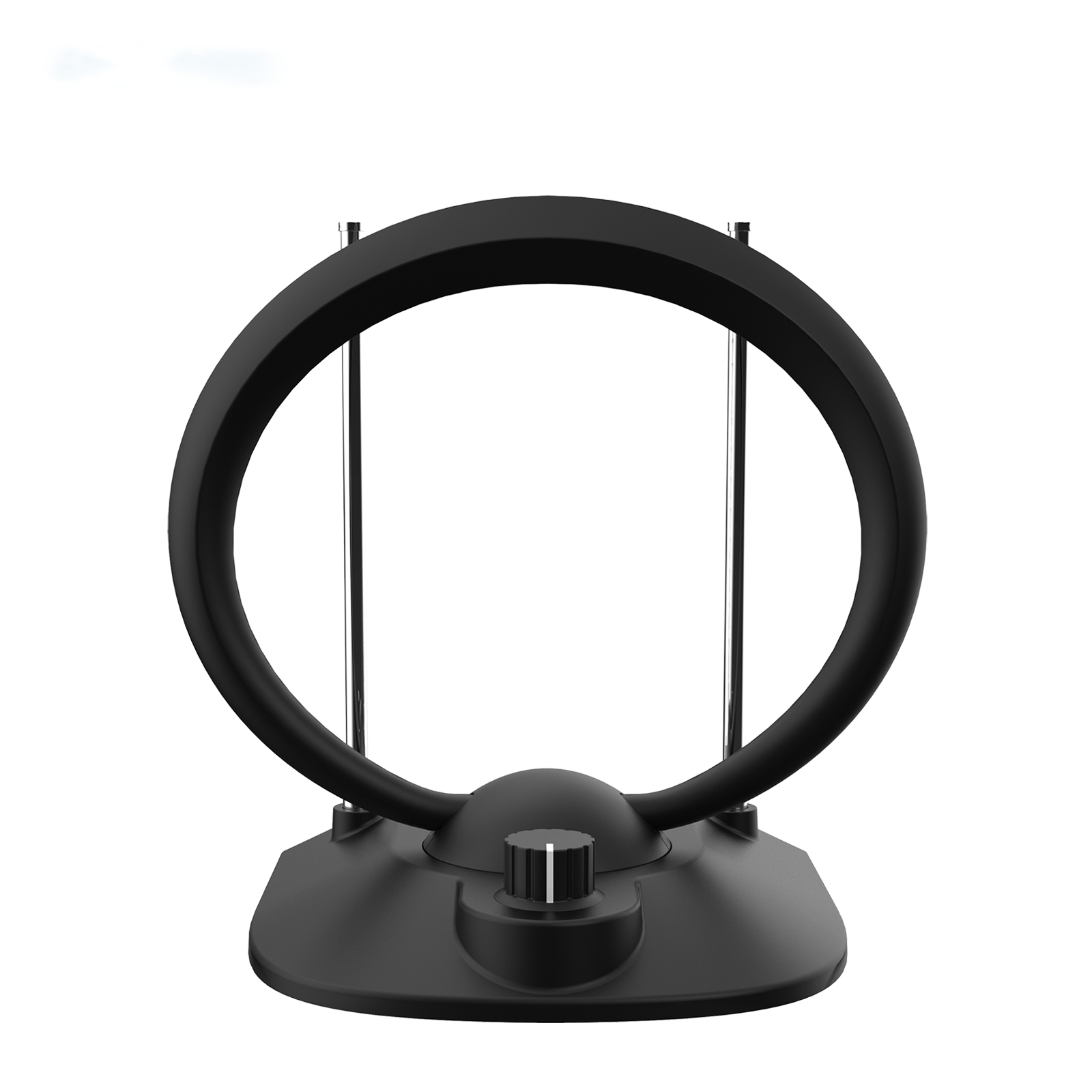

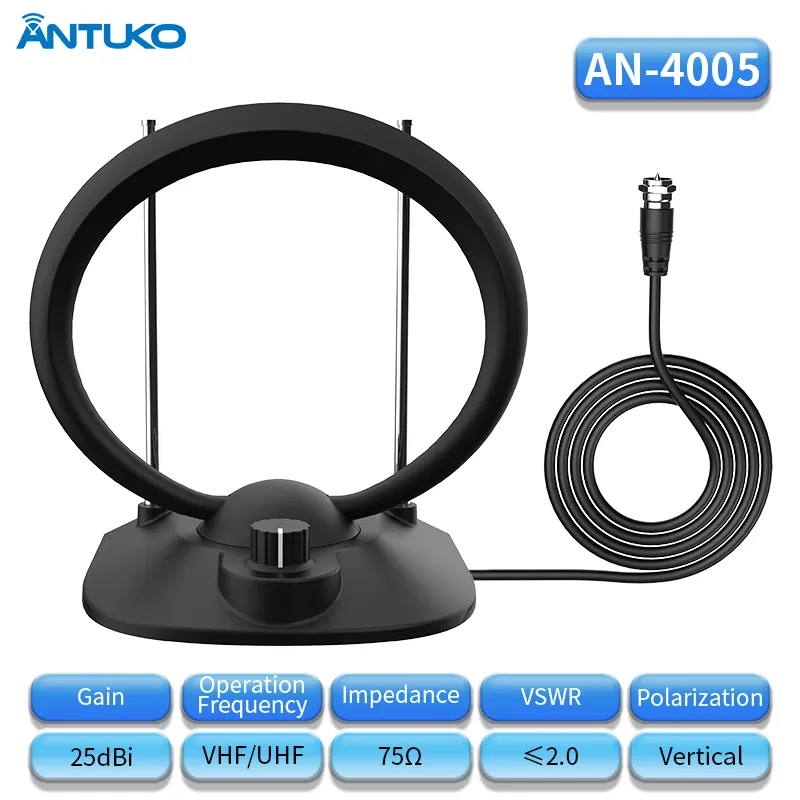

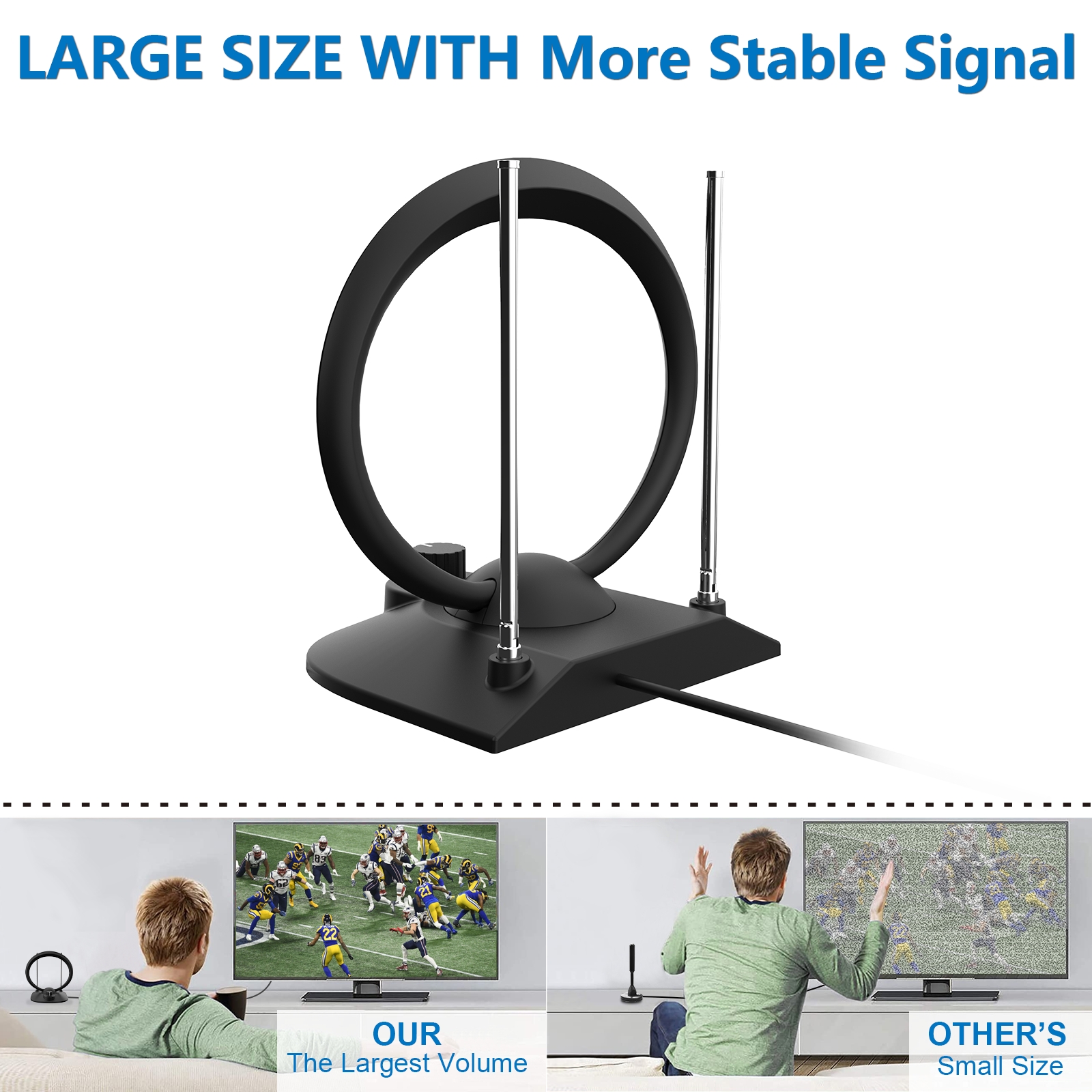

The rabbit ears antenna — two telescopic metal rods extending from a central base, typically paired with a circular UHF loop — remains one of the most effective indoor antenna types for VHF reception, and it costs less than most flat-panel alternatives. The extendable rods are adjustable dipoles: by changing their physical length and the angle between them, the user tunes the antenna for optimal reception at specific VHF frequencies. For channel 2 broadcasting at 54 MHz, the rods should be extended to roughly 52 inches tip-to-tip. For channel 13 at 210 MHz, roughly 14 inches is near-optimal. This adjustability is a genuine engineering advantage that fixed-length flat-panel elements cannot replicate.

The circular loop typically paired with rabbit ears is a UHF antenna, providing coverage for channels 14–51. Together, the dipole rods (VHF) and the loop (UHF) cover the full television broadcast spectrum — a combination that many flat-panel antennas fail to match on the VHF side. Rabbit ears antennas are almost always passive — they contain no internal electronic amplifier — making them immune to the overload and noise problems that can plague amplified indoor antennas in strong-signal areas. Their main disadvantage is aesthetics: the metal rods and loop have a distinctly retro appearance that some users find visually intrusive compared to a sleek flat panel.

Amplified vs. Non-Amplified Indoor Antennas — Which Is Better?

Indoor TV antennas are available in two electrical configurations, and choosing the right one for your locations significantly impacts channel count and reception reliability. A passive (non-amplified) indoor antenna contains no electronic amplification — the signal captured by the antenna elements passes directly to the coaxial output with no modification. Passive antennas require no power source, add absolutely zero system noise, and cannot overload the TV tuner even in very strong signal areas. They are the ideal choice when the received signal strength at your locations is already adequate, which is commonly the case within 20 to 30 miles of broadcast towers with clear terrain.

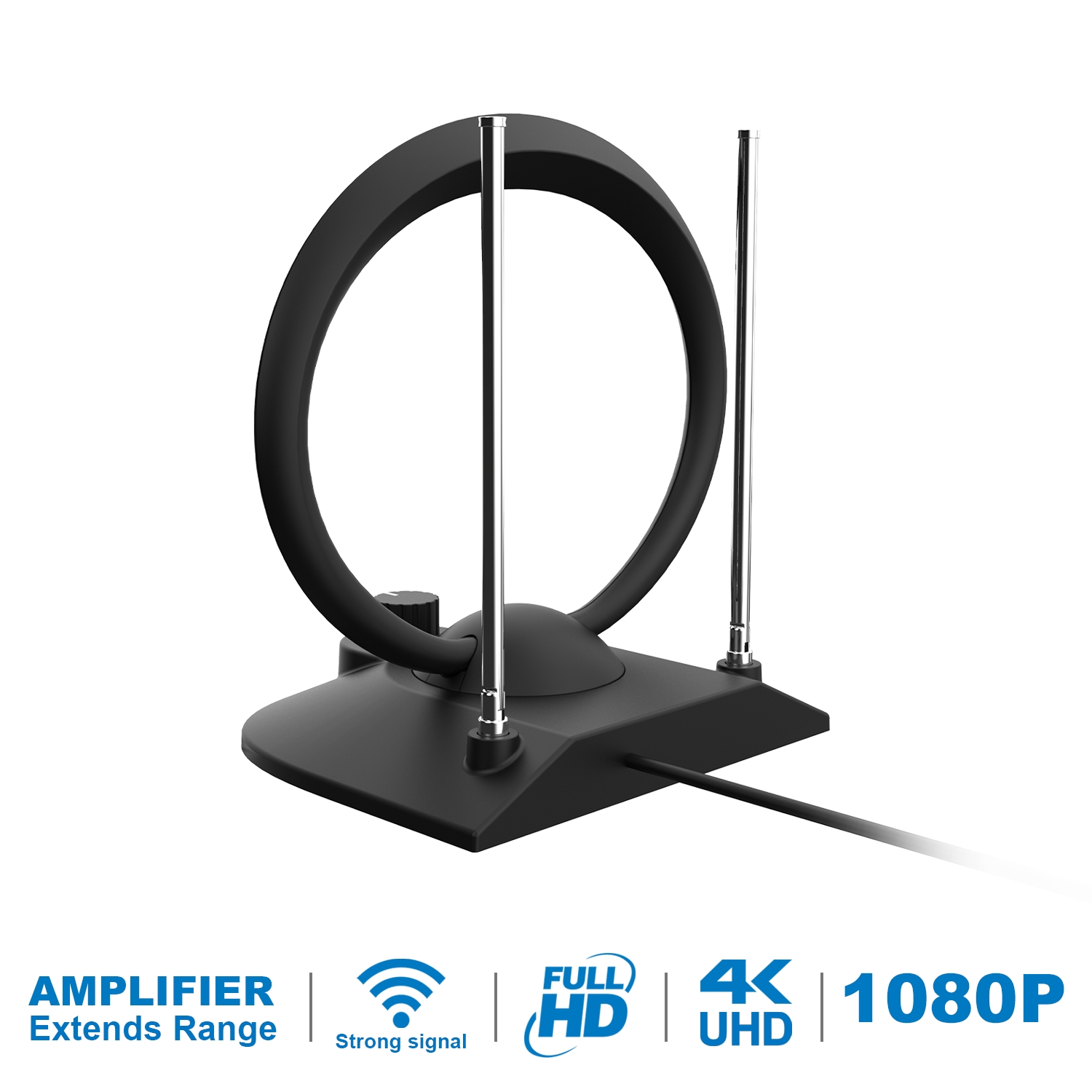

An amplified (active) indoor antenna includes an electronic amplifier circuit, typically powered by a USB cable connected to the television or a wall adapter. The amplifier boosts the signal by 10 to 30 dB before it travels down the coaxial cable, providing additional signal strength to overcome cable losses and reach the TV tuner's minimum decoding threshold. Amplified indoor antennas are designed for moderate-signal areas — typically 25 to 50 miles from towers — and for installations where the antenna must be placed in a signal-challenged indoor locations such as a ground-floor room, a basement, or a position far from windows facing the towers.

Amplification does not come without trade-offs. Every amplifier adds noise to the signal — its noise figure, measured in dB, directly degrades the signal-to-noise ratio. A budget amplifier with a noise figure of 4–5 dB can actually worsen reception compared to a passive setup if the raw signal quality is already marginal. Additionally, if the incoming signal is strong — common within 15 miles of broadcast towers — amplification can push the signal beyond the TV tuner's maximum input range, causing overload that manifests as missing channels and pixelation rather than improved reception. The best amplified indoor antennas include switchable gain control or an amplifier bypass switch, allowing the user to toggle amplification on and off to compare results directly.

Specialty Indoor Antenna Form Factors

Window-mount indoor antennas use suction cups, adhesive pads, or clip-on brackets to attach directly to a window pane, maximizing exposure to the outside signal path while eliminating one wall of attenuation. These are essentially flat-panel or compact dipole designs optimized for glass mounting and are among the most effective indoor antenna placement options — provided the window does not have low-E metallic coating.

Set-top box indoor antennas are larger — roughly the size of a cable modem or compact Wi-Fi router — and sit on the TV stand or entertainment center. Their increased internal volume accommodates larger antenna elements than ultra-thin flat panels, which generally translates to improved VHF reception. Some premium set-top box models include motorized rotation mechanisms, allowing the user to aim the antenna via remote control for optimal reception of stations arriving from different compass directions without physically repositioning the unit.

Network-connected tuner devices with integrated indoor antennas combine an OTA antenna element with a multi-tuner ATSC receiver and a Wi-Fi transmitter in a single unit. The device captures over-the-air broadcasts and streams them to every device on the home network — smart TVs, smartphoness, tablets, laptops, and streaming boxes — effectively turning free OTA television into an app-based experience that coexists alongside Netflix, Hulu, and other streaming platforms. These devices represent the convergence of antenna technology and streaming convenience, freeing antenna placement from TV placement entirely.

5. How to Choose the Best Indoor Antenna for Your locations

Selecting the right indoor TV antenna does not begin with the antenna itself — it begins with understanding your local broadcast environment. The single most important step in choosing an indoor antenna is determining what broadcast signals are available at your specific address and which frequency bands those stations use. An antenna perfectly suited to one locations may be completely wrong for another just a few miles away.

Step 1: Check Your Local Channel Availability and Signal Strength

Before purchasing any indoor antenna, visit the FCC DTV Reception Maps website — a free, official tool provided by the Federal Communications Commission. Enter your exact street address (not just your zip code — reception varies by specific locations). The tool returns a complete list of every broadcast station predicted to be receivable at your address, including each station's call sign, network affiliation, RF channel number, compass direction from your home, and signal strength classification — Strong, Moderate, Weak, or No Signal. This information forms the foundation of your antenna selection decision.

Alternative tools that provide similar information include AntennaWeb.org (maintained by the Consumer Technology Association) and RabbitEars.info (an independent signal analysis site popular among OTA enthusiasts). All three tools are free and provide the same fundamental data: which stations are available, on which RF channels, from which direction, and at what predicted signal strength.

Step 2: Determine Whether You Need VHF Reception

Examine the results from the FCC tool and note which RF channels your local stations use. If all stations of interest are on RF channels 14 and above (UHF band), a UHF-optimized flat-panel indoor antenna will serve you well. If any important station — particularly a major network affiliate like ABC, CBS, NBC, or FOX — broadcasts on RF channels 2–13 (VHF band), you need an indoor antenna with genuine VHF reception capability. This typically means either a rabbit ears dipole antenna, a flat-panel model with dedicated VHF elements, or a set-top box design with larger internal elements.

Many consumers buy a sleek flat-panel antenna, find they receive 40+ UHF channels perfectly, but cannot get their local NBC station — only to discover that NBC broadcasts on VHF channel 11. Checking VHF requirements before purchase prevents this common frustration.

Step 3: Match Antenna Type to Your Distance and Terrain

Within 15 miles of towers, strong signals: A basic passive flat-panel indoor antenna or inexpensive rabbit ears will reliably receive all available channels. Do not over-invest in amplification at this distance — it provides no benefit and may cause tuner overload. A $15–$25 passive antenna is all you need.

15–30 miles from towers, moderate signals: An amplified flat-panel antenna or a well-placed passive dipole antenna typically captures most available channels. If your station list includes VHF channels, prioritize an antenna with dedicated VHF elements. Attic placement at this distance is highly effective if accessible.

30–50 miles from towers, weak to moderate signals: Choose the highest-gain amplified indoor antenna you can find, place it at the highest indoor locations available — ideally an attic or second-story window facing the towers — and expect to test multiple positions before finding the optimal spot. A low-noise amplifier (noise figure of 2 dB or less) becomes important at these distances. Even with the best indoor setup, VHF reception beyond 40 miles is unreliable with indoor equipment.

Beyond 50 miles: Indoor antenna reception is generally not reliable at these distances regardless of antenna type or amplification. The combination of free-space path loss and building penetration losses pushes most signals below the TV tuner's decoding threshold. At these distances, an outdoor roof-mounted antenna is the appropriate solution for reliable OTA reception.

Step 4: Check for 4G/5G Tower Proximity

If a cellular tower is visible from your home or located within a quarter mile, select an indoor antenna with a built-in LTE/5G filter, or plan to add an external inline filter. Cellular signals in bands immediately above the UHF TV spectrum (698 MHz and up) can overload a TV tuner even when the antenna itself is not directly receiving them — the strong nearby RF field couples into the antenna elements and cable. Many current-generation amplified indoor antennas now include integrated 5G filtering as a standard feature.

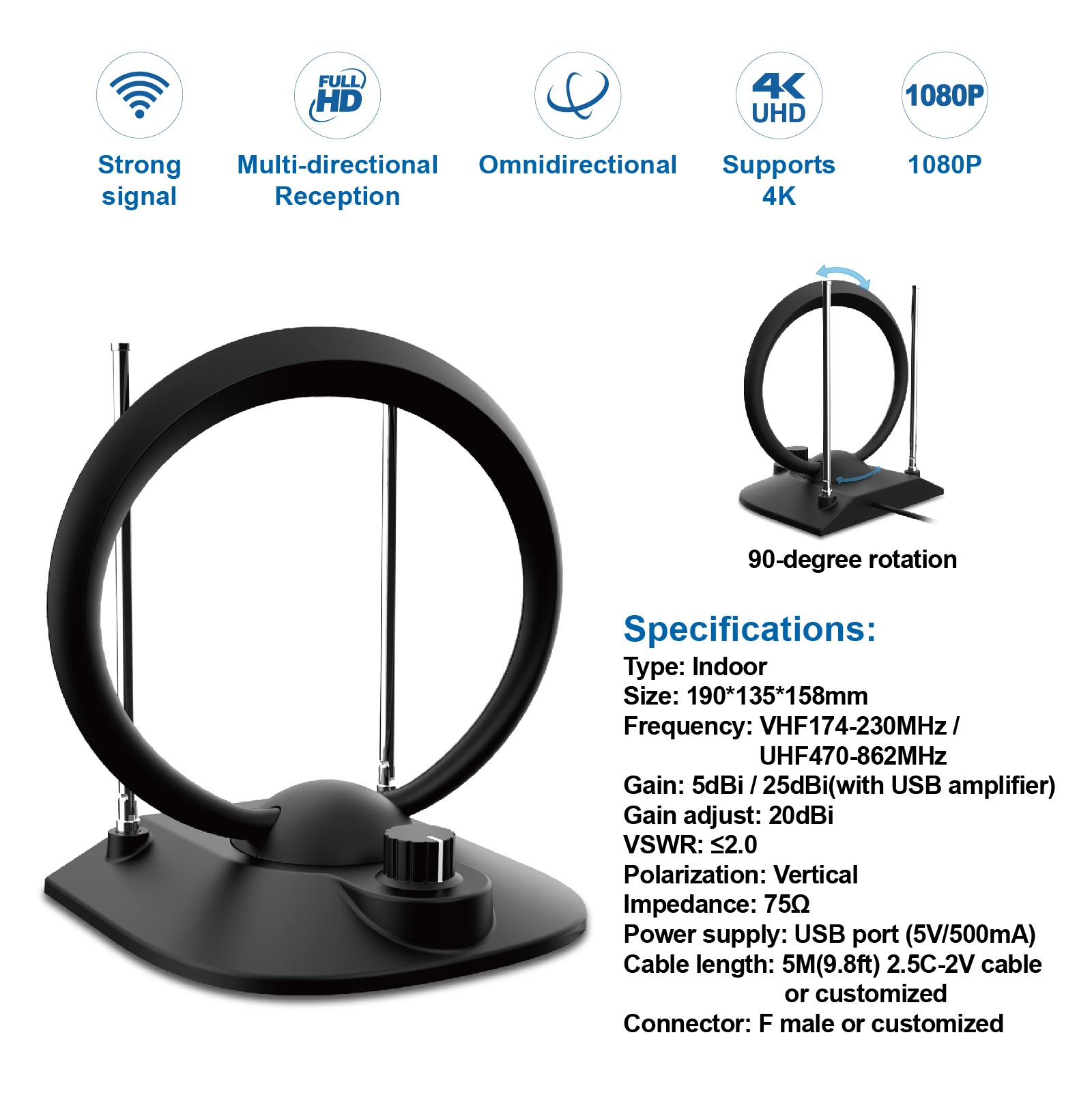

6. Key Technical Specifications for Indoor Antennas Explained

When comparing indoor TV antennas, understanding the technical specifications that define real-world performance is essential. Marketing terms like "mile range" or "channel count" are frequently exaggerated and rarely verified independently; the actual engineering specifications below reveal what an antenna can genuinely do.

Frequency Range and VHF/UHF Band Coverage

The antenna's specified frequency range — measured in megahertz (MHz) — determines which broadcast channels it can physically receive. A UHF-only antenna rated for 470–698 MHz will capture channels 14–51 but will completely miss any station broadcasting on VHF channels 2–13. A full-band indoor antenna covering both VHF (54–216 MHz) and UHF (470–698 MHz) is always preferable unless you have independently verified — using the FCC DTV Reception Maps — that every station you want to receive is in the UHF band. Be skeptical of flat-panel antennas marketed as "VHF/UHF" when their thin form factor suggests the internal elements cannot be physically large enough for effective VHF sensitivity. If the antenna is thinner than roughly one inch, it almost certainly has compromised VHF performance at any meaningful distance.

Antenna Gain (dBi or dBd)

Gain is the most important antenna specification for indoor models and typically ranges from 2 to 8 dBi. Gain measures how effectively the antenna concentrates received RF energy in a particular direction — higher gain numbers translate to stronger signal output for the same incoming field strength. However, gain and reception pattern are inherently linked: a higher-gain indoor antenna achieves that gain by being more directional, meaning it receives better in one direction but worse in others.

Low-gain indoor antennas at 2–4 dBi are usually multi-directional, forgiving of placement, and suitable for urban areas where signals are strong from multiple tower directions. Higher-gain indoor antennas at 5–8 dBi require more deliberate aiming toward the towers but can pull in usable signals at greater distances. Gain is specified relative to either an isotropic reference (dBi) or a half-wave dipole reference (dBd). The conversion is dBi = dBd + 2.15 — meaning a 5 dBd antenna is equivalent to approximately 7.15 dBi. When comparing two antennas, verify they use the same gain reference unit; many products omit this specification entirely, substituting vague "mile range" claims for measurable engineering data.

Impedance — 75 Ohm Standard

The entire television reception system operates at 75 ohms impedance as an industry standard. Every component — the antenna output, coaxial cable, F-connectors, splitters, amplifiers, and the TV's antenna input — must present 75 ohms impedance for efficient power transfer. Any impedance mismatch causes signal reflections at the mismatch point, wasting a portion of the received signal before it reaches the TV tuner. Quality indoor antennas include a properly designed balun that matches the antenna elements' native impedance (typically 300 ohms balanced) to the 75-ohm unbalanced coaxial standard.

VSWR — Voltage Standing Wave Ratio

VSWR is a dimensionless ratio that quantifies impedance matching quality across the antenna's operating frequency range. A VSWR of 1.0:1 represents a theoretically perfect impedance match with zero reflected power. For consumer indoor TV antennas, a VSWR of 2.0:1 or below is considered acceptable, and values consistently under 1.5:1 indicate excellent engineering. High VSWR at specific frequencies within the operating band means the antenna reflects rather than delivers signal on those channels — a common cause of situations where channel 7 comes in perfectly but channel 9, broadcasting from the same tower at similar power, is unwatchable.

Amplifier Noise Figure and Gain (Active Antennas Only)

When an indoor antenna includes a built-in amplifier, two specifications determine whether that amplifier helps or hurts reception. Amplifier gain — typically 10–30 dB for indoor models — sets how much the signal voltage is increased. Higher gain is not universally better: in strong-signal areas, 20–30 dB of gain can push the signal beyond the TV tuner's maximum input level, causing overload. Noise figure (NF) — ideally 2 dB or less for indoor antennas — measures how much electrical noise the amplifier adds to the signal. A low-noise amplifier preserves the original signal-to-noise ratio; a high-noise amplifier with 4–5 dB NF may degrade a marginal signal below the tuner's decoding threshold even while boosting its voltage. When comparing amplified indoor antennas, prioritize noise figure over gain: 15 dB of gain with a 1.5 dB noise figure consistently outperforms 28 dB of gain with a 4 dB noise figure in weak-signal conditions.

Coaxial Cable Type, Length, and Quality

The included coaxial cable on an indoor antenna directly affects system performance. Quality antennas ship with RG6 cable — the 18 AWG standard for digital TV — while budget antennas may include thinner RG174 cable that has substantially higher attenuation per foot. At UHF frequencies around 700 MHz, a 10-foot RG174 cable can lose 2–3 dB more signal than the same length of RG6. If the antenna has a permanently attached thin cable, its effective performance is degraded by the cable itself. Detachable coaxial cables are strongly preferable: they allow upgrading to a higher-quality or longer RG6 cable, and they enable adding an inline LTE/5G filter or connecting to existing home coaxial wiring without an adapter.

7. Indoor Antenna Amplifiers & Signal Boosters: When They Help and When They Hurt

Indoor TV antenna amplifiers — also marketed as signal boosters, preamplifiers, or antenna amplifiers — are the most misunderstood component in the over-the-air reception chain. Used under the right conditions, an amplifier can transform a marginal setup with few channels into a reliable multi-channel source. Used under the wrong conditions, that same amplifier can make reception worse than no amplifier at all. Understanding the physics of signal amplification is essential for indoor antenna success.

What an Indoor Antenna Amplifier Actually Does

An amplifier is an electronic circuit that increases the voltage amplitude of the RF signal captured by the antenna elements. If the antenna produces a signal of 100 microvolts at a particular frequency, a 20 dB amplifier boosts this to 1,000 microvolts — a tenfold voltage increase. The amplified signal then travels through the coaxial cable to the television's ATSC tuner with increased strength, helping it exceed the tuner's minimum decoding threshold even after cable losses.

Indoor antenna amplifiers are almost universally powered via USB — drawing 5 volts DC from a USB port on the television or from a separate USB wall adapter. The USB cable connects to the antenna housing and powers a small amplifier chip on the internal circuit board. Some antennas include this USB cable permanently attached; higher-quality models use a detachable USB cable. A few amplified antennas use a power inserter approach, where DC voltage is sent up the coaxial cable from a small indoor power supply, eliminating the separate USB cable run.

When an Amplifier Helps Indoor Reception

Amplification is genuinely beneficial when the received signal at the antenna's physical locations is real but too weak for the TV tuner to reliably decode. In this situation — most common at distances of 25 to 50 miles from broadcast towers, or when the antenna is positioned in a signal-challenged indoor locations where building penetration losses are significant — the amplifier raises the signal level above the noise floor, giving the tuner a clean enough signal to lock onto and decode.

Amplification is also valuable when a long coaxial cable — 25 feet or more — is required between the optimal antenna locations and the television. Coaxial cable attenuation increases with frequency; at 700 MHz (UHF), 50 feet of RG6 cable loses approximately 3 to 4 dB of signal. An amplifier at the antenna end of a long cable run compensates for this loss before it occurs, maintaining the signal-to-noise ratio that would otherwise be degraded by cable attenuation. This preamplification principle — amplify at the antenna, before the loss — is fundamental to all RF system design.

When an Amplifier Hurts Indoor Reception

In strong-signal areas — typically within 15 miles of broadcast towers — amplification is actively harmful. When the incoming signal is already strong, adding 20–30 dB of amplifier gain pushes the signal beyond the TV tuner's maximum input level. The tuner's sensitive front-end amplifier overloads and saturates, generating distortion products — harmonics and intermodulation — that can wipe out reception across multiple channels. Symptoms of tuner overload from over-amplification include: channels that were previously received perfectly becoming pixelated or disappearing entirely; channels appearing on incorrect virtual channel numbers; and reception quality that actually worsens when the antenna is moved to a better signal locations.

Amplification also degrades reception when the amplifier's noise figure is high relative to the signal quality. If the antenna captures a marginal signal at −75 dBm and the amplifier adds 4 dB of noise, the signal-to-noise ratio worsens by 4 dB — potentially pushing it below the tuner's decoding threshold entirely. A low-noise amplifier with a noise figure of 1.5 dB or less minimizes this signal quality degradation.

Most critically, amplification cannot help when there is genuinely no signal to amplify. If the indoor antenna's physical locations — behind a brick wall, deep in a basement, surrounded by metal shelving — blocks the broadcast signals entirely, an amplifier will only boost the random thermal noise floor, producing no usable picture regardless of its gain specification. The antenna must capture some real, albeit weak, signal for amplification to provide any benefit.

The Signal-to-Noise Ratio: What Actually Determines Indoor Reception Quality

Digital television reception is fundamentally about signal-to-noise ratio, not raw signal strength. A weak but clean signal with 20 dB SNR decodes perfectly, while a strong but noisy signal with only 12 dB SNR pixelates or fails entirely. An amplifier's noise figure directly subtracts from the system SNR — a preamplifier with 1 dB noise figure preserves nearly all of the original signal quality, while one with 4 dB noise figure wastes 4 dB of SNR, which may represent the entire margin between reliable and failed reception for a marginal channel.

8. Indoor Antenna Placement Guide: How to Get More Channels

Antenna placement is arguably more impactful than antenna selection for indoor TV reception. The same $25 flat-panel indoor antenna can deliver 50+ free HD channels in one spot and fewer than 10 just a few feet away. Indoor RF propagation is complex, often counterintuitive, and dominated by multipath reflections — signals bouncing off walls, ceilings, furniture, and appliances that sum together constructively at some points and cancel destructively at others. Understanding placement principles is the single most effective way to improve indoor antenna channel count and reception reliability without spending more money on equipment.

Height: The Number One Placement Factor

Every vertical foot of antenna height improves indoor reception because it reduces the amount of building material between the antenna and the broadcast towers. At floor level, signals pass through foundation walls, multiple interior walls, furniture, and appliances — each absorbance event costs several dB of signal strength. At ceiling height on an upper floor, the signal path is shorter and passes through fewer physical barriers. Placing an indoor antenna in an attic — the highest indoor point available in most homes — often rivals the reception quality of a rooftop outdoor antenna while remaining fully protected from weather. Shingle roofing and wood framing are relatively RF-transparent; the primary limitation is the coaxial cable run from attic to TV, which may be long enough to require amplification to compensate for cable losses.

If attic placement is not feasible, mount the antenna as high as practical on an upper-floor wall that faces the general direction of the broadcast towers. Moving an indoor antenna from a ground-floor TV stand to a second-floor bedroom wall commonly doubles the number of receivable channels — the combination of increased height and reduced material penetration is that significant.

Window Placement: The Benefits and the Low-E Glass Trap

Placing an indoor antenna in or directly adjacent to a window that faces the broadcast towers reduces signal attenuation by removing one or more walls from the signal path. Standard clear glass is largely transparent to RF energy, with reflection losses at the air-to-glass interface typically under 1 dB per surface.

The critical exception — and one of the most common causes of poor indoor antenna performance — is low-E (low-emissivity) energy-efficient window glass. These windows incorporate an invisible metallic oxide coating — typically compounds of tin, silver, or zinc — designed to reflect infrared heat and improve thermal insulation. This same metallic coating is also highly reflective across the entire television broadcast frequency spectrum, attenuating signals by 20–30 dB — effectively a complete block. Low-E windows have been standard in new residential construction across much of the United States and Canada since the early 2000s.

To identify low-E glass, hold a lighter or match flame near the glass surface and observe the reflection. Low-E glass typically produces one reflected flame image with a noticeably different color — often pinkish, purplish, or slightly iridescent — compared to the other reflected images. If uncertain, empirically test your windows: run a channel scan with the antenna in the window, then move it to a non-window wall on the same side of the house facing the towers and rescan. If the wall placement yields more channels, low-E coating is likely present and blocking the signals.

Aiming: Multi-Directional Does Not Mean Omnidirectional

Most indoor flat-panel antennas are marketed as multi-directional, but they are not truly omnidirectional — they receive better from certain angles. The broad flat face of a panel antenna receives best from the direction it faces — point it toward the broadcast towers for maximum gain. For rabbit ears dipole antennas, the broad side of the extended rods should be perpendicular to the tower direction (the rods themselves form a line pointing toward and away from the towers). For the UHF loop on a combined rabbit ears and loop antenna, the plane of the loop should face the towers.

Determine the correct compass direction to your local broadcast towers using the FCC DTV Reception Maps, AntennaWeb, or RabbitEars.info — all of which provide the magnetic azimuth bearing in degrees from your address to each tower. Use a smartphones compass app to aim the antenna accordingly. If your local towers are clustered within a 60-degree arc, aim the antenna at the center of that arc. If towers are spread across a wide angle — say from 90 degrees to 210 degrees — a panel antenna that receives from both front and back will cover both clusters. If towers are at widely divergent compass points, you may need to choose which cluster of stations is most important and aim accordingly.

The Channel Scan: Your Built-In Signal Strength Meter

Every digital television includes a channel scan function — typically found in the Settings or Setup menu under labels like "Channel," "Antenna," "Tuner," or "Broadcast." Running a channel scan instructs the TV to sequentially tune through every RF channel, measure the signal presence and quality on each, and memorize any channel that produces a decodable signal. Critically, the TV does not automatically detect new channels — it only knows about channels it successfully found during the most recent scan. After every single antenna position change, you must run a new channel scan to discover which channels are receivable at the new locations.

Many televisions also include a real-time signal strength or signal quality meter — often accessible by pressing an Info or Status button while watching a channel. This meter displays signal level in dB or as a percentage bar. Use this tool interactively: select a known channel, watch the signal meter, and slowly reposition the antenna while monitoring the meter's response. Lock in the position that produces the highest and most stable reading on your most important channels.

Systematic Placement Testing: The Only Reliable Method

The most effective indoor antenna placement strategy is systematic empirical testing rather than guesswork. Start at the highest feasible point in the home — an attic, second-floor room, or high shelf. Face the antenna toward the general tower direction as determined by the FCC maps. Run a channel scan, count the channels found, and note which specific stations are present or missing. Move the antenna approximately three feet in any direction and repeat. Continue testing until you have evalsuated four to six distinct positions within the available space.

Specific locationss worth testing in any room include: the wall nearest the towers, a corner where wall reflections can constructively sum, as close to the ceiling as mounting allows, and on a window (assuming non-low-E glass). One locations to absolutely avoid is directly behind the television — the TV is essentially a large metal box that blocks all signals arriving from the rear. The antenna must have a clear "view" toward the towers, even if that view passes through walls. The difference between the best and worst positions in the same room commonly yields 10 to 30 additional digital channels.

Coaxial Cable Management for Indoor Antennas

The coaxial cable connecting the antenna to the TV should be as short as possible while still reaching the optimal antenna locations. Every additional foot of cable introduces attenuation that disproportionately affects higher UHF frequencies. If your best antenna locations requires a 30-foot cable run, factor this into your antenna selection — an amplified model may be necessary to compensate for the cable loss. Avoid sharp bends, kinks, or tight coils in the coaxial cable; it is a precision impedance-controlled transmission line, and physical deformation alters its electrical characteristics, creating signal reflections. Route the coaxial cable at least six inches away from power cords and electrical devices to prevent capacitive coupling of 60 Hz AC hum or high-frequency switching noise from power supplies into the signal path.

9. Indoor Signal Interference: Troubleshooting Reception Problems

Indoor environments are filled with unintentional sources of radio frequency noise that directly compete with the weak television signals arriving from broadcast towers miles away. Identifying and mitigating these interference sources is often the difference between receiving zero usable channels and receiving dozens of clear digital stations with the same indoor antenna.

LED and Fluorescent Lighting — The Most Common Indoor Noise Source

LED light bulbs — particularly low-cost, unfiltered models — are prolific generators of broadband RF interference. The driver circuit inside an LED bulb switches current on and off at high frequencies to regulate brightness, producing electromagnetic harmonics that extend from a few megahertz well into the UHF television band. A single poorly filtered LED bulb in the same room as the indoor antenna can elevate the RF noise floor by 10 dB or more across a wide frequency range, effectively burying weak broadcast signals beneath locally generated noise.

Fluorescent tube fixtures with electronic ballasts and compact fluorescent lamps (CFLs) produce similar broadband noise signatures. For troubleshooting, turn off all lights in the room where the antenna operates, run a channel scan, and compare the results to a scan conducted with lights on. If channel count increases significantly with lights off, lighting interference is present. Solutions include replacing offending bulbs with RF-quiet LED models that incorporate adequate electromagnetic compatibility filtering, or physically distancing the antenna from light fixtures by at least six to eight feet.

Wi-Fi Routers, Wireless Devices, and Digital Electronics

Wi-Fi routers operating at 2.4 GHz and 5 GHz transmit at frequencies far above the television broadcast bands, so their intentional transmissions do not directly interfere with TV reception. However, a router's internal circuitry — particularly its switch-mode power supply and high-speed digital logic — can radiate unintended harmonics and broadband noise that fall within the VHF and UHF ranges. Budget routers with minimal shielding and filtering are the worst offenders. Similarly, cordless phoness, baby monitors, wireless speakers, Bluetooth transmitters, and any device containing an RF transmitter plus digital logic can contribute to the indoor noise environment. Keep the indoor antenna at least six feet from Wi-Fi routers and clusters of wireless devices. If a particular channel is persistently problematic, systematically power off nearby electronics one at a time while monitoring signal quality to identify the specific noise source.

Metal Objects, Appliances, and Furniture

Metal is an excellent reflector of RF energy. Large metal objects in the room — refrigerators, filing cabinets, metal-framed furniture, mirrors with metallic silver backing, exercise equipment, metal doors, radiators — reflect incoming television signals, creating additional multipath copies that arrive at different times and phases, confusing the digital tuner. A refrigerator positioned between the indoor antenna and the broadcast towers can reduce effective signal strength by 10–20 dB. Maintain at least three to six feet of clearance between the antenna and any large metal object, and ensure no major metallic obstruction sits in the direct line between the antenna and the general direction of the towers. Even a large framed mirror or a metal bookshelf on the wall can cause surprising signal degradation.

Switching Power Supply Noise from Consumer Electronics

Nearly every modern electronic device uses a switch-mode power supply for efficiency — computers, game consoles, streaming boxes, USB chargers, cable modems, and even the television itself. These power supplies generate high-frequency switching noise at tens to hundreds of kilohertz, with harmonics that extend into the megahertz range. This noise can radiate through the air to the antenna and can also couple onto the coaxial cable shield. The noise is often concentrated at specific harmonic frequencies, which explains why a user might find that certain channels are consistently unwatchable while immediately adjacent channels are perfect.

Ferrite cores — small clamp-on ferrite cylinders that snap around the coaxial cable near each end — suppress common-mode noise currents traveling on the cable shield. They are an inexpensive ($2–$5 each), non-invasive noise reduction technique that can yield measurable improvements. Keep all coaxial cable runs at least six inches away from power cords, AC adapters, and power strips to minimize capacitive coupling of power supply noise.

4G and 5G Cellular Interference and LTE Filters

Cellular networks in the United States operate in licensed frequency bands that begin immediately above the UHF television band — at 698 MHz and extending upward. If a cell tower is located within approximately a quarter mile of your home, strong LTE or 5G downlink signals can enter the indoor antenna system even though they are at frequencies the antenna is not designed to receive. These strong out-of-band signals can overload the TV tuner's sensitive front-end low-noise amplifier, causing reception degradation across multiple channels — particularly the higher UHF channels closest to the cellular bands.

The solution is an inline LTE/5G filter — a small cylindrical device approximately 2–4 inches long with an F-connector on each end, installed between the antenna output and the coaxial cable. The filter passes television broadcast frequencies (54–698 MHz) with minimal insertion loss while strongly attenuating cellular frequencies above 698 MHz. These filters are inexpensive ($5–$15) and highly effective. If a cell tower is visible from your home or within a quarter mile, an LTE/5G filter is a worthwhile addition regardless of whether you are currently experiencing visible interference — the tuner overload may be subtle, manifesting as fewer channels rather than obvious distortion on channels you already receive.

Building Construction Materials and RF Attenuation

Building materials vary enormously in their RF transparency. Wood-frame construction with vinyl or wood siding is the most indoor-antenna-friendly — each wall attenuates signals by roughly 2–6 dB. Brick veneer over wood framing adds an additional 4–8 dB per wall surface. Solid brick or concrete block construction can attenuate 8–15 dB per wall. The worst-case scenario for indoor reception is stucco over metal lath — common in the southwestern US and Florida — where the metal mesh essentially forms a partial Faraday cage, attenuating signals by 15–30 dB or more. Aluminum or vinyl siding with a metallic foil backing creates a similar shielding effect. Radiant barrier roof sheathing — foil-faced plywood used in hot climates — blocks signals from above, making attic antenna placement ineffective in those homes. If testing reveals that building materials are the limiting factor, relocating the indoor antenna to a window with non-low-E glass is the most effective response, as it bypasses the wall material entirely.

10. Indoor Antenna Range: What Reception Distance to Realistically Expect

Indoor TV antenna marketing routinely claims reception ranges of "150 miles," "500 miles," or even "1000+ miles." These claims violate fundamental physics. The curvature of the Earth creates a radio horizon that limits terrestrial television signal propagation to approximately 70 miles under ideal conditions — and that theoretical maximum requires a flat-earth path, a tall broadcast tower, high transmitter power, and a high-gain outdoor antenna mounted well above the roofline. An indoor antenna, constrained by its compact physical size, limited mounting height, and the unavoidable signal attenuation from building materials, has substantially less practical range than an outdoor antenna at the same locations.

Realistic Indoor Antenna Range by Distance from Broadcast Towers

0 to 15 miles — Excellent indoor reception. A basic $15–$25 passive indoor antenna — flat-panel, rabbit ears, or simple loop design — reliably receives all available strong-signal local channels, including both UHF and VHF stations (the latter via rabbit ears). Amplification is unnecessary and, if applied, risks tuner overload. Most urban and close-in suburban locationss fall into this category.

15 to 30 miles — Good indoor reception with proper setup. An amplified indoor antenna or a carefully placed passive dipole antenna delivers most available channels. Flat-panel antennas work well for UHF stations but may begin to struggle with VHF channels at the upper end of this range. Attic or upper-floor window placement significantly improves results. Multiple placement tests are recommended.

30 to 50 miles — Challenging indoor reception. Reception at these distances requires an amplified indoor antenna with low noise figure placed at the highest available indoor locations — ideally an attic, a second-story window facing the towers, or a high wall mount. UHF stations are often receivable with careful placement; VHF reception beyond 40 miles is unlikely with nearly all indoor antenna designs. Results vary significantly by room, by floor, by season (foliage affects UHF), and by building construction. Multiple systematic placement tests across different rooms are essential.

Beyond 50 miles — Indoor reception generally not reliable. The combination of free-space path loss over distance plus building penetration loss pushes most signals below consumer TV tuner decoding thresholds. Even high-gain amplified indoor antennas placed in optimal attic locationss struggle at these ranges. For reliable OTA reception beyond 50 miles, an outdoor roof-mounted antenna is the appropriate engineering solution. No indoor antenna, regardless of marketing claims, can consistently overcome the physics of path loss at extended distances.

The Digital Cliff Effect: Why Signal Quality Matters More Than Strength

Digital ATSC television reception exhibits a distinctive "cliff effect" characteristic. Unlike analog TV signals that degrade gradually — producing increasing snow, ghosting, and static as signal strength weakens — digital signals remain absolutely perfect, pixel-for-pixel and frame-for-frame, until the received signal-to-noise ratio falls below the tuner's minimum decoding threshold. At that threshold, the picture abruptly breaks into large blocky artifacts (macroblocking), freezes, or disappears entirely. There is no in-between state.

This cliff effect has important practical implications for indoor antenna placement. When reception is marginal — the signal hovering just barely above the tuner's threshold — the picture may be flawless for minutes at a time and then suddenly break up for a few seconds before recovering. Any momentary reduction in signal — a truck passing outside, a person walking through the room, a gust of wind moving a tree branch — pushes it over the cliff. Adding 3–6 dB of clean gain via a low-noise preamplifier can provide sufficient margin to pull the signal permanently above the cliff edge, transforming intermittently pixelated reception into stable, reliable viewing.

Using the FCC DTV Reception Maps for Realistic Expectations

The best free predictor of indoor antenna performance at any specific address is the FCC DTV Reception Maps tool. Enter your exact street address, and the tool returns a detailed list of every broadcast station predicted to be receivable, along with each station's signal strength classification — Strong, Moderate, Weak, or No Signal — and the precise compass bearing from your home to each tower. Stations marked "Strong" are very likely receivable with a basic indoor antenna; "Moderate" stations may or may not be receivable depending on building construction, antenna placement, and local interference; "Weak" stations are unlikely with indoor equipment and generally require an outdoor antenna for reliable reception. This free, government-maintained tool provides a far more useful and honest baseline expectation than any manufacturer's marketing mileage claims.

11. How to Connect One Indoor Antenna to Multiple TVs

A single indoor antenna can serve multiple televisions throughout the home, provided the signal strength from the antenna is sufficient to tolerate the losses introduced by signal splitting. The standard approach uses a coaxial splitter connected to the antenna's output cable, with individual coaxial cables running from each splitter output port to each television's antenna input.

The primary challenge in multi-TV distribution is signal loss through the splitter. A 2-way coaxial splitter reduces signal strength by approximately 3.5 dB on each output. A 3-way splitter is typically unbalanced — one output loses roughly 5.5 dB while the other two lose approximately 7 dB each. A 4-way splitter loses roughly 7–8 dB on every output port. Each additional barrel connector, wall plate, or adapter in the signal path adds approximately 0.5–1 dB of insertion loss. These losses add up quickly: an indoor antenna feeding a 4-way splitter through two wall plates and 50 feet of RG6 cable is delivering a signal approximately 14–16 dB weaker to each TV than what the antenna captured.

If the raw signal from the indoor antenna is strong — typical within 15 miles of towers — a passive splitter may deliver acceptable results to multiple TVs. For marginal signals, a distribution amplifier replaces the passive splitter. Unlike a preamplifier (mounted at the antenna to overcome cable loss), a distribution amplifier is installed at the central distribution point after the main cable run from the antenna. It amplifies the signal to compensate precisely for the splitter losses, delivering approximately the same signal level to each TV that a single TV would receive directly from the antenna.

An increasingly popular alternative to coaxial distribution is a network-connected OTA tuner device with a built-in indoor antenna. These devices receive broadcast signals, tune to a selected channel, encode the video as an IP stream, and transmit it over the home Wi-Fi network to any connected device — smart TVs, smartphoness, tablets, laptops, and streaming boxes. This approach eliminates coaxial cable runs entirely and supports simultaneous viewing of different channels on different devices, as network tuners typically include two or four independent ATSC tuners. The antenna and tuner can be placed at the optimal indoor reception locations in the home, completely independent of where the televisions are located.

12. Step-by-Step Indoor Antenna Setup Instructions

Setting up an indoor digital TV antenna is one of the simplest consumer electronics installations. The entire process typically takes 5–15 minutes and requires no tools, no drilling, and no technical expertise. Follow these steps for the best results.

Step 1: Unbox and Assemble the Antenna

Remove the indoor antenna and all included accessories from the packaging. If the antenna is a flat-panel design, attach the coaxial cable to the antenna's F-connector port (if detachable — many are pre-attached). If the antenna is amplified, connect the USB power cable to the antenna. If the antenna includes a stand, attach it now. Do not peel off any adhesive backing at this stage — you will need to test multiple positions before permanently mounting the antenna.

Step 2: Connect the Antenna to Your Television

Screw the coaxial cable's F-connector onto the television's antenna input port — labeled "ANT IN," "RF IN," or "AIR" on the back or side of the TV. Tighten the connector finger-tight; do not use tools as over-tightening can damage the connector. If the antenna is amplified, plug the USB power cable into an available USB port on the television or into the included USB wall adapter. Note that some televisions turn off USB power when in standby mode — if your amplified antenna stops working when the TV is turned off overnight, use a USB wall adapter plugged into a standard outlet instead.

Step 3: Set the TV Input to Antenna Mode

Using the TV remote, navigate to the input or source menu and select "TV," "Antenna," or "Air" — not "Cable" or "HDMI." The TV must be set to antenna mode to use its internal ATSC tuner. Some TVs label antenna mode as "DTV" or "ATSC." If your TV has both "Antenna" and "Cable" options in its tuner setup, select "Antenna."

Step 4: Position the Antenna and Run a Channel Scan

Place the antenna at the initial test position — ideally as high as possible on a wall or window facing the general direction of your local broadcast towers (determined using the FCC DTV Reception Maps). Go to the TV's Settings or Setup menu, find the "Channel" or "Tuner" section, and select "Auto Scan," "Channel Scan," "Auto Program," or equivalent. The TV will sweep through all RF channels — this process typically takes 3–10 minutes. When the scan completes, note the total number of channels found and which specific stations are present or missing.

Step 5: Optimize Position Through Multiple Scans

Move the antenna to a different position — higher, lower, left, right, different wall, near a window, in a corner — and run a new channel scan each time. Test at least four to six positions. Use the TV's built-in signal strength meter (usually under Info or Status while viewing a channel) for real-time feedback as you fine-tune the final position. Once you identify the position that yields the most channels with stable reception, permanently mount or place the antenna at that locations.

Step 6: Secure the Cable and Finalize Setup

Route the coaxial cable neatly along baseboards or behind furniture using cable clips or channels if desired. Keep the coaxial cable separated from power cords by at least six inches. If using adhesive to mount the antenna to a wall or window, apply it only after confirming this is the optimal position from your testing.

13. Frequently Asked Questions About Indoor TV Antennas

14. Glossary of Indoor Antenna Terms and Definitions

• Active Antenna (Amplified Indoor Antenna)

• An indoor TV antenna with a built-in electronic amplifier that boosts received signal strength before it travels through the coaxial cable. Requires power via USB or a separate power inserter. Best for moderate-signal areas 25–50 miles from towers.

• ATSC (Advanced Television Systems Committee)

• The digital television broadcast standard used in the United States, Canada, Mexico, and South Korea. Replaced the analog NTSC standard during the 2009 DTV transition. Sometimes called ATSC 1.0 to distinguish it from ATSC 3.0.

• ATSC 3.0 (NextGen TV)

• The next-generation digital broadcast standard supporting 4K UHD resolution with HDR, immersive object-based audio, IP-based content delivery, advanced emergency alerts, and mobiles device reception. Requires an ATSC 3.0-compatible tuner — built into many 2023+ televisions or available as an external set-top box.

• Attenuation

• The reduction in signal strength as RF energy passes through any medium — coaxial cable, walls, windows, foliage, or free space. Measured in decibels (dB). Higher attenuation means greater signal loss.

• Balun (Balanced-to-Unbalanced Transformer)

• A passive impedance-matching device that converts the antenna elements' naturally balanced 300-ohm output to the 75-ohm unbalanced impedance used by standard coaxial cable. Present in every quality indoor antenna housing.

• Channel Scan (Auto Scan / Auto Program)

• The process by which a television tuner sequentially sweeps every RF channel, measures signal presence and quality, and stores decodable channels in memory. Must be re-run after any antenna position change — TVs do not auto-detect new channels.

• Cliff Effect

• The characteristic of digital ATSC television where picture quality remains perfect until signal-to-noise ratio drops below a minimum decoding threshold, at which point the picture abruptly breaks up into macroblocks or disappears entirely. Unlike analog TV, which degrades gradually into snow and static.

• Coaxial Cable (Coax)

• A shielded RF transmission line with a center conductor, dielectric insulation layer, braided metallic shield, and protective outer jacket. The standard cable for connecting TV antennas to televisions. RG6 is the standard type for digital TV.

• dBi (Decibels Relative to Isotropic)

• A unit of antenna gain comparing the antenna's directional sensitivity to a theoretical isotropic radiator that distributes energy equally in all directions. Higher dBi = more directional sensitivity.

• dBm (Decibels Relative to 1 Milliwatt)

• An absolute unit of RF signal power. Consumer TV tuners typically operate from approximately −85 dBm (weakest decodable) to −5 dBm (overload threshold). Negative values represent signals weaker than 1 milliwatt.

• Dipole Antenna (Rabbit Ears)

• A fundamental antenna design using two conductive elements. Classic "rabbit ears" are adjustable dipole antennas with telescopic metal rods, excellent for VHF reception. The rod length can be tuned to approximately one-quarter wavelength of the target channel.

• Distribution Amplifier

• An indoor amplifier installed at the central coaxial splitter point to compensate for splitter losses when distributing one antenna signal to multiple televisions. Different from a preamplifier, which mounts at the antenna.

• DTV (Digital Television)

• Television broadcasting using digital modulation and compression for both video and audio, as opposed to the legacy analog NTSC transmission standard retired in 2009.

• F-Connector

• The standard threaded coaxial connector used universally for television antenna and cable connections. Designed for 75-ohm impedance systems. Found on the back of every television as the "ANT IN" or "RF IN" port.

• Flat-Panel Indoor Antenna (Patch Antenna)

• A thin, rectangular indoor antenna with printed or embedded antenna elements on a circuit board or flexible substrate. Multi-directional, excellent for UHF, limited VHF capability. The most common indoor antenna form factor.

• Gain (Antenna)

• A measure of how effectively an antenna concentrates received RF energy in a particular direction compared to a reference antenna. Specified in dBi or dBd. Higher gain = stronger output but typically narrower reception pattern.

• Gain (Amplifier)

• The signal voltage increase provided by an electronic amplifier, measured in dB. Indoor antenna amplifiers typically provide 10–30 dB of gain. A 20 dB amplifier increases signal voltage tenfold.

• Impedance

• The electrical characteristic of an RF system determining power transfer efficiency, measured in ohms (Ω). The entire television broadcast reception chain operates at 75 ohms as an industry standard.

• Low-E Glass (Low-Emissivity Glass)

• Energy-efficient window glass with a microscopically thin metallic oxide coating that reflects infrared heat. Highly reflective across the TV broadcast spectrum — can attenuate indoor antenna signals by 20–30 dB, effectively blocking reception.

• LTE / 5G Filter

• An inline band-pass filter that passes television broadcast frequencies (54–698 MHz) while blocking cellular network signals above 698 MHz. Prevents TV tuner overload from nearby cell towers. Increasingly integrated directly into amplified indoor antennas.

• Multipath Interference

• A reception condition where the same broadcast signal reaches the indoor antenna via multiple paths — the direct line-of-sight plus reflections off walls, furniture, and buildings. The time-delayed copies cause errors that digital tuners struggle to decode.

• Noise Figure (NF)

• A specification of amplifier quality measured in dB. Quantifies how much electrical noise the amplifier adds to the signal. Lower noise figure = cleaner amplification. Quality indoor antenna amplifiers have noise figures of 2 dB or less.

• OTA (Over-the-Air Television)

• Free television broadcasts received via an antenna directly from local transmission towers. No cable, satellite, or internet subscription required. The original method of television distribution.

• Passive Antenna (Non-Amplified Indoor Antenna)

• An indoor antenna without electronic amplification. The captured signal passes directly to the coaxial output with no modification, no power required, and zero added noise. Best for strong-signal areas within 20–30 miles of towers.

• Preamplifier (Mast-Mounted Amplifier)

• An amplifier installed as close to the antenna as physically possible — ideally at the antenna itself — to boost the signal before any cable loss occurs. Maximizes the overall system signal-to-noise ratio. For indoor antennas, this is the built-in amplifier circuit.

• RG6 Coaxial Cable

• The standard 75-ohm cable type for digital TV antenna and satellite installations. Features an 18 AWG center conductor with dual or quad-layer shielding. Significantly lower loss than thinner RG59 or RG174 cable at UHF frequencies.

• RF (Radio Frequency)

• Electromagnetic energy at frequencies used for wireless communication. Television broadcasting operates in the VHF (54–216 MHz) and UHF (470–698 MHz) RF bands.

• Signal-to-Noise Ratio (SNR)

• The ratio of desired signal power to background noise power, measured in dB. Digital TV tuners require a minimum SNR — typically around 15 dB — for reliable decoding. This is the metric that ultimately determines whether a channel is watchable.

• Tuner (ATSC Tuner)

• The electronic circuit inside every television that selects a specific RF channel, demodulates the ATSC digital modulation, error-corrects the data stream, and extracts the compressed video and audio for display.

• UHF (Ultra High Frequency)

• The television broadcast frequency band from 470–698 MHz (post FCC repack), used for channels 14–51. Shorter wavelengths (16–25 inches) enable compact indoor antenna designs but are more easily blocked by walls and obstacles than VHF signals.

• USB-Powered Amplifier

• An indoor antenna amplifier that draws 5V DC operating power from a USB port on the television or a separate USB wall adapter. The standard power delivery method for amplified indoor antennas.

• VHF (Very High Frequency)

• The television broadcast frequency band from 54–216 MHz, used for channels 2–6 (Low VHF) and 7–13 (High VHF). Longer wavelengths (5–18 feet) penetrate buildings better than UHF but require physically larger antenna elements — challenging for compact indoor designs.

• VSWR (Voltage Standing Wave Ratio)

• A measurement of antenna impedance matching quality across the operating frequency band, expressed as a ratio (e.g., 1.5:1). Lower VSWR = better impedance match = less signal reflected at the antenna connector. Values of 2.0:1 or below are acceptable.
