1. What Is a Digital tv antenna?

A digital TV Antenna is a device designed to receive over-the-air (OTA) digital television broadcast signals transmitted by local TV stations. Unlike analog Antennas of the past, modern digital TV Antennas are optimized for the ATSC (Advanced Television Systems Committee) digital broadcast standard used in North America — including the next-generation ATSC 3.0 (also known as NextGen TV) — as well as DVB-T/T2 (Europe, Australia) and ISDB-T (Japan, Brazil).

Digital TV Antennas receive free, uncompressed HD broadcasts from local networks such as ABC, CBS, NBC, FOX, PBS, and many sub-channels — without requiring a cable or satellite subscription. The signal is digital, which means picture quality is either perfect (crystal-clear 1080p, 4K where available) or absent — there is no "snowy" picture as with analog signals.

2. How Digital TV Antennas Work

Digital television signals are broadcast as electromagnetic waves from transmission towers operated by local TV stations. A TV antenna captures these waves through its conductive elements (metal rods, loops, or panels), which resonate at specific frequencies matching the broadcast channels.

The Signal Path

1. Broadcast Tower transmits RF signals in the VHF (54–216 MHz) and UHF (470–698 MHz post-repack) bands.

2. Antenna Elements capture the electromagnetic energy and convert it into a tiny electrical current.

3. Matching Transformer / Balun matches the antenna's impedance (typically 300 Ω) to the coaxial cable (75 Ω) for efficient signal transfer.

4. Coaxial Cable carries the RF signal from the antenna to the TV with minimal loss.

5. TV Tuner demodulates the ATSC/DVB-T signal and extracts the digital video/audio stream.

Frequency Bands Explained

TV broadcasts occupy three distinct frequency bands, each with its own physical characteristics and reception behavior.

Low VHF (54–88 MHz, channels 2–6) has the longest wavelengths, ranging from roughly 3.4 to 5.6 meters. Signals in this band travel the farthest and bend around obstacles most easily, but they require the largest antenna elements. Fewer stations use Low VHF today, as most have migrated to UHF following the FCC spectrum repack.

High VHF (174–216 MHz, channels 7–13) uses wavelengths of about 1.4 to 1.7 meters. This band offers moderate range and is still actively used by many major network affiliates — stations like ABC, CBS, NBC, and FOX often broadcast on High VHF in certain markets. Indoor flat-panel antennas frequently struggle with High VHF because their compact elements are too short to efficiently capture these longer wavelengths.

UHF (470–698 MHz, channels 14–51) has the shortest wavelengths, ranging from about 0.43 to 0.64 meters. This is the most commonly used band today. UHF signals require smaller antenna elements, making Compact Indoor Antennas practical. However, UHF signals are more easily blocked by buildings, trees, and terrain than VHF. Post FCC spectrum repack, channels 38–51 continue to be transitioned, so the exact UHF channel range available at any given locations may vary.

3. Types of TV Antennas

3.1 Classification by Installation locations

Indoor TV Antennas are compact devices — typically 6 to 18 inches in size — designed for placement on a desk, shelf, wall, or window. They work best in urban and suburban areas within 15 to 50 miles of broadcast towers where signal strength is strong. Indoor antennas are ideal for apartment dwellers, renters, and anyone seeking a simple plug-and-play setup with no outdoor mounting required. They connect directly to the TV via a short coaxial cable and often draw amplifier power from a USB port on the television.

Outdoor TV antennas are larger units — ranging from 2 to 12 feet — mounted on rooftops, masts, or exterior walls. They are designed for longer-range reception, typically 40 to 80 miles or more depending on terrain and tower height. Outdoor antennas are the go-to choice for rural areas, weak-signal zones, and multi-story homes where indoor reception is unreliable. They are built with weatherproof materials rated IPX4 or higher, with UV-resistant housings that withstand years of sun, rain, and wind exposure.

Attic TV antennas represent a middle ground: medium-sized (1 to 3 feet), installed in the attic space where they are protected from weather while gaining elevation over indoor placement. They typically achieve reception ranges of 25 to 60 miles, making them a practical compromise for suburban homes where an outdoor mount is undesirable due to HOA rules or aesthetic concerns.

3.2 Classification by Radiation Pattern

Omnidirectional antennas receive signals equally from all 360 degrees. They typically provide a modest gain of 2 to 5 dBi and require no aiming — simply place them and scan for channels. Omni antennas are the best choice when broadcast towers are scattered in multiple directions around your locations, or when you want the simplest possible setup without worrying about antenna orientation.

Directional (unidirectional) antennas focus reception into a narrow beam of approximately 30 to 60 degrees, achieving high gain figures of 6 to 15 dBi or more. This focused sensitivity makes them the preferred option for long-range fringe reception where all local towers are clustered in one direction. Directional antennas also reject signals arriving from the sides and rear, which reduces multipath interference — a significant advantage in urban environments where signal reflections off buildings can cause reception problems.

Multi-directional antennas bridge the gap between omni and directional types. They typically receive from both the front and back (bidirectional pattern) or across a wider angle, with gain figures around 3 to 8 dBi. Most indoor flat-panel antennas use a multi-directional design, offering good coverage without requiring precise aiming.

3.3 Classification by Element Design

Dipole antennas (commonly known as "rabbit ears") use two telescopic metal rods that can be extended and angled. They are primarily optimized for VHF reception — channels 2 through 13 — and are one of the oldest and most recognizable antenna designs still in use. Their adjustable length allows users to tune the rods to approximately one-quarter of the target channel's wavelength for optimal reception.

Loop antennas use a circular or rectangular conductive loop element. They are naturally suited for UHF reception and are often combined with dipole elements in a single housing to cover both VHF and UHF bands. The classic combination of a loop (UHF) plus rabbit ears (VHF) remains effective for many indoor setups.

Flat-panel or patch antennas are thin, rectangular panels that embed antenna elements within a slim plastic housing — typically less than half an inch thick. These are the most common indoor antenna design today. They provide multi-directional UHF reception with limited VHF capability, and their low-profile appearance blends easily into modern living spaces. Many include a built-in amplifier powered via USB.

Yagi-Uda antennas are the classic rooftop design: multiple parallel metal elements (a driven element, reflector, and several directors) arranged along a central boom. They are highly directional with excellent gain and front-to-back ratio. A well-designed Yagi Antenna remains the benchmark for Long-Range Outdoor TV Reception.

Log-periodic antennas look similar to Yagi designs but use a different element arrangement that provides consistent gain and impedance across a much wider bandwidth. They perform well across both VHF and UHF frequencies simultaneously, making them a versatile outdoor choice for markets where channels are spread across both bands.

Bowtie or grid antennas use figure-8 or grid-shaped conductive elements. They deliver outstanding UHF performance and are frequently configured in multi-bay arrays — stacking multiple bowtie sections vertically — to increase gain for deep-fringe reception. Many professional-grade outdoor UHF arrays use this design.

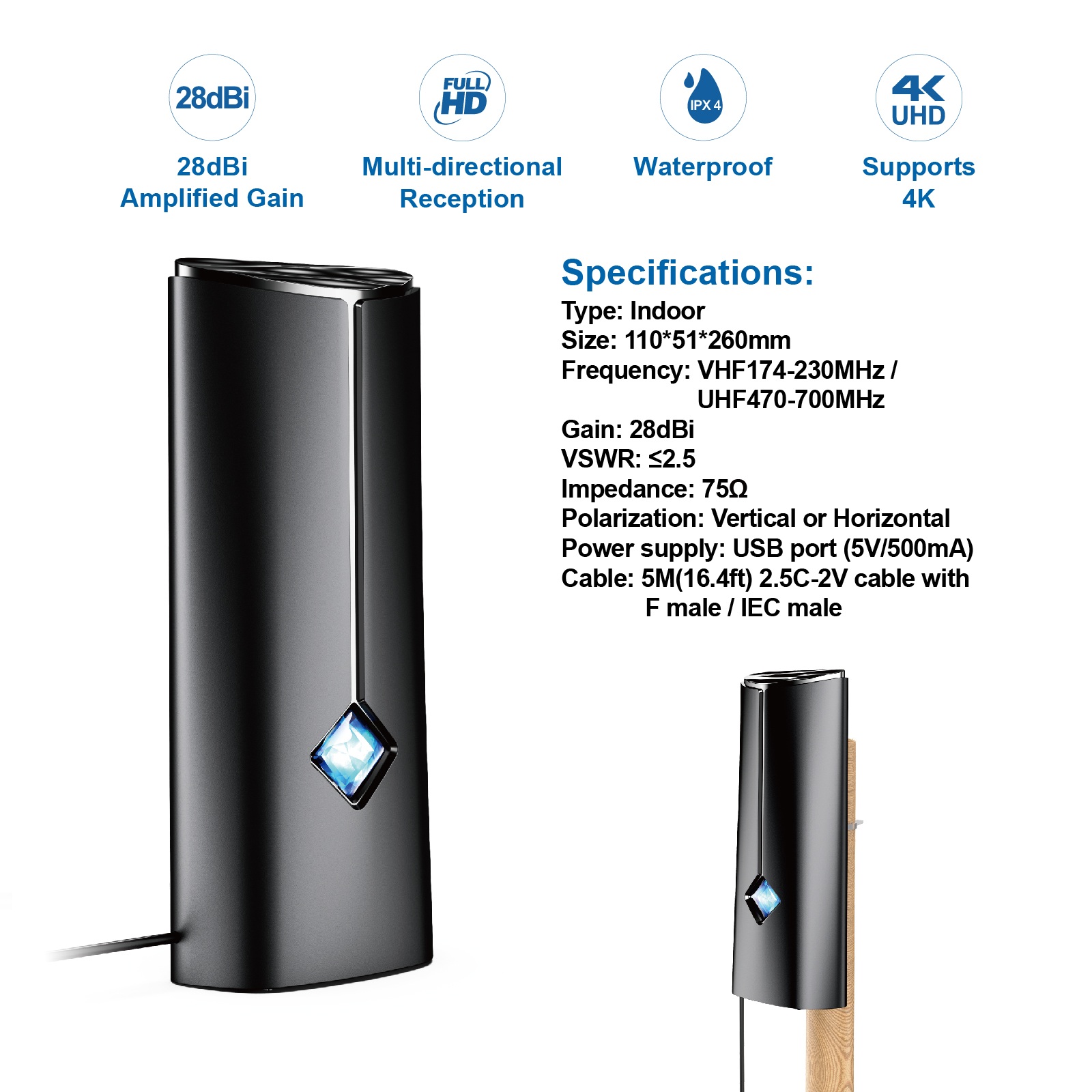

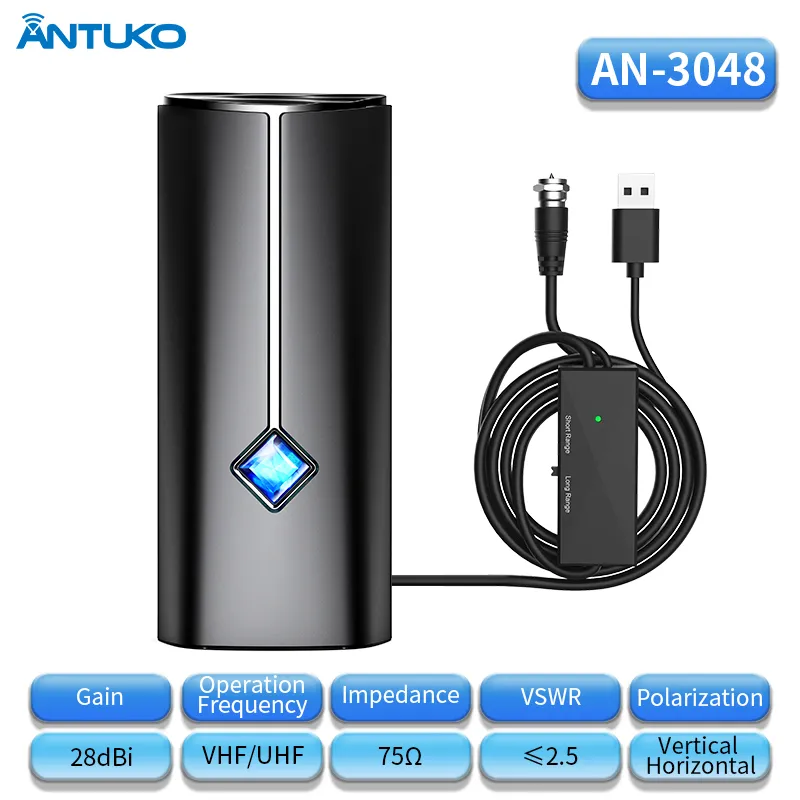

4. Key Technical Specifications

When evalsuating a digital TV antenna, the following technical parameters collectively define its real-world performance. Understanding these specifications helps in making informed comparisons between different antenna models.

Frequency Range

Measured in megahertz (MHz), the frequency range defines which broadcast channels the antenna can physically receive. Some antennas are UHF-only (470–698 MHz), while full-band antennas cover both VHF (54–216 MHz) and UHF. If any local stations in your area broadcast on VHF — which many major network affiliates do — a UHF-only antenna will miss those channels entirely. Always verify the broadcast frequencies of your local stations before selecting an antenna.

Gain (dBi or dBd)

Gain is arguably the single most important antenna specification. It measures how much the antenna amplifies incoming signals relative to a theoretical reference. Indoor antennas typically achieve 2 to 8 dBi of gain, while outdoor models range from 6 to 18 dBi. Higher gain produces stronger signal output, but it comes with a trade-off: higher-gain antennas are more directional, meaning they must be aimed more precisely.

Gain is specified in either dBi (decibels relative to an isotropic radiator) or dBd (decibels relative to a half-wave dipole). The conversion between them is straightforward: dBi equals dBd plus 2.15. A 5 dBd antenna is equivalent to roughly 7.15 dBi. Always note which unit is being used — a 10 dBi antenna and a 10 dBd antenna are very different performers.

Impedance (Ω)

The industry standard for TV antenna systems is 75 ohms. Every component in the signal chain — antenna, coaxial cable, splitters, amplifiers, and the TV tuner input — must match this impedance. Mismatched impedance causes signal reflections, which appear as increased VSWR and effectively waste a portion of the received signal before it reaches the TV.

VSWR (Voltage Standing Wave Ratio)

VSWR measures how well the antenna's impedance matches the 75-ohm system. It is expressed as a ratio where 1.0:1 represents a perfect match. For TV antennas, a VSWR of 2.0:1 or lower is acceptable, while values under 1.5:1 indicate excellent impedance matching. A high VSWR means more signal is reflected back at the antenna connection rather than flowing forward to the TV, reducing effective reception.

Beamwidth

Measured in degrees, beamwidth describes the angular width of the antenna's main reception lobe — the direction from which it captures signals most effectively. Directional antennas have narrow beamwidths of 30 to 60 degrees, requiring careful aiming. Omnidirectional antennas, by definition, have a 360-degree beamwidth and need no directional alignment.

Front-to-Back Ratio

Expressed in decibels (dB), the front-to-back ratio indicates how much better the antenna receives signals from the front compared to the rear. Values typically range from 10 to 25 dB. A high front-to-back ratio means the antenna strongly rejects signals arriving from behind. This is especially important in urban environments, where multipath reflections from buildings behind the antenna can corrupt the direct signal from the tower in front.

Polarization

TV broadcast signals in North America use horizontal polarization — meaning the electric field of the radio wave oscillates horizontally. The antenna's active elements must be oriented horizontally (parallel to the ground) to match. Vertically mounting a horizontally-polarized antenna can reduce received signal strength by 10 to 20 dB.

Noise Figure (Amplifier)

This specification applies only to amplified (active) antennas. Measured in dB, the noise figure represents how much electrical noise the amplifier introduces into the signal chain. Low-noise amplifiers have noise figures of 2 dB or less. Every decibel of noise figure improvement directly translates to a better signal-to-noise ratio at the TV tuner.

Return Loss

Measured in dB, return loss is another way of expressing impedance matching — how much signal power is reflected back due to mismatch. A return loss of 10 dB or higher is considered good, meaning less than 10% of the signal is reflected. Higher values indicate better matching.

Understanding Gain in Practice

Different gain levels suit different reception scenarioses. Low-gain antennas (2–5 dBi) provide a broad, forgiving reception pattern — ideal for urban areas with strong signals arriving from multiple tower directions. They are easy to place and do not require precise aiming. Medium-gain antennas (6–10 dBi) strike a good balance for suburban settings with moderate directionality. High-gain antennas (11–18+ dBi) are highly directional tools for rural fringe reception where all towers are concentrated in one compass direction. Their narrow beamwidth makes precise aiming critical — a few degrees off can mean the difference between perfect reception and no signal.

5. TV Antenna Amplifiers & Signal Boosters

A TV antenna amplifier (also called a signal booster or preamplifier) is an electronic device that increases the strength of the RF signal captured by the antenna before it travels through the coaxial cable to the TV.

How an Amplifier Works

The amplifier is installed as close to the antenna as physically possible — ideally mounted directly on the antenna mast. It takes the weak electrical signal from the antenna elements and increases its power by a fixed amount, typically 10 to 30 dB of gain. This boosted signal then travels down the coaxial cable with enough strength to overcome the cable's natural attenuation. Power for the amplifier is delivered through the same coaxial cable using a power inserter connected indoors, or via a USB connection to the television.

Key Amplifier Specifications Explained

Gain (10–30 dB) determines how much the amplifier boosts the signal. Higher gain helps compensate for longer cable runs and weaker incoming signals. However, too much gain can overload the TV tuner — if the amplified signal exceeds roughly −5 dBm, distortion and channel dropouts can occur. The ideal gain level matches your specific installation's cable length and signal conditions.

Noise Figure (NF, 1–3 dB) is the most critical amplifier specification. It measures how much electrical noise the amplifier adds to the signal. A low noise figure of 2 dB or under means the amplifier introduces minimal additional noise, preserving the signal-to-noise ratio. Every 1 dB of noise figure improvement directly enhances the tuner's ability to decode marginal signals. When selecting an amplifier for weak-signal areas, prioritize noise figure over gain.

Frequency Range must cover the full VHF plus UHF television band — 54 to 698 MHz or wider. Some amplifiers are UHF-only and will attenuate or block VHF channels entirely. Verify that the amplifier's specified passband matches the channels you need to receive.

Maximum Output Level (typically +15 to +25 dBmV) is the strongest signal the amplifier can produce before distorting. Exceeding this level causes signal clipping, which creates harmonics and intermodulation products that can interfere with reception across multiple channels.

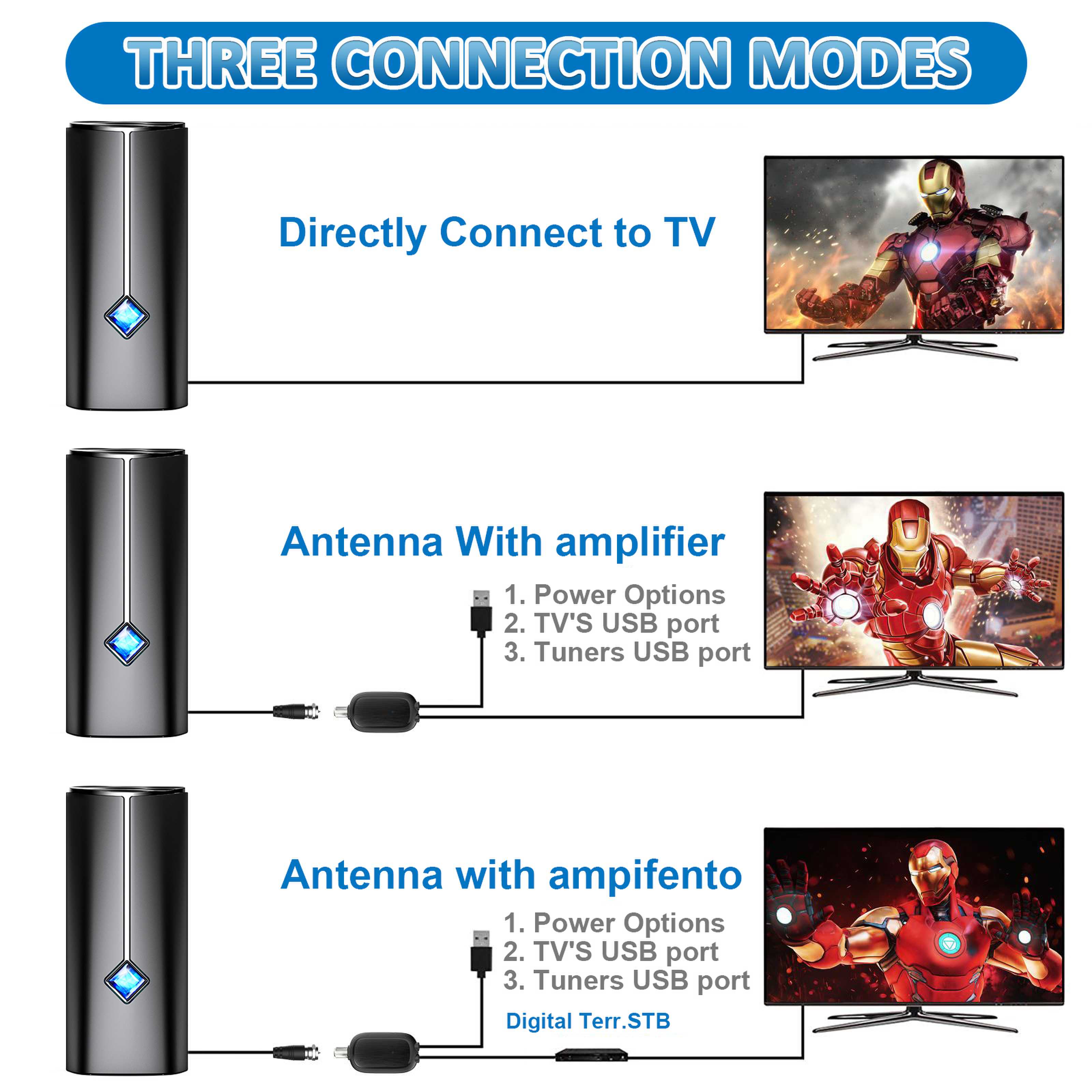

Passive vs. Active (Amplified) Antennas

A passive antenna contains no electronic amplification. It requires no power source, adds zero noise to the signal, and cannot overload the TV tuner. Passive antennas are the best choice in strong-signal areas — typically within 30 miles of broadcast towers — where the naturally received signal is already sufficient for reliable decoding.

An active (amplified) antenna includes a built-in or inline amplifier that requires power via USB or a wall adapter. The amplifier adds 1 to 3 dB of noise to the signal chain but compensates with 10 to 30 dB of gain. Active antennas are designed for weak-signal areas 30 to 80 miles from towers, and for installations with long coaxial cable runs of 50 to 150 feet where cable attenuation would otherwise degrade the signal below the tuner's threshold.

The key trade-off is that an active antenna can overload a TV tuner if the incoming signal is already strong. In such cases, the amplifier should be bypassed or an attenuator added to reduce the signal level. Conversely, a passive antenna in a weak-signal area will produce marginal reception that an amplifier could have made reliable.

6. Indoor vs. Outdoor Antennas — Full Comparison

Reception Range

Indoor antennas are designed for short to medium range — typically 15 to 50 miles depending on terrain, building construction, and antenna placement within the home. In urban and suburban areas with strong signals, indoor antennas can deliver excellent results with dozens of channels. Outdoor antennas extend this range significantly to 40 to 80 miles or more, making them essential in rural and fringe reception areas where indoor units simply cannot capture enough signal.

Gain

Indoor antennas are constrained by their compact size and typically achieve 2 to 8 dBi of gain. Outdoor antennas, with their larger element arrays, deliver substantially higher gain — 6 to 18 dBi — and often incorporate dedicated VHF elements that indoor flat panels lack.

Installation Complexity

An indoor antenna is truly plug-and-play: unbox it, connect the coaxial cable to the TV, position it, and run a channel scan. Total setup time is measured in minutes. An outdoor antenna requires mounting hardware, cable routing through walls or along the exterior, proper grounding per electrical code, weatherproofing of all connections, and precise aiming toward broadcast towers. Professional installation is common for outdoor setups.

Weather Resistance

Indoor antennas are not weather-resistant by design — they are meant for climate-controlled indoor environments only. Outdoor antennas are built with weatherproof housings rated IPX4 or higher, UV-stabilized plastics that resist years of sun exposure, and corrosion-resistant hardware. Quality outdoor antennas withstand rain, snow, ice, and temperature extremes from well below freezing to desert heat.

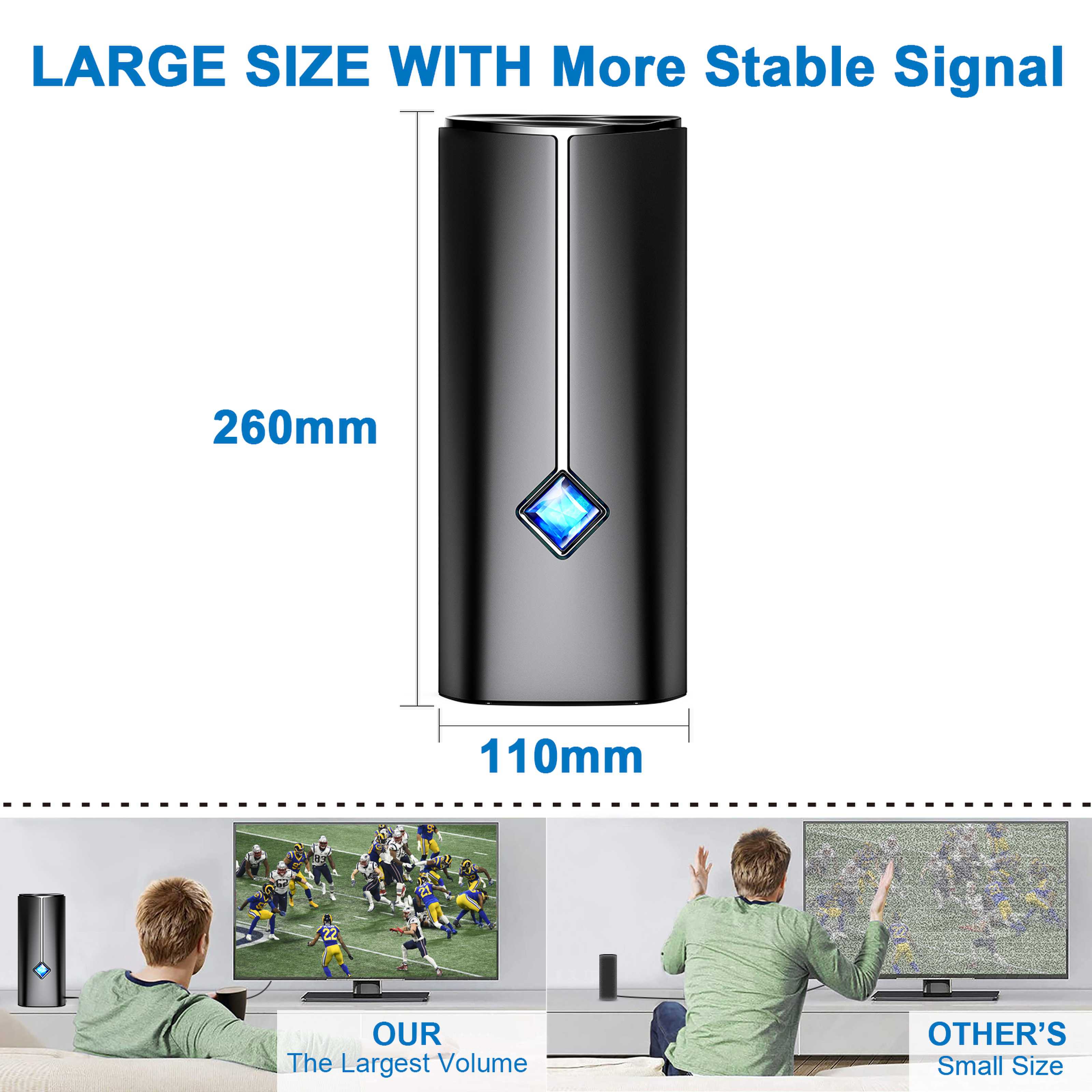

Physical Size and Visibility

Indoor antennas are compact — 6 to 18 inches — with a low visual profile. Flat-panel models can be mounted behind a TV or on a window with minimal aesthetic impact. Outdoor antennas are substantially larger — 2 to 12 feet — and are visible on the roof or exterior wall. This is a consideration for homeowners concerned about curb appeal and for neighborhoods with aesthetic guidelines.

Signal Obstruction

Indoor signals must pass through walls, windows, furniture, and building materials that attenuate RF energy. Each interior wall can reduce signal strength by several dB. Brick, concrete, stucco, and metal siding are particularly problematic. An outdoor antenna has a clear, unobstructed line of sight to the broadcast towers — no walls, no furniture, no window coatings. This is the single biggest performance advantage of outdoor mounting.

Multipath Interference

Indoor environments are filled with reflective surfaces — walls, floors, metal appliances, mirrors — that bounce RF signals around the room. This multipath interference causes the antenna to receive the same signal via multiple paths with different time delays, which can confuse digital tuners and cause pixelation or complete signal loss. Outdoor installations have far fewer nearby reflecting surfaces, resulting in cleaner signal capture.

VHF Reception Capability

Most indoor flat-panel antennas are optimized for UHF and struggle with VHF channels (2–13). Their compact elements are physically too short to efficiently capture VHF wavelengths. This is a common frustration for users who cannot receive a major network affiliate that happens to broadcast on VHF. Outdoor antennas, particularly those with dedicated VHF elements or log-periodic designs, handle both VHF and UHF bands with consistent performance.

Cost Considerations

Indoor antennas range from approximately $10 to $50, with most quality amplified flat-panel models falling in the $25–$40 range. Outdoor antennas span a wider price band from $30 to over $150, with the additional costs of mounting hardware, coaxial cable, grounding equipment, and potentially professional installation. However, an outdoor antenna is a one-time investment that provides free television for years, quickly paying for itself compared to cable or satellite subscriptions.

Regulatory Considerations

Indoor antennas face no regulatory restrictions — they can be used in any residence. For outdoor antennas in the United States, the FCC's OTARD rule (Over-the-Air Reception Devices) protects your right to install TV antennas on property you own or exclusively control. Homeowner associations and landlords cannot prohibit outdoor antenna installation, though reasonable safety and historic preservation restrictions may apply.

When to Choose Indoor

• You live within 30 miles of broadcast towers with strong signal ratings on FCC DTV maps

• You reside in an apartment, condominium, or rental property where outdoor mounting is impractical

• You prefer a quick, no-tools, no-drilling installation that can be set up in minutes

• Your local broadcast towers are all within the UHF band (no VHF channels to worry about)

When to Choose Outdoor

• You live more than 30–40 miles from the nearest broadcast towers

• Hills, dense trees, or tall buildings block the line of sight to the towers

• You need to receive VHF channels that indoor antennas cannot capture reliably

• You plan to distribute the antenna signal to multiple televisions throughout the home

7. Coaxial Cable Selection: RG6 vs. RG59

The coaxial cable connecting the antenna to the TV is a critical link in the signal chain. Even the best antenna cannot compensate for a poor-quality or excessively long cable that bleeds signal strength before it reaches the tuner.

RG6 — The Modern Standard

RG6 coaxial cable is the industry standard for digital TV antenna installations. It features an 18 AWG (American Wire Gauge) center conductor — thick enough to carry signals efficiently over typical household distances. RG6 cables use dual or quad-layer shielding that blocks external RF interference from entering the cable and prevents signal leakage. At 700 MHz (the high end of the UHF TV band), RG6 attenuates approximately 5.5 to 7 dB per 100 feet. At 200 MHz (High VHF), the loss drops to about 3 to 4 dB per 100 feet. For most residential installations with cable runs under 150 feet, RG6 provides perfectly adequate performance without an amplifier.

RG59 — Legacy Cable

RG59 uses a thinner center conductor (20–22 AWG) and generally has single or dual shielding. Its higher attenuation — 9 to 12 dB per 100 feet at 700 MHz, and 5 to 6 dB per 100 feet at 200 MHz — makes it unsuitable for modern digital TV antenna use. RG59 was designed decades ago for lower-frequency analog video applications like CCTV cameras and is still found in older homes as pre-installed wiring. If your home has existing RG59 cabling, replacing it with RG6 is strongly recommended for antenna use. The only acceptable use of RG59 in a TV antenna system is as a very short (under 6-foot) patch cable where the loss is negligible.

RG11 — For Extra-Long Runs

For cable runs exceeding 100 to 150 feet, RG11 coaxial cable offers even lower loss than RG6 thanks to its thicker 14 AWG center conductor. The trade-offs are higher cost, greater stiffness making it harder to route through walls, and the need for special connectors. In most residential scenarioses, an RG6 cable plus a mast-mounted preamplifier is more practical and cost-effective than stepping up to RG11.

Understanding Signal Loss in the Cable Path

Every component between the antenna and the TV introduces some degree of signal loss. A 100-foot RG6 cable at 600 MHz loses approximately 6.5 dB. A simple 2-way coaxial splitter loses roughly 3.5 dB, and a 4-way splitter loses about 7 dB. Each barrel connector or wall plate adds about 0.5 dB, and a surge protector or grounding block adds another 0.5 dB. In a typical installation with a 100-foot cable run and a 2-way splitter to feed two TVs, the total system loss is approximately 10 dB. This means the signal arriving at the TV is only one-tenth as strong as the signal captured by the antenna — which is why a preamplifier becomes essential for longer cable runs or multi-TV setups.

8. Installation & Positioning Best Practices

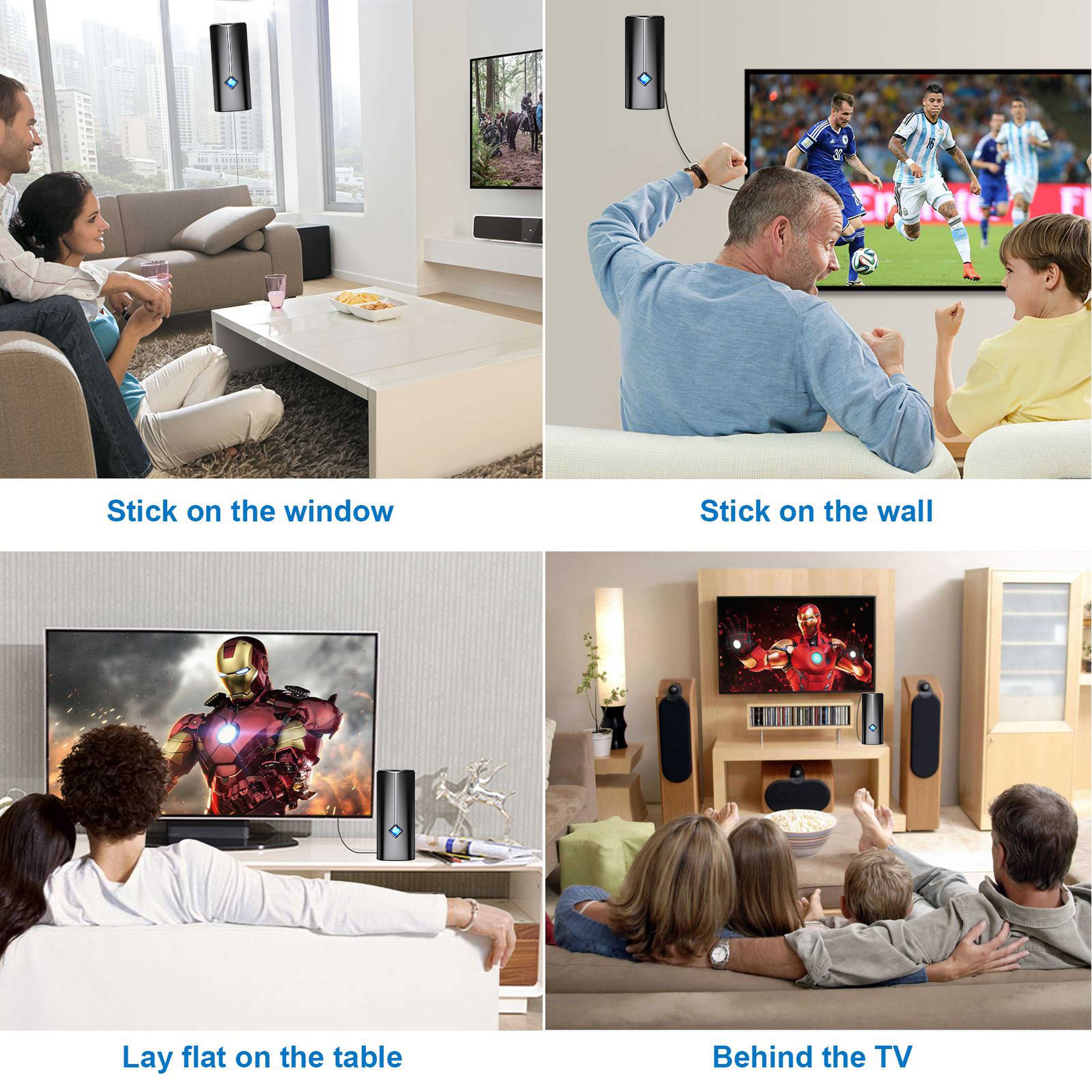

8.1 Indoor Antenna Placement

Elevation is the single most impactful factor in indoor antenna performance. Every foot of additional height reduces the amount of building material the signal must penetrate. Placing the antenna on an upper floor, near the ceiling, on a high shelf, or in the attic yields noticeably better results than positioning it on a TV stand at waist level. If your home has a second story or attic, moving the antenna upstairs often gains 10 to 20 more channels compared to a ground-floor placement.

Window placement significantly reduces signal attenuation. A window facing the broadcast towers eliminates one or more interior walls from the signal path. However, modern low-E (low-emissivity) energy-efficient windows have a microscopically thin metallic coating that can block radio frequency signals almost as effectively as a solid metal sheet. If you have low-E windows — common in homes built after 2000 — try placing the antenna on a non-window wall that faces the towers instead.

Distance from interference sources is critical. LED light bulbs and fluorescent fixtures emit broadband RF noise that raises the noise floor and makes weak signals harder to decode. Wi-Fi routers and modems, though operating at 2.4 and 5 GHz, can produce harmonic interference that affects UHF reception. Large metal objects — file cabinets, refrigerators, metal-framed furniture, mirrors with metallic backing — reflect and block signals. Switching power supplies in computers, game consoles, and USB chargers also generate RF noise. Keeping the antenna at least three to six feet away from these devices dramatically improves reception.

Testing multiple locationss is essential because indoor RF propagation is counterintuitive. Signal strength can vary by 10 dB or more between two spots just a few feet apart within the same room. The only reliable method is to place the antenna, run a channel scan, note the results, then move it and repeat. Modern TVs include a built-in signal strength meter — use it while slowly repositioning the antenna for real-time feedback on which directions and positions yield the strongest readings.

Avoid the temptation to hide the antenna behind the TV. The television itself is a large metal box that blocks signals from the rear. Placing the antenna behind the TV guarantees that signals from the tower direction (assuming the TV faces the room) are blocked. Mount the antenna on a wall or window with a clear path to the towers, using a longer coaxial cable if necessary to reach the TV.

8.2 Outdoor Antenna Installation

Mount above the roof line — at least five feet above the highest point of the roof. Every foot of height improves the radio horizon and reduces obstructions between the antenna and the broadcast towers. A mast secured to the chimney, a gable-end mount, or a dedicated tripods on the roof peak are all effective mounting options. The antenna should be the highest metal object in the immediate vicinity.

Precise aiming toward broadcast towers is critical for directional antennas. Online tools such as the FCC DTV Reception Maps, AntennaWeb, and RabbitEars.info provide the exact compass bearing from your address to each local broadcast tower. Enter your locations, note the magnetic heading, and use a physical compass or smartphones compass app to align the antenna. Even a 10-degree aiming error can reduce received signal strength by several dB on a high-gain directional antenna.

Proper grounding is mandated by the National Electrical Code (NEC Article 810) for all outdoor antenna installations. The antenna mast must be connected to the home's grounding electrode system using at least 10 AWG copper wire. The coaxial cable must pass through a listed grounding block before entering the home, and that block must also be bonded to the grounding system. Proper grounding serves two purposes: it provides a path for static electricity discharge and, in the event of a nearby lightning strike, directs the surge current to earth rather than through your home's electrical system and connected electronics.

Mast-mounted preamplification places the amplifier at the antenna where the signal is strongest and cleanest — before any cable loss occurs. This maximizes the signal-to-noise ratio of the entire system. An amplifier placed indoors at the TV end of the cable amplifies both the weakened signal and the noise picked up along the cable run, yielding worse results.

Weatherproof every outdoor connection to prevent moisture from entering the coaxial cable. Water inside a cable causes corrosion that increases attenuation and can eventually destroy the cable. Use compression-style F-connectors with integrated weather seals, wrap connections with weatherproof tape, and install rubber weather boots over all outdoor junctions. A small bead of dielectric grease inside the connector before tightening adds an extra layer of moisture protection.

Maintain a minimum safety distance of 20 feet (6 meters) from all overhead power lines during installation. This is not a guideline — it is a life-safety requirement. If the antenna or mast can contact a power line during installation or if it falls, the result can be fatal. When the installation locations is close to utility lines, hire a licensed professional installer.

9. Signal Interference Factors

Multiple environmental and man-made factors can degrade digital TV antenna reception. Understanding these interference sources helps in diagnosing reception problems and choosing appropriate countermeasures.

Terrain Obstacles

Hills and mountains between your locations and the broadcast towers create signal shadow zones where direct reception is physically blocked. The radio waves cannot penetrate solid earth — they either diffract over the obstacle (weakening significantly) or are completely blocked. The only practical solution for terrain-shadowed locationss is to mount the antenna as high as possible — a taller mast, a hilltop installation, or, in extreme cases, accepting that reliable OTA reception may not be feasible at that specific locations.

Dense Foliage and Trees

Trees are surprisingly effective at absorbing UHF signals. The water content in leaves attenuates radio waves, and this effect varies seasonally — reception is often noticeably worse in summer when trees are fully leafed out compared to winter when branches are bare. A clear line of sight above the tree canopy is ideal. If trees are unavoidable, trimming overhanging branches and mounting the antenna high enough to see over nearby foliage are the primary countermeasures.

Buildings and Urban Canyons

In dense urban environments, tall buildings create a complex RF environment of reflections, diffraction, and shadow zones. A signal may reach the antenna via multiple reflected paths — bouncing off one building, then another — with different arrival times and phases. This multipath interference is particularly challenging for digital tuners, which must distinguish the true signal from its time-delayed copies. Using a directional antenna with a high front-to-back ratio helps by rejecting signals arriving from angles other than the direct tower direction.

RF Noise from Electronics

Modern homes are filled with unintentional RF emitters. LED light bulbs — especially inexpensive ones without adequate filtering — are notorious for generating broadband noise across the VHF and UHF bands. Fluorescent lights, dimmer switches, computer power supplies, USB chargers, and even some television sets themselves radiate interference. This noise raises the background noise floor, effectively reducing the signal-to-noise ratio and making weak signals undecodable. During troubleshooting, temporarily turning off nearby electronics and running a channel scan can identify whether RF noise is the culprit.

Weather Effects

Digital TV reception is generally resilient to weather conditions. Unlike analog signals that degrade gradually into snow and static, digital signals exhibit the "cliff effect" — perfect picture quality until the signal crosses a minimum threshold, at which point it fails completely. Heavy rain causes slight attenuation, particularly at higher UHF frequencies, but a well-designed system with 6 to 10 dB of signal margin handles all but the most extreme conditions. Strong winds that move tree branches or shake the antenna mount can cause intermittent dropouts. Temperature inversions at dawn and dusk sometimes create tropospheric ducting — an atmospheric phenomenon where signals travel much farther than normal, which can either bring in distant stations as a bonus or cause interference between co-channel stations.

Co-Channel Interference

When two stations broadcasting on the same RF channel are reachable from your locations — one close and strong, the other distant — the distant station can interfere with reception of the desired station. This is most common in areas between two TV markets. A highly directional antenna aimed precisely at the desired tower, rejecting the interfering station from a different direction, is the best defense.

4G and 5G LTE Interference

mobiles phones networks operate in frequency bands immediately adjacent to the UHF TV band — above 698 MHz. Strong nearby cell tower signals can leak into the TV antenna system and overload the tuner's front-end, causing reception problems across multiple channels. An LTE/5G filter installed inline between the antenna and the TV blocks these out-of-band signals while passing TV broadcast frequencies with minimal loss. These filters are inexpensive and highly effective for homes located near cell towers.

10. Reception Distance & Signal Strength

Understanding Signal Strength Levels

Signal strength for digital TV reception is typically measured in dBm (decibels relative to 1 milliwatt). The usable range for most consumer TV tuners spans from roughly −85 dBm (the weakest decodable signal) up to about −5 dBm (the point where overload becomes a concern).

Signals between −5 and −30 dBm are actually too strong and can overload the tuner's input stage, causing distortion rather than better reception. In these rare cases — typically when living within a mile or two of a high-power broadcast tower — adding an inline attenuator of 6 to 20 dB brings the signal into the tuner's comfortable operating range.

Signals between −30 and −50 dBm represent very strong reception conditions, delivering flawless picture quality with ample headroom for weather-related fluctuations. Signals from −50 to −65 dBm are solidly good, providing reliable reception without pixelation or dropouts. Most well-placed indoor antennas in suburban areas operate in this range.

Signals from −65 to −75 dBm are marginal. Reception is usually stable in good conditions but may break up during heavy rain, when leaves are dense, or if the antenna is accidentally moved. An amplifier can improve reliability in this zone.

Signals from −75 to −85 dBm are weak and likely to experience frequent dropouts even in favorable conditions. Reliable reception in this range typically requires a high-gain outdoor directional antenna combined with a low-noise mast-mounted preamplifier.

Signals below −85 dBm fall below the practical decoding threshold of consumer TV tuners. At this level, the signal is not receivable regardless of antenna or amplifier choice at that specific locations.

Realistic Reception Distance Expectations

Marketing claims of antennas receiving signals from "1000+ miles" or even "500+ miles" are physically impossible. The curvature of the Earth creates a radio horizon that limits terrestrial TV signal propagation to approximately 70 to 80 miles under normal atmospheric conditions — and even that maximum requires an ideal setup: flat terrain, a tall broadcast tower, and a high-gain outdoor antenna mounted well above the roofline. The FCC and independent antenna engineers confirm that reliable over-the-air reception beyond 70 miles is rare.

Practical reception expectations based on distance are as follows. Within 0 to 15 miles, a basic indoor antenna — flat-panel or rabbit ears — reliably receives all available strong-signal channels. From 15 to 30 miles, an Amplified Indoor Antenna or a medium-sized attic/outdoor antenna captures most available channels. Between 30 and 50 miles, an attic-mounted or outdoor directional antenna with amplification provides good reception of most stations. From 50 to 70 miles, a high-gain outdoor directional antenna paired with a low-noise preamplifier may receive the strongest stations, though results for weaker ones become marginal. Beyond 70 miles, only the most powerful stations are receivable under ideal conditions — deep-fringe reception is highly variable and locations-dependent.

11. Frequently Asked Questions (FAQ)

12. Glossary of Terms

• ATSC (Advanced Television Systems Committee)

• The digital television broadcast standard used in the United States, Canada, Mexico, and South Korea. ATSC replaced the analog NTSC standard during the 2009 digital television transition.

• ATSC 3.0 (NextGen TV)

• The next-generation broadcast standard that builds on ATSC 1.0, supporting 4K Ultra HD resolution with HDR (High Dynamic Range), immersive object-based audio, internet protocol-based content delivery, and reception on mobiles devices.

• Balun (Balanced-to-Unbalanced Transformer)

• A passive device that converts the antenna's balanced 300-ohm output to the 75-ohm unbalanced impedance of standard coaxial cable, ensuring efficient signal transfer and impedance matching.

• Beamwidth

• The angular width of an antenna's main reception lobe, measured between the half-power points (−3 dB relative to the peak). Directional antennas have narrow beamwidths for focused reception; omnidirectional antennas have 360-degree beamwidth.

• Coaxial Cable

• A transmission line consisting of a center conductor surrounded by dielectric insulation, a braided metallic shield, and an outer jacket. The standard cable type for connecting TV antennas to televisions.

• dBi (Decibels Relative to Isotropic)

• A unit of antenna gain comparing the antenna's directional sensitivity to that of a theoretical isotropic radiator that distributes energy equally in all directions.

• dBm (Decibels Relative to 1 Milliwatt)

• A unit expressing absolute signal power. Negative dBm values indicate signals weaker than 1 milliwatt; positive values indicate stronger signals. Consumer TV tuners typically operate between −85 dBm and −5 dBm.

• Distribution Amplifier

• An amplifier installed indoors, after the coaxial cable run from the antenna, designed to boost the signal to compensate for losses introduced by splitting to multiple televisions.

• DTV (Digital Television)

• Television broadcasting that uses digital encoding for both video and audio, as opposed to the legacy analog NTSC standard.

• DVB-T / DVB-T2 (Digital Video Broadcasting – Terrestrial)

• The digital terrestrial television standard used in Europe, Australia, parts of Asia, and Africa. DVB-T2 is the second-generation version offering higher data capacity and more robust reception.

• F-Connector

• The standard screw-on coaxial connector used universally for TV antenna and cable television connections, designed for 75-ohm impedance systems.

• Front-to-Back Ratio

• A measure (in dB) of how much better an antenna receives signals from its intended front direction compared to signals arriving from the rear. Higher values indicate better rejection of unwanted signals from behind the antenna, reducing multipath interference.

• Gain

• The measure of an antenna's ability to direct or concentrate radio frequency energy in a particular direction, expressed relative to a reference antenna (dBi or dBd). Higher gain translates to stronger signal output but generally narrower reception patterns.

• Impedance

• The electrical characteristic of an antenna system measured in ohms. The television broadcast industry standard is 75 ohms. All components in the signal chain must match this impedance for efficient power transfer.

• LTE / 5G Filter

• A band-pass filter installed inline between the antenna and TV that blocks mobiles phones network signals operating above the UHF TV band (above 698 MHz) while allowing television broadcast frequencies to pass with minimal attenuation.

• Multipath Interference

• A reception condition where the same signal reaches the antenna via multiple paths — a direct line-of-sight path plus one or more reflected paths off buildings, terrain, or other surfaces. The time-delayed copies can cause errors that digital tuners struggle to decode.

• Noise Figure (NF)

• A specification of amplifier performance measured in dB. It quantifies how much electrical noise the amplifier adds to the signal. A lower noise figure means cleaner amplification, preserving the original signal-to-noise ratio.

• OTA (Over-the-Air)

• Free television broadcasts received via an antenna directly from local transmission towers, without any cable, satellite, or internet streaming subscription.

• OTARD (Over-the-Air Reception Devices Rule)

• An FCC regulation that protects the right of residents to install television antennas and satellite dishes on property they own or have exclusive use of, prohibiting restrictions by homeowner associations and landlords.

• Polarization

• The orientation of the electric field component of a radio wave. Television broadcasts in North America are horizontally polarized. The receiving antenna must be oriented horizontally (parallel to the ground) to match.

• Preamplifier

• An amplifier mounted at the antenna, as close to the antenna elements as possible, designed to boost the weak received signal before it suffers attenuation traveling through the coaxial cable. Maximizes the system signal-to-noise ratio.

• RG6

• The standard 75-ohm coaxial cable type for modern television antenna and satellite installations. It features an 18 AWG center conductor and dual or quad-layer shielding for low signal loss and effective interference rejection.

• Signal-to-Noise Ratio (SNR)

• The ratio of desired signal power to background noise power, expressed in decibels. A higher SNR means the signal stands out more clearly above the noise floor, enabling reliable decoding by the TV tuner.

• UHF (Ultra High Frequency)

• The frequency band from 470 to 698 MHz (post FCC spectrum repack), used for television channels 14 through 51. UHF signals have shorter wavelengths that allow compact antenna designs but are more easily blocked by obstacles than VHF.

• VHF (Very High Frequency)

• The frequency band from 54 to 216 MHz, used for television channels 2 through 13. Low VHF spans channels 2–6 (54–88 MHz), and High VHF spans channels 7–13 (174–216 MHz). VHF signals travel farther and penetrate obstacles better than UHF.

• VSWR (Voltage Standing Wave Ratio)

• A measurement of impedance matching quality expressed as a ratio. A VSWR of 1.0:1 represents a perfect impedance match. Values at or below 2.0:1 are acceptable for TV antennas, with 1.5:1 or lower indicating excellent matching.
