    Car Radio Antenna

      Car Radio Antenna

      1. What is a Car Radio Antenna?A Car Radio Antenna (also known as a Car Aerial) is a specialized RF (Radio Frequency) component designed to capture electromagnetic waves broadcast by terrestrial radio stations. These devices facilitate the reception of AM (Amplitude Modulation) and FM (Frequency Modulation) signals, converting them into electrical currents for the vehicle's head unit or infotainment system. Modern car antennas are engineered to maintain high-quality audio streams even while moving at high speeds through varying geographic terrains.2. Main Types of Car Radio AntennasChoosin...
    • Share：
      • Contact us Inquiry


    1. What is a Car Radio Antenna?

    A Car Radio Antenna (also known as a Car Aerial) is a specialized RF (Radio Frequency) component designed to capture electromagnetic waves broadcast by terrestrial radio stations. These devices facilitate the reception of AM (Amplitude Modulation) and FM (Frequency Modulation) signals, converting them into electrical currents for the vehicle's head unit or infotainment system. Modern car Antennas are engineered to maintain high-quality audio streams even while moving at high speeds through varying geographic terrains.

    2. Main Types of Car Radio Antennas

    Choosing the right antenna depends on the vehicle's design, the desired aesthetic, and the required signal strength.

    A. Shark Fin Antennas

    The modern industry standard for luxury and contemporary vehicles. Shark Fin Antennas feature a sleek, aerodynamic housing that reduces wind drag and noise. Beyond AM/FM reception, they often integrate modules for GPS, Satellite Radio (SDARS), and 4G/5G LTE connectivity.

    B. Fixed & Flexible Whip Antennas

    Commonly found on trucks and SUVs, Whip Antennas are traditional masts that offer excellent long-range reception. Modern versions are made from "memory" materials that can bend during car washes or under obstacles without breaking.

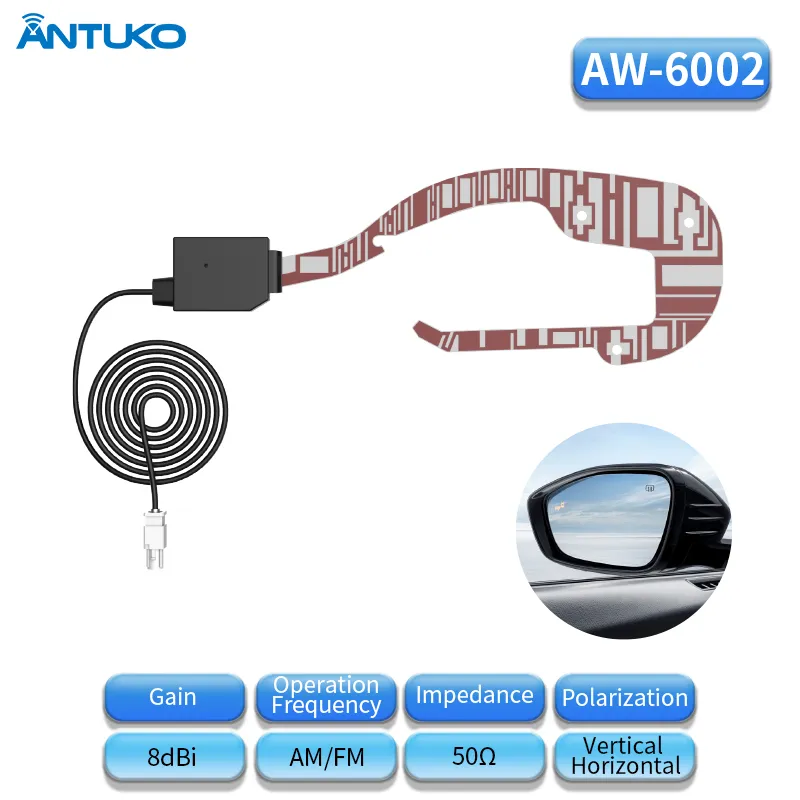

    C. Internal Glass-Mounted Antennas

    These antennas consist of thin metallic elements printed onto or adhered to the vehicle's windows. They are completely protected from weather and vandalism, though they often require an Amplified Signal Booster to match the performance of external models.

    D. Stubby & Bullet Antennas

    Popular in the automotive aftermarket, these short, rigid antennas replace long factory masts. They provide a customized, aggressive look while maintaining reliable signal reception for urban driving.

    3. Key Advantages of High-Performance Car Antennas

    • Enhanced Signal Stability: Minimizes static and "fading" in areas with weak broadcast coverage.

    • Aerodynamic Efficiency: Advanced designs reduce wind resistance, contributing to better fuel economy and a quieter cabin environment.

    • Durability and Weatherproofing: Built with IP67/IP68 ratings, ensuring resistance to water, road salt, and extreme UV exposure.

    • Universal Compatibility: Most replacement antennas come with multiple threaded adapters (M4, M5, M6) to fit virtually any vehicle make and model.

    4. Technical Specifications Table

    The following data outlines the industry-standard metrics for high-quality automotive antennas.

    SpecificationTechnical Value
    AM Frequency Range530 KHz – 1710 KHz
    FM Frequency Range87.5 MHz – 108 MHz
    Impedance75 Ω (Standard) / 50 Ω
    Signal Gain5dB – 15dB (Passive) / 20dB+ (Amplified)
    VSWR≤ 2.0
    Connector TypesFAKRA (Z/A/B), DIN, ISO, Motorola
    Operating VoltageDC 10V – 16V (for Active Antennas)
    MaterialABS Plastic, Aluminum, Copper Coil

    5. Signal Optimization & Installation Tips

    To achieve the best audio performance from a Car Radio Antenna, consider the following factors:

    1. Placement: Rooftop mounting provides the clearest "Line of Sight" to broadcast towers, minimizing signal blockage by the vehicle's body.

    2. Connector Integrity: Using high-quality FAKRA or DIN connectors ensures a vibration-resistant connection that prevents signal dropouts on rough roads.

    3. Amplification: If you live in a rural area, choosing an Amplified (Active) Antenna will significantly boost weak signals, though it requires a 12V power connection.

    4. Cable Quality: Low-loss coaxial cables (like RG-174) should be used to prevent signal attenuation between the antenna and the radio.

    6. Frequently Asked Questions (FAQ)

    Q1: Will a shorter "Stubby" antenna affect my radio reception?

    In urban areas with strong signals, the difference is negligible. However, in remote areas, a longer whip antenna generally provides superior range compared to a shorter mast.

    Q2: Do car antennas require maintenance?

    Most modern antennas are maintenance-free. However, checking the mounting base for tightness and ensuring the connector is free of corrosion can prevent signal loss over time.

    Q3: Can I replace my whip antenna with a shark fin?

    Yes. Many manufacturers offer Universal Shark Fin Antenna Kits that can be installed over existing antenna bases, providing an instant aesthetic upgrade with integrated signal enhancement.
