    1. What is an Auto Antenna?

    An Auto Antenna (also known as an Automobiles Antenna or Vehicle Antenna) is a critical RF (Radio Frequency) component integrated into a vehicle to capture terrestrial and satellite signals. Traditionally used for AM/FM radio reception, modern auto Antennas have evolved into multi-functional communication hubs. They now support a wide array of technologies, including GPS navigation, Satellite Radio (SDARS), 4G/5G LTE connectivity, and V2X (Vehicle-to-Everything) communication, ensuring the vehicle stays connected to the digital world.

    2. Evolution and Types of Auto Antennas

    The design of the auto antenna has shifted from external functional masts to integrated, aerodynamic shapes that complement modern vehicle aesthetics.

    A. Shark Fin Antennas

    Shark Fin Antennas are the current industry standard for high-end and mass-market vehicles. Their aerodynamic profile reduces wind drag and noise while providing a protective housing for multiple antenna modules (AM/FM, GPS, and LTE) within a single unit.

    B. Whip and Pole Antennas

    Traditional Whip Antennas consist of a flexible or rigid mast. They are known for superior long-range signal reception, particularly in rural areas. Modern versions use high-flexibility "memory" materials to withstand mechanical stress and car washes.

    C. Integrated Glass Antennas

    These are virtually invisible antennas printed directly onto the vehicle’s rear or side glass. They offer total protection from environmental damage and car washes, though they often require an Active Signal Amplifier to maintain performance levels.

    D. Short Stubby & Bullet Antennas

    A popular aftermarket choice, these antennas replace long factory masts with short, rigid designs. They offer a customized "off-road" or "sporty" look while maintaining essential radio functionality for urban environments.

    3. Key Advantages of High-Performance Auto Antennas

    • Seamless Connectivity: Provides stable reception for infotainment systems, ensuring uninterrupted music, navigation, and emergency services.

    • Aerodynamic Efficiency: Modern designs like the Shark Fin contribute to better fuel economy by minimizing air resistance at highway speeds.

    • Multi-Band Capability: High-quality auto antennas can handle multiple frequencies simultaneously without cross-interference.

    • Weather Durability: Engineered with IP67/IP68 waterproof ratings and UV-resistant materials to ensure a service life that matches the vehicle’s lifespan.

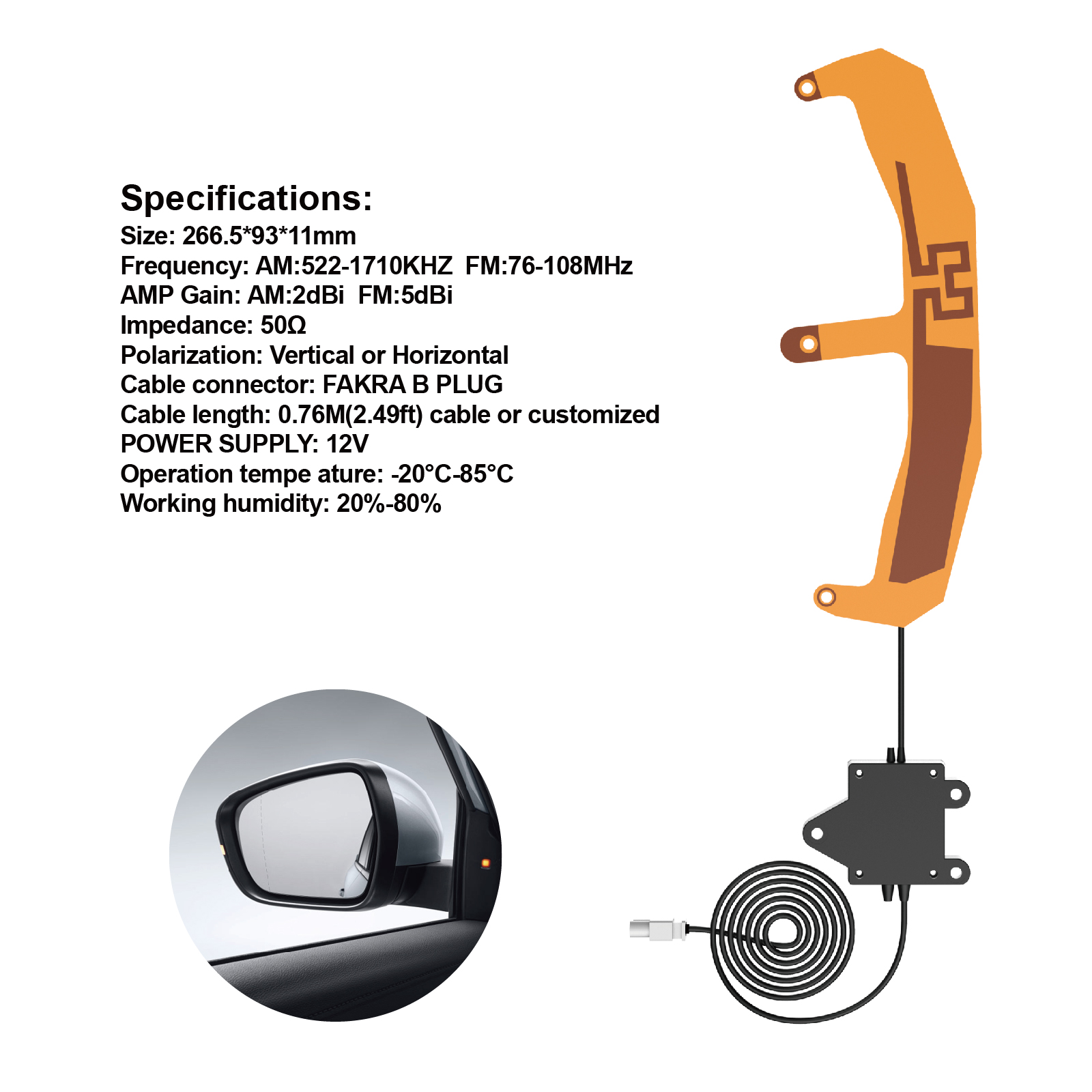

    4. Technical Specifications Table

    The following table outlines the general technical parameters for professional-grade auto antennas.

    SpecificationTechnical Details
    Frequency Range (AM/FM)AM: 530-1710KHz / FM: 87.5-108MHz
    Frequency Range (GPS/GNSS)1575.42MHz / 1602MHz
    Cellular Support4G LTE / 5G Sub-6GHz (600MHz - 6GHz)
    Input Impedance50 Ω / 75 Ω
    VSWR (Voltage Standing Wave Ratio)≤ 2.0
    Gain (Amplified)15dB – 25dB (Active Models)
    Connector TypeFAKRA (Z/A/B/C), DIN, ISO, SMA
    Operating Temperature-40°C to +85°C

    5. Modern Trends: The Connected Vehicle

    The "Auto Antenna" is no longer just for the radio. As vehicles become "smart," the antenna serves as the gateway for:

    1. Telematics: Sending vehicle health and locations data back to manufacturers or fleet managers.

    2. OTA Updates: Allowing car software to be updated wirelessly (Over-the-Air).

    3. V2X Communication: Enabling the car to "talk" to traffic lights and other vehicles to improve safety and traffic flow.

    6. Frequently Asked Questions (FAQ)

    Q1: Can I replace my factory auto antenna myself?

    Yes. Most Universal Auto Antennas use standard threaded mounts (M4, M5, M6), making them easy to swap without specialized tools. For Shark Fin conversions, kits are available that fit over existing bases.

    Q2: What is an "Active" Auto Antenna?

    An Active Auto Antenna includes a built-in electronic amplifier. It requires a 12V power source from the car to boost weak signals, which is especially helpful for smaller or hidden antenna designs.

    Q3: Why does my auto antenna use a FAKRA connector?

    FAKRA is a specialized, color-coded, and locking connector designed specifically for the automotive industry. It prevents the connection from vibrating loose and ensures high signal integrity for critical systems like GPS.
