    RV antenna

      RV antenna

      1. What is an RV Antenna?An RV Antenna (also known as a Motorhome TV Antenna) is a high-performance signal receiver specifically engineered for recreational vehicles, camper vans, and travel trailers. Unlike stationary residential antennas, RV antennas are designed to withstand the rigors of the road—including high wind speeds, heavy vibrations, and varying terrain. They capture free Over-the-Air (OTA) digital signals, providing travelers with high-definition local news, sports, and entertainment without the need for a monthly cable or satellite subscription.2. Key Technologies in RV Signal Re...
    • Share：
      • Contact us Inquiry


    TV antenna1.jpg

    TV antenna2.jpg

    TV antenna3.jpg

    TV antenna10.jpg


    1. What is an RV Antenna?

    An RV Antenna (also known as a Motorhome TV Antenna) is a high-performance signal receiver specifically engineered for recreational vehicles, camper vans, and travel trailers. Unlike stationary residential Antennas, RV antennas are designed to withstand the rigors of the road—including high wind speeds, heavy vibrations, and varying terrain. They capture free Over-the-Air (OTA) digital signals, providing travelers with high-definition local news, sports, and entertainment without the need for a monthly cable or satellite subscription.

    2. Key Technologies in RV Signal Reception

    To provide stable performance in a mobiles environment, RV antennas utilize several advanced design features:

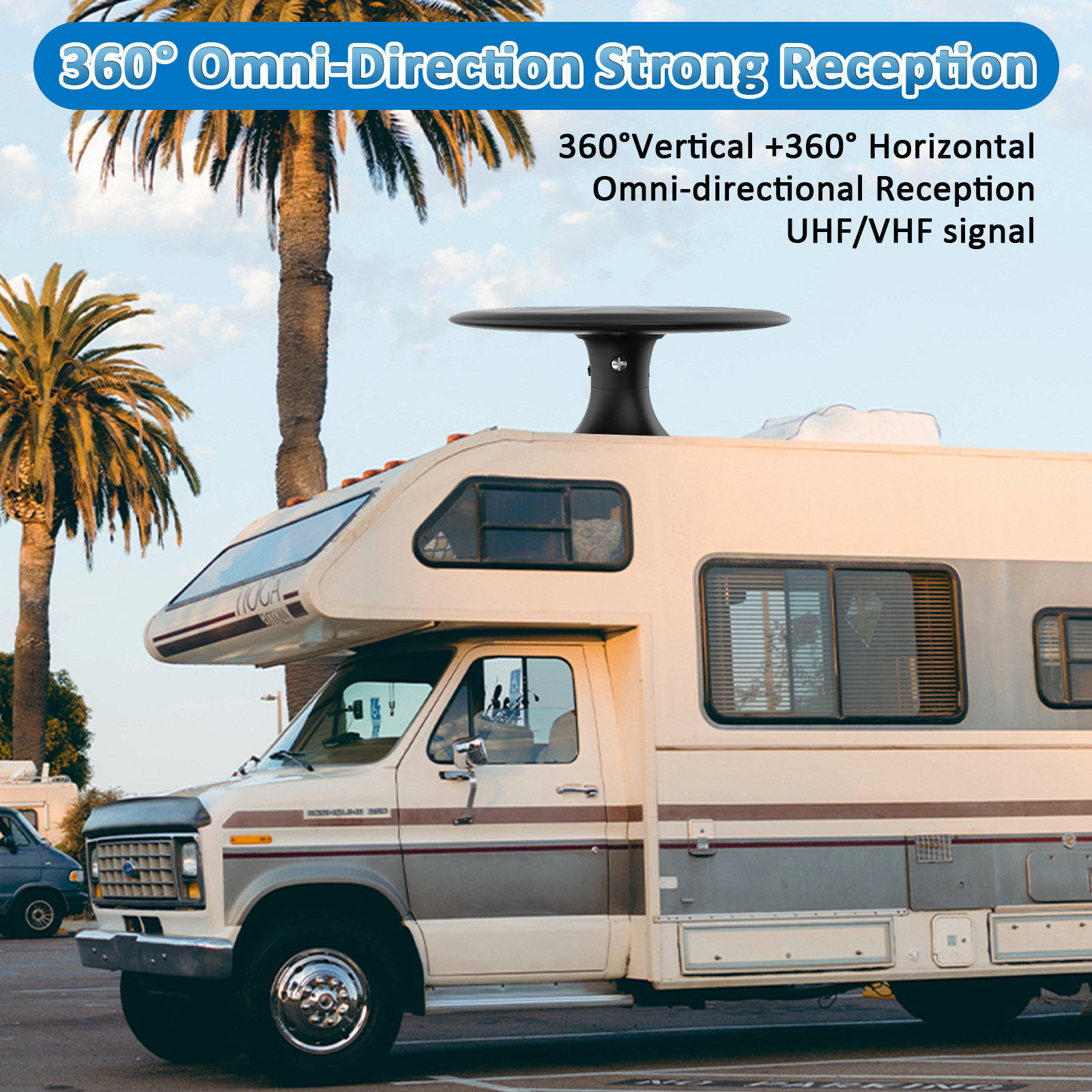

    • 360° Omnidirectional Reception: Many modern RV antennas pull in signals from all directions simultaneously. This eliminates the need to manually "aim" the antenna toward a broadcast tower every time the vehicle is parked at a new campsite.

    • Aerodynamic Low-Profile Design: To reduce wind drag and prevent damage from low-hanging obstacles (like tree branches), these antennas feature sleek, rounded housings that protect internal components while maintaining vehicle efficiency.

    • Integrated Signal Amplifiers: Since campgrounds are often located in remote or rural areas, RV antennas typically include built-in low-noise amplifiers to boost weak signals from distant urban centers.

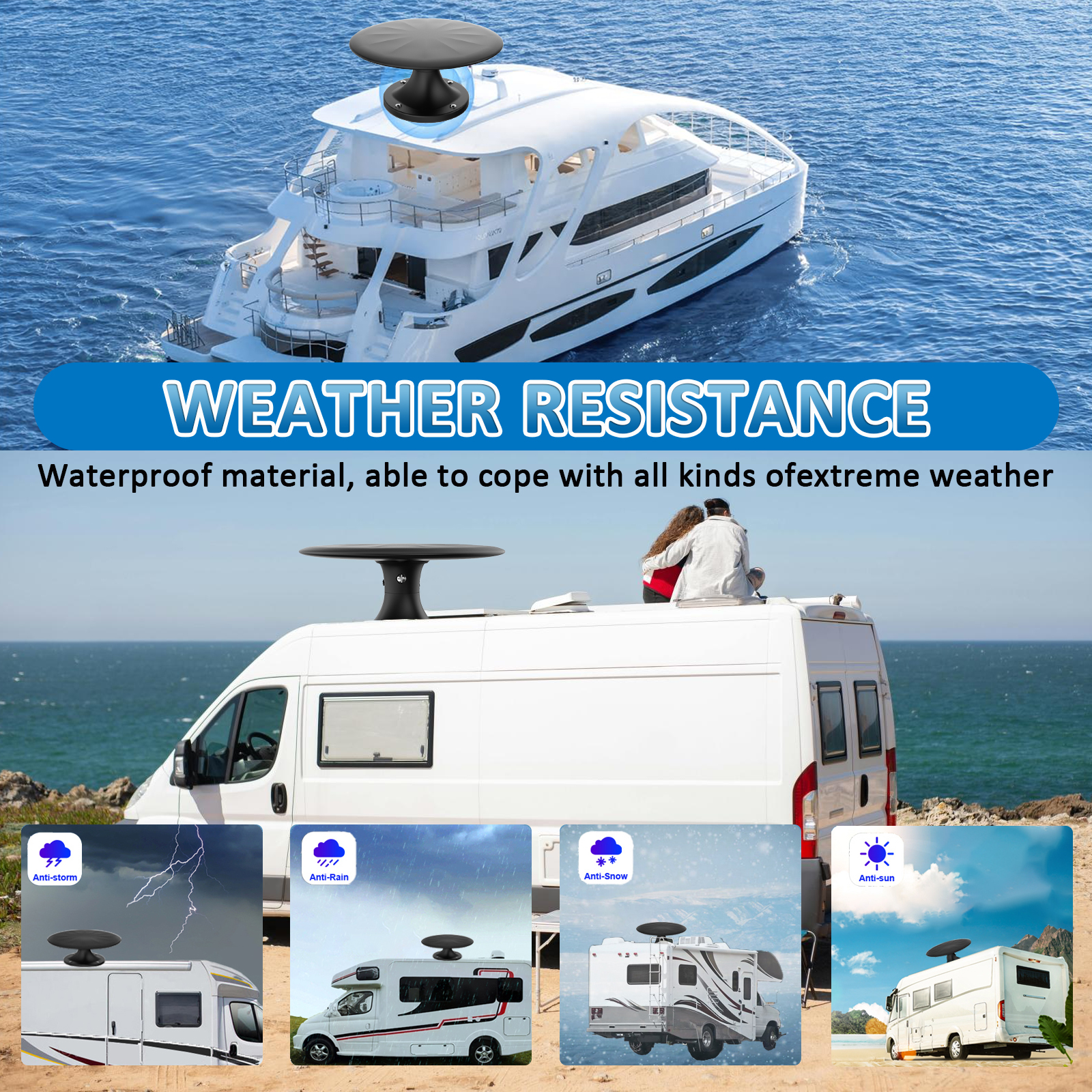

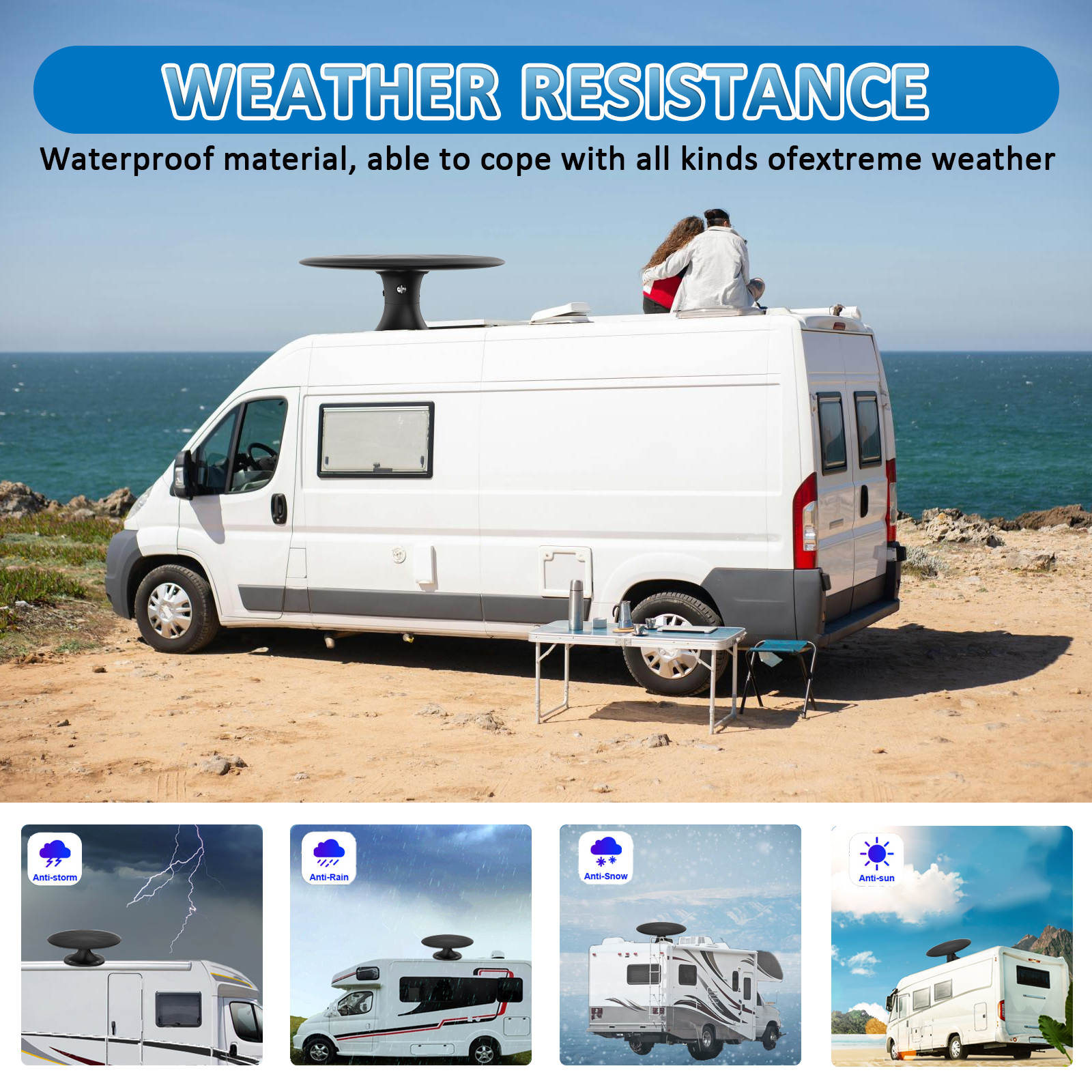

    • Weather-Resistant Materials: Constructed with UV-stabilized ABS plastic and anti-corrosive coatings, these antennas are built to survive extreme sun, salt spray, and rain.

    3. Main Types of RV Antennas

    A. Omnidirectional (Fixed)

    The modern industry standard. These antennas are permanently mounted to the roof and require zero manual adjustment. They are ideal for users who want a "plug-and-play" experience.

    B. Directional (Crank-Up)

    Traditional models that can be raised and rotated from inside the RV. While they require manual aiming, they often provide higher "Gain" (dB), making them superior for "boondocking" in very remote areas.

    C. Hybrid TV & Cellular Antennas

    The latest trend in RV tech. These units combine digital TV reception elements with 4G/5G LTE and Wi-Fi boosters, providing a complete connectivity hub for the vehicle.

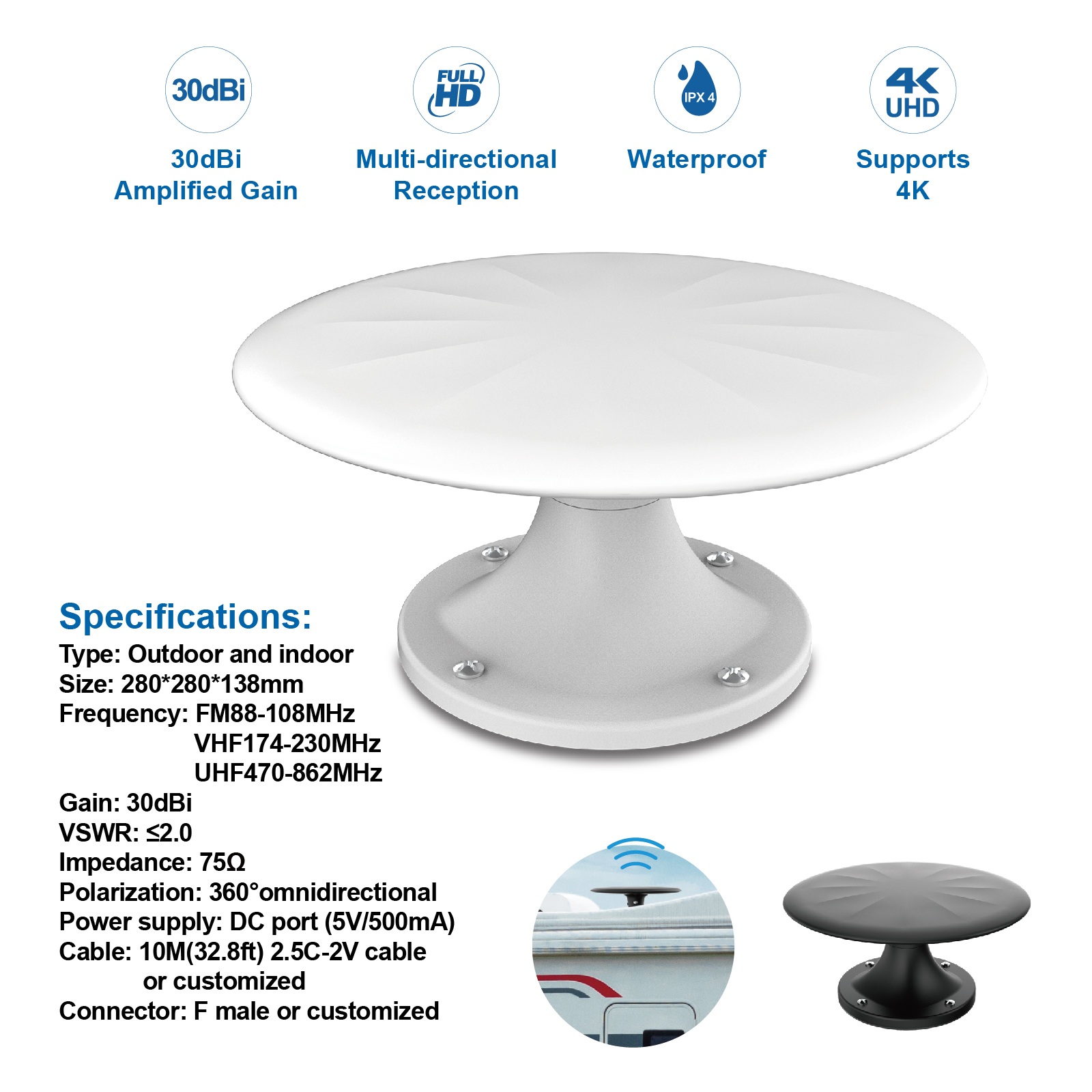

    4. Technical Specifications Table

    The following table outlines the industry standards for professional-grade RV antenna systems.

    FeatureTechnical Specification
    Frequency RangeVHF (47-230MHz) / UHF (470-862MHz)
    Reception StandardsDVB-T, DVB-T2, ATSC (NextGen TV), ISDB-T
    Max Gain30dB - 35dB (Amplified)
    Impedance75 Ohms (Standard F-Connector)
    Operating VoltageDC 12V (Compatible with RV battery systems)
    Housing ProtectionIP66 Waterproof / UV-Stabilized ASA
    Connector TypeGold-plated F-Male / SMA
    Mounting StyleRooftop Permanent / Pole Mount

    5. Benefits of Installing a Professional RV Antenna

    • Crystal Clear 4K & 1080p: Access uncompressed digital signals that often provide better picture quality than compressed cable or satellite feeds.

    • Cost Efficiency (Cord-Cutting): Eliminate expensive subscription fees while enjoying free access to major networks like ABC, NBC, CBS, and FOX.

    • Safety & Awareness: Stay informed with local weather alerts and news in the specific region you are visiting—essential for safe travel in unfamiliar territory.

    • Durability: Unlike standard home antennas, RV-specific models are tested for high-vibration environments to ensure long-term reliability on rough roads.

    6. Frequently Asked Questions (FAQ)

    Q1: Do I need to re-scan for channels every time I move?

    Yes. Whenever you change locationss, you must perform a "Channel Scan" on your TV. This allows the tuner to detect the specific local towers in your new area.

    Q2: Why is my indoor antenna not working inside the RV?

    Most RVs have metal or fiberglass shells that act as a "Faraday Cage," blocking external signals. A roof-mounted outdoor antenna is necessary to bypass these barriers and capture a usable signal.

    Q3: Can an RV antenna receive 5G signals?

    Standard RV TV Antennas are for television broadcasting. However, many "NextGen" models are built to support ATSC 3.0, which integrates internet-based features and higher-quality 4K data streams
