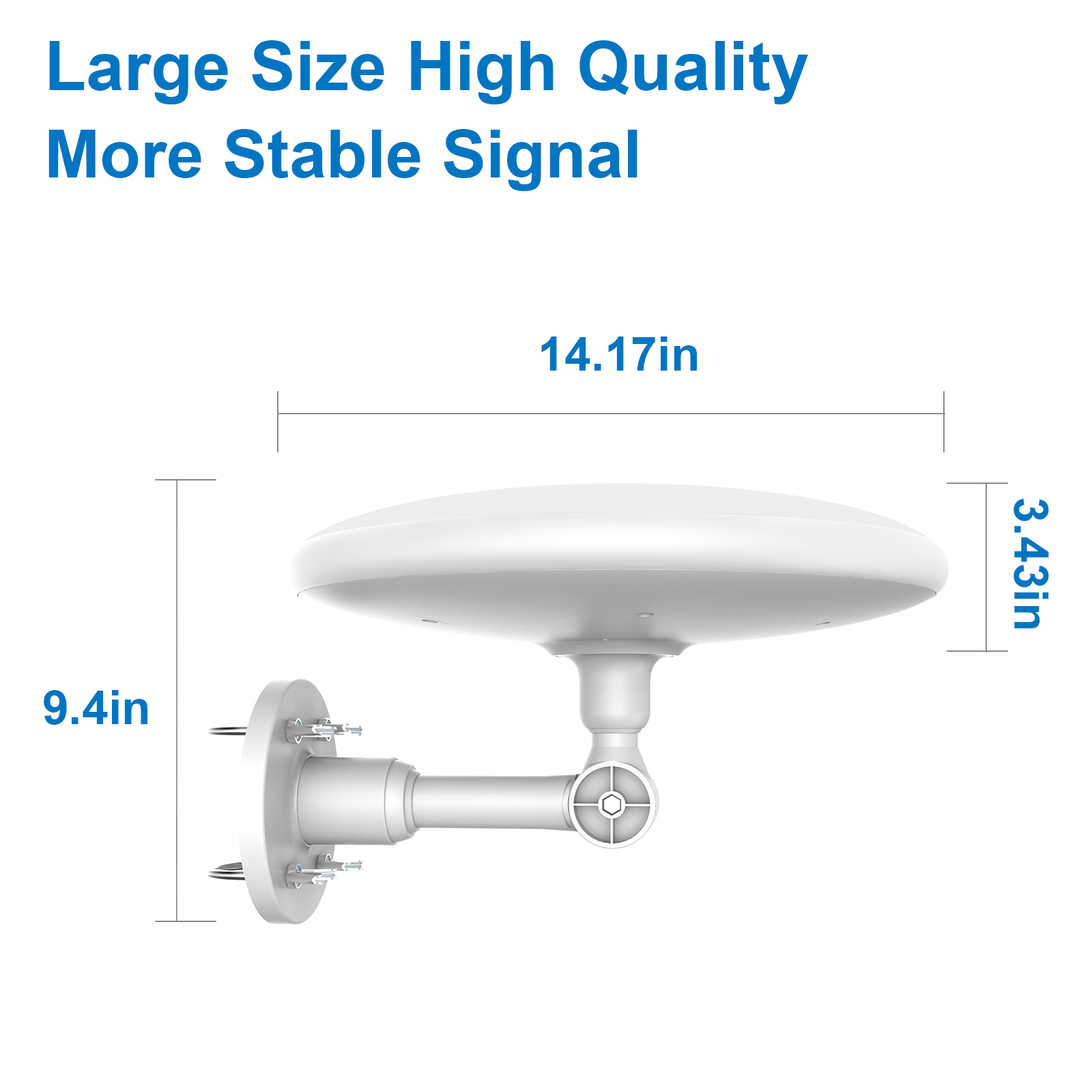

    antena de tv digital.jpg




    1. What Is an Outdoor Digital tv antenna?

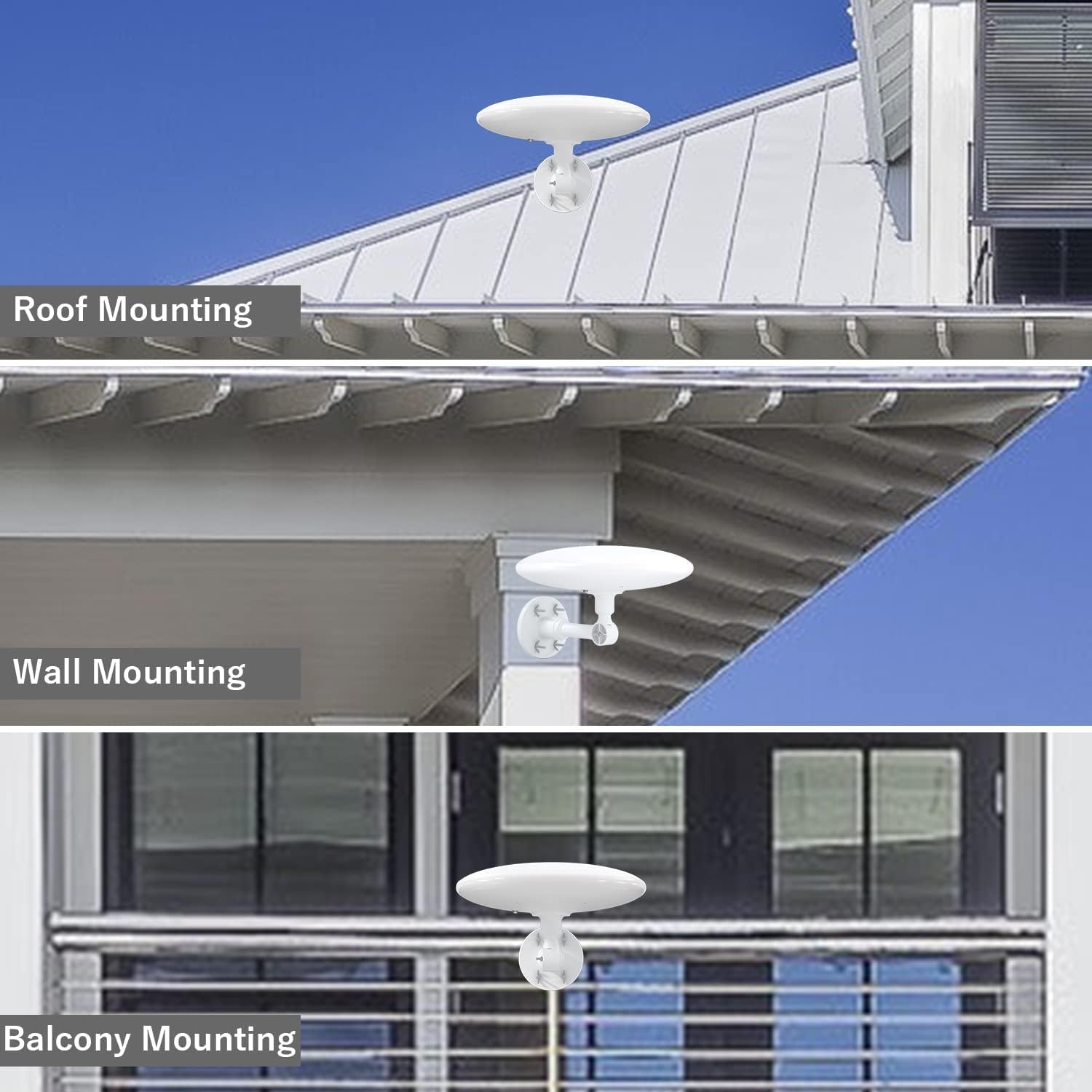

    An outdoor digital TV Antenna is a weather-resistant reception device mounted outside the home — typically on a rooftop, mast, gable end, or exterior wall — designed to capture free over-the-air (OTA) digital television broadcasts from local transmission towers. Unlike compact indoor Antennas that sit on a desk or window, outdoor antennas are larger, more sensitive, and elevated above the building's structure, giving them a clear line-of-sight to broadcast towers and dramatically better signal reception.

    Outdoor antennas receive the same free HDTV channels as any other antenna — major networks like ABC, CBS, NBC, FOX, PBS, and The CW, plus dozens of digital sub-channels. The difference is range and reliability. An outdoor antenna mounted 25 feet above ground level routinely pulls in stations 50 to 80 miles away that an indoor antenna at the same locations cannot detect at all. For rural homes, fringe reception areas, and any locations where broadcast towers are distant or terrain obstructs the signal path, an outdoor antenna is not an upgrade — it is the only practical way to receive free television.

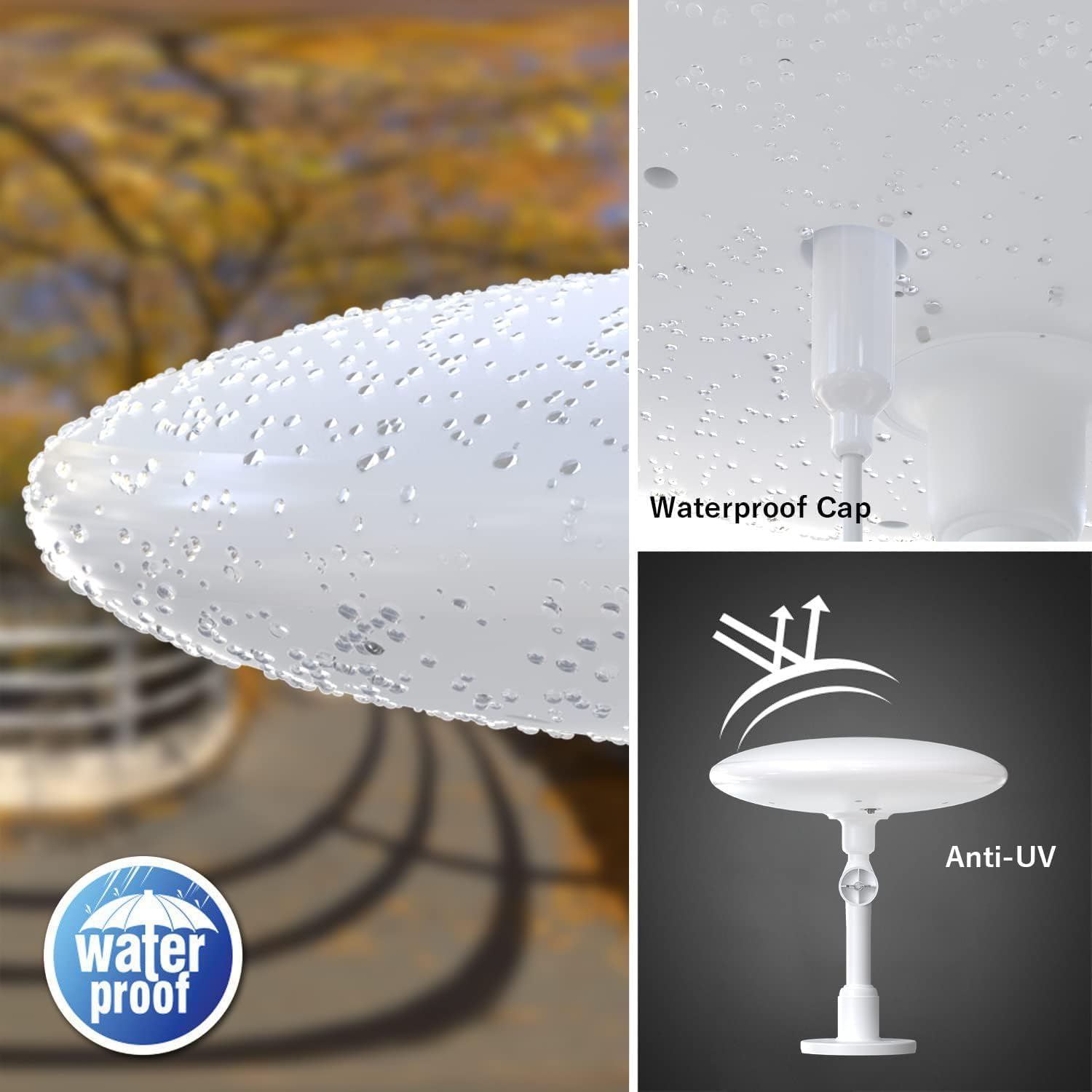

    Outdoor antennas are built for permanent exterior exposure. They use UV-stabilized materials, corrosion-resistant aluminum or stainless steel elements, weatherproof connection housings, and wind-rated mounting hardware. A properly installed outdoor antenna lasts 10 to 20 years with no maintenance beyond occasional inspection, delivering free television year after year.

    Key Point: An outdoor antenna captures the same ATSC digital broadcasts as an indoor antenna — there is no "outdoor-only" signal. The outdoor antenna simply does it at greater distance, with higher gain, less interference, and more consistent results because it is elevated above the building and clear of indoor obstructions.

    2. Types of Outdoor TV Antennas

    Yagi-Uda Antennas — The Classic Directional Design

    The Yagi Antenna is the most recognizable outdoor TV antenna — a long central boom with multiple parallel metal elements: a driven element (the active receiving component), a slightly longer reflector element behind it, and several shorter director elements in front. This arrangement creates a highly directional reception pattern with a narrow beamwidth of roughly 30 to 60 degrees. Yagi antennas deliver high gain — typically 8 to 18 dBi depending on the number of elements — making them excellent for long-range reception when all local broadcast towers are clustered in one direction. A well-aimed Yagi antenna on a rooftop mount is the benchmark for deep-fringe reception at 60 to 80 miles.

    Log-Periodic Antennas — Wideband Performance

    Log-periodic dipole arrays (LPDAs) look similar to Yagi antennas but use a different element arrangement that produces consistent gain and impedance across a much wider frequency range. A quality log-periodic outdoor antenna performs well on both VHF (channels 2–13) and UHF (channels 14–51) without the VHF performance drop-off common with UHF-optimized Yagi designs. This makes log-periodic antennas the best choice for markets where major network affiliates are spread across both VHF and UHF bands. Gain is typically 6 to 12 dBi — slightly lower than a comparable Yagi — but the broad, flat frequency response is often more valuable than an extra few dB of peak gain on a narrow band.

    Multi-Bay Bowtie / Grid Antennas — UHF Powerhouses

    Multi-bay antennas use stacked figure-8 or grid-shaped elements arranged vertically on a common mast. Each bay adds gain, and combining two, four, or eight bays creates a high-gain UHF array — often 10 to 17 dBi — with a wider horizontal beamwidth than a Yagi of equivalent gain. Multi-bay antennas are the standard choice for UHF reception in areas where towers are spread across a wide compass arc. Their primary limitation is VHF performance: bowtie elements are inefficient at VHF wavelengths, so a separate VHF antenna or a combo unit with VHF dipole elements may be needed if VHF channels are important at your locations.

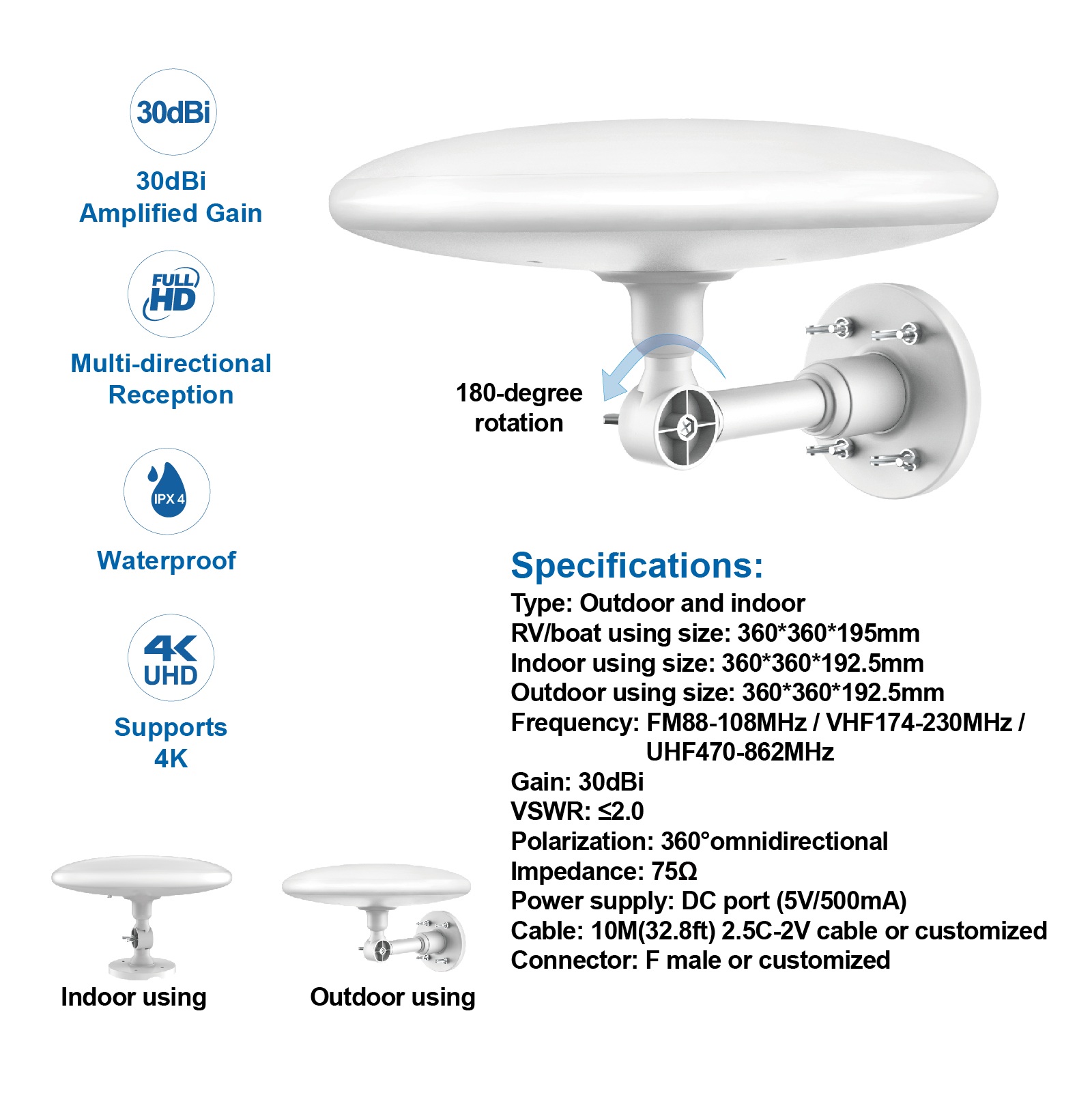

    Omnidirectional Outdoor Antennas

    Omnidirectional outdoor antennas receive signals from all 360 degrees equally. Gain is modest — typically 2 to 5 dBi — because the antenna does not concentrate its sensitivity in any one direction. They are the right choice when broadcast towers surround the home at roughly equal distances, eliminating the need to aim the antenna. However, their low gain limits effective range to about 30 to 40 miles in most conditions, and they are more susceptible to multipath interference than directional designs because they cannot reject reflected signals arriving from the sides and rear.

    Which Outdoor Antenna Type Should You Choose?

    If all your desired broadcast towers are within a 60-degree compass arc and you need maximum range, choose a directional Yagi or log-periodic antenna. If towers are spread across a wide angle, a multi-bay UHF antenna with a supplemental VHF element provides the best balance of gain and coverage. If towers surround you at similar distances, an omnidirectional outdoor antenna is the simplest solution. Always use the FCC DTV Reception Maps to see exactly where your local towers are located before selecting an antenna type.
