    1. What is a Picture Frame Antenna?

    A Picture Frame Antenna (also referred to as a Decorative TV Antenna or Concealed Indoor Antenna) is an innovative consumer electronics product that hides a high-performance digital television receiver inside a functional photo frame or piece of artwork. Designed for modern living spaces, it allows users to receive free Over-the-Air (OTA) broadcasts in 1080p Full HD and 4K Ultra-HD without cluttering their walls or windows with ugly plastic Antennas.

    2. The Science of Concealed Signal Reception

    Many consumers worry that hiding an antenna behind a picture frame will degrade signal quality. However, modern engineering has completely resolved this issue:

    • Ultra-Thin Elements: High-conductivity, micro-thin receiving elements are integrated directly into the backboard of the frame, ensuring they capture UHF and VHF waves without adding bulk.

    • Acoustically & Electromagnetically Transparent Materials: The front of the frame uses specialized glass, acrylic, or canvas fabrics that do not reflect or absorb radio frequency (RF) signals.

    • Smart Amplification: Most picture frame antennas are active systems, utilizing an external or inline Signal Booster (Amplifier) with built-in filters to block cellular 4G/5G LTE interference and deliver clean digital feeds.

    3. Key Benefits of Using a Decorative HDTV Antenna

    • Seamless Aesthetic Integration: It looks like a premium, customizable photo frame on a shelf or wall. Users can insert their own family photos or art prints, making the technology virtually invisible.

    • No More Sticky Window Leaf Antennas: Eliminates the need to tape black plastic sheets to windows, preserving the interior design of modern apartments and homes.

    • Dual-Position Flexibility: Most models come with a versatile back kickstand for tabletop display (easier to rotate for signal tuning) and integrated brackets for secure wall mounting.

    • Free Uncompressed TV (Cord-Cutting): Access major local networks (CBS, NBC, ABC, FOX, PBS) with superior, uncompressed picture quality that satellite and cable providers cannot match—with zero monthly contracts.

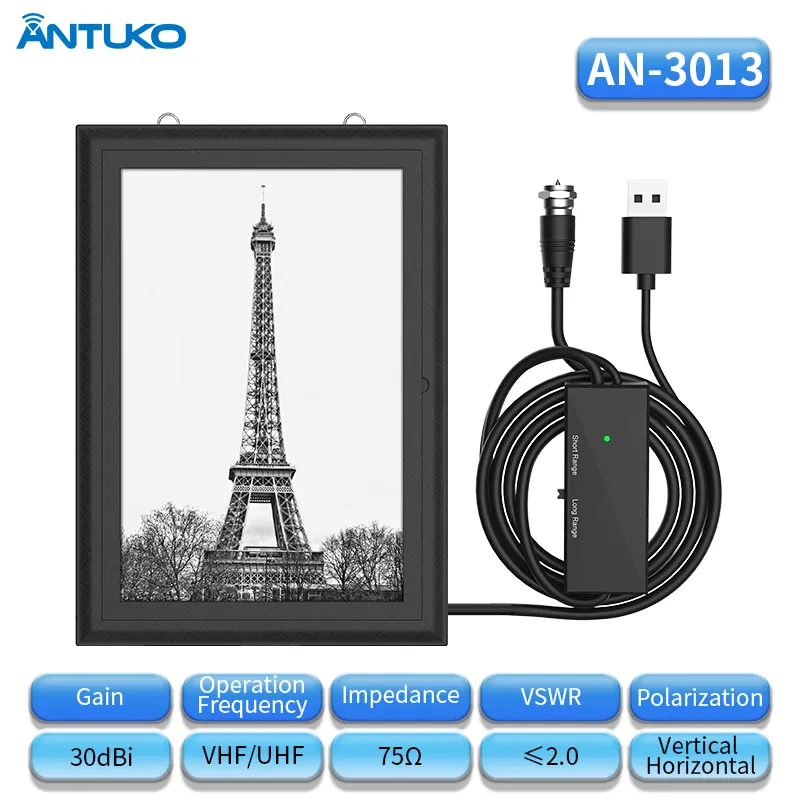

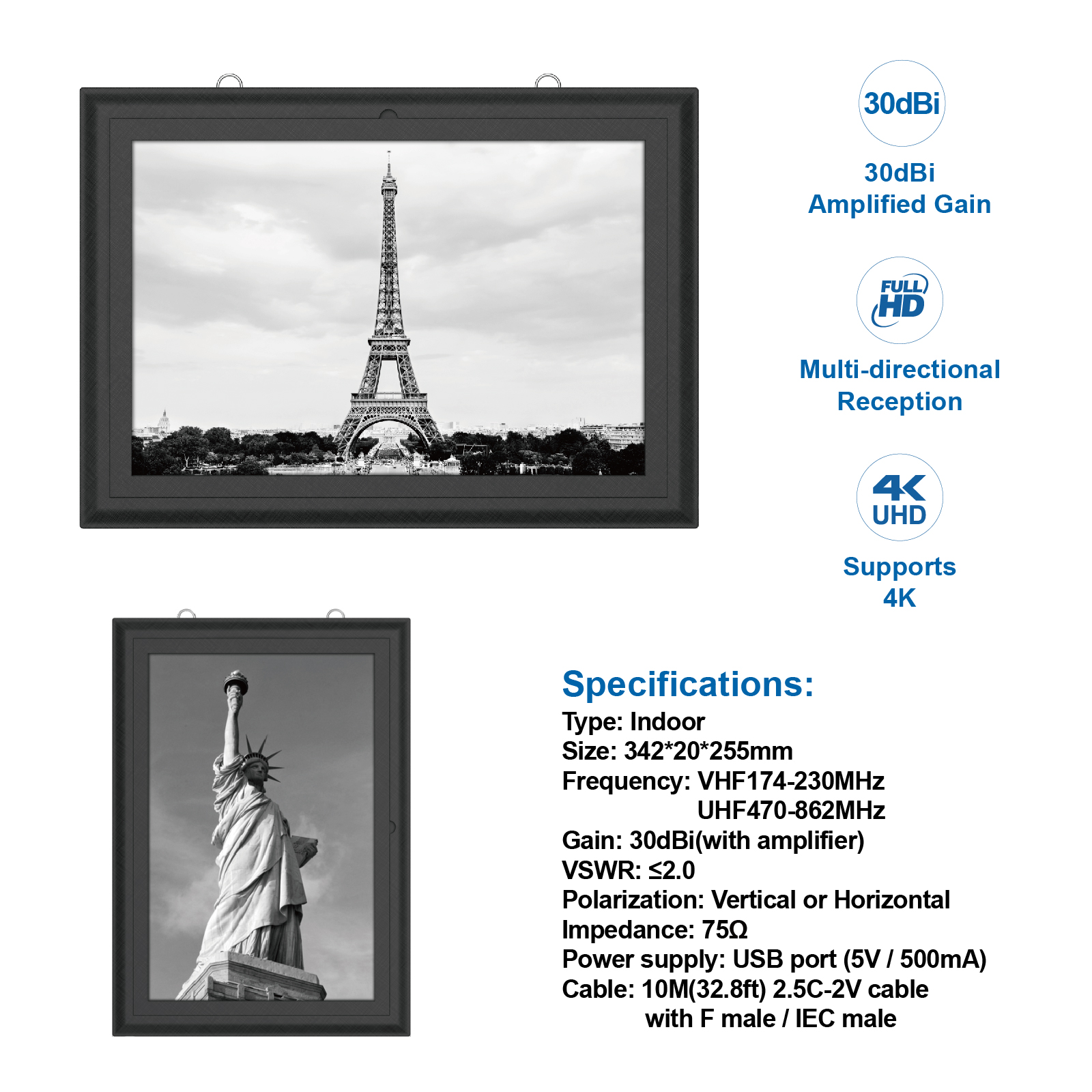

    4. Technical Specifications Table

    The following table outlines the industry standards for high-performance decorative picture frame antennas.

    FeatureTechnical Specification
    Frequency RangeVHF (174-230MHz) / UHF (470-862MHz)
    Max Signal Range50 - 80+ Miles (with Inline Amplifier)
    Typical Gain5dBi (Passive) / 25dBi (Amplified)
    Noise Figure≤ 2.0dB (Ultra-Low Noise Circuitry)
    Impedance75 Ω
    Frame MaterialEco-friendly MDF Wood / Premium ABS / Acrylic Glass
    Compatible FormatsATSC 3.0 (NextGen TV Ready), DVB-T/T2, ISDB-T

    5. Main Design Types of Hidden Antennas

    A. Tabletop Photo Frame Antennas

    Designed with a sturdy wooden or plastic border and an integrated easel stand. These are placed on TV cabinets, sideboards, or bookshelves close to windows.

    B. Wall-Mounted Art Antennas

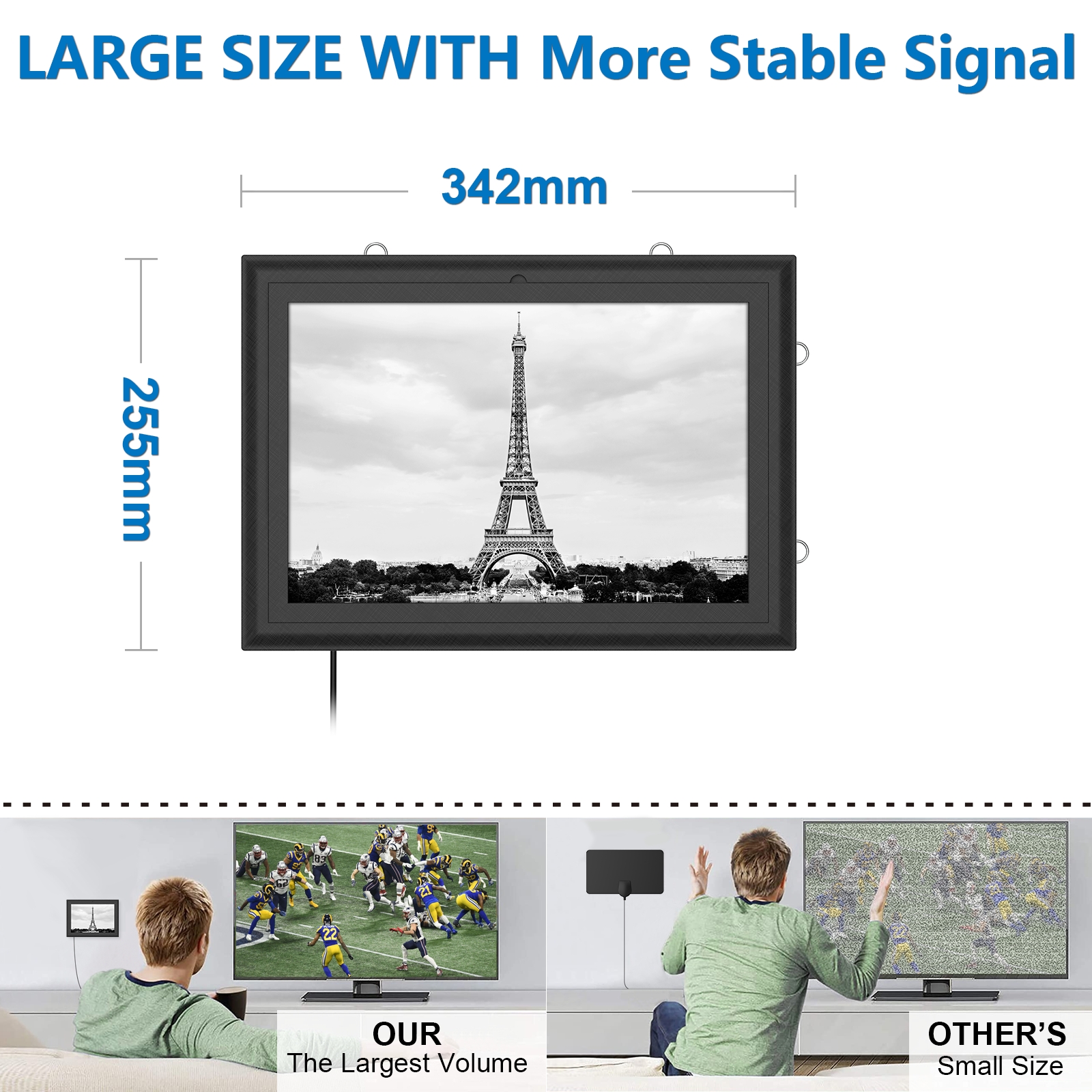

    Larger canvas or framed artwork units that hang directly on the wall. They offer a larger surface area, allowing for a bigger antenna element which naturally increases passive signal gain.

    C. Shadow Box Antennas

    Slightly deeper frames that allow users to display 3D objects or thicker canvas art, completely masking the dual-frequency antenna elements hidden in the rear compartment.

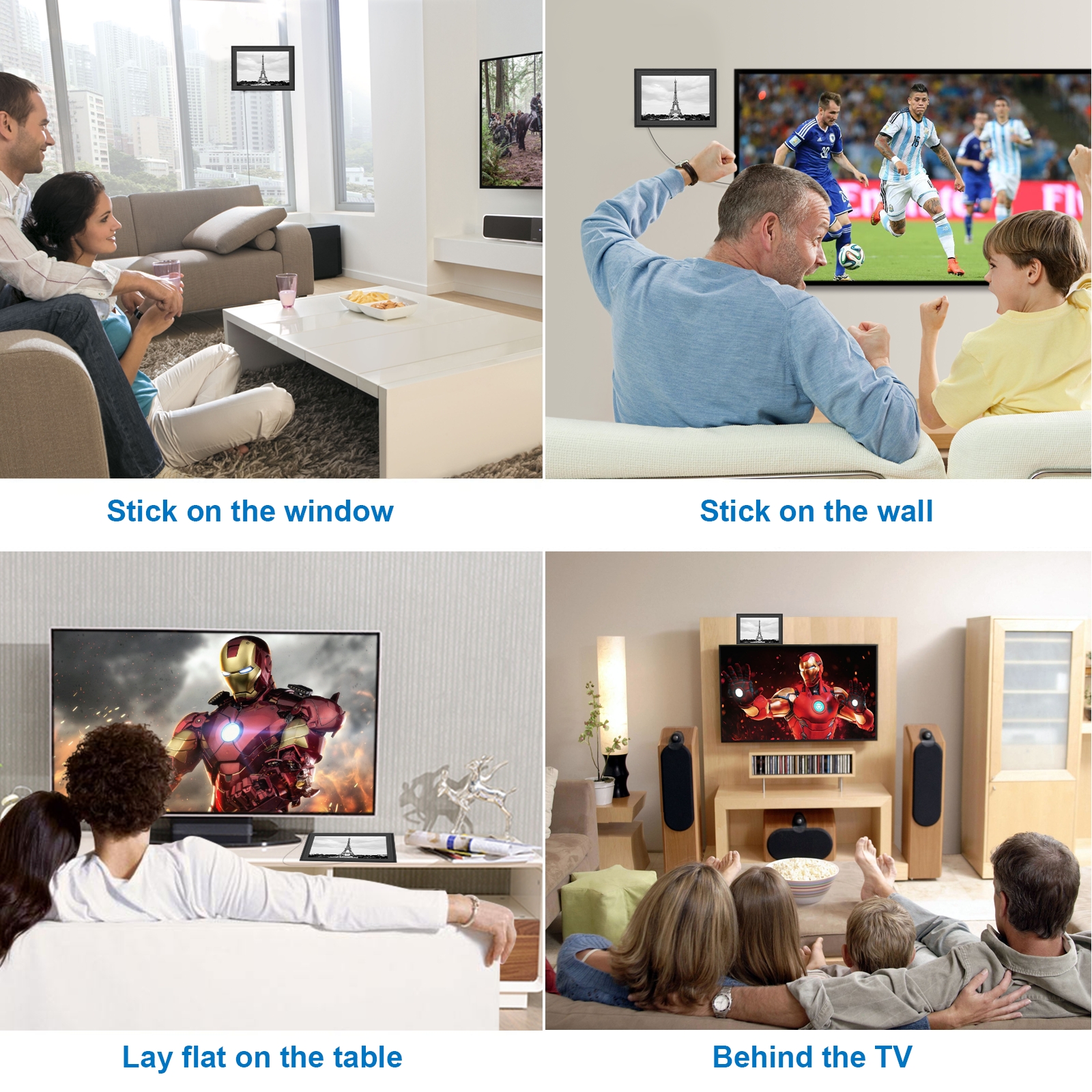

    6. Pro Tips for Better Reception with Decorative Antennas

    Because these antennas are designed to sit inside the living space, placement is critical to bypass physical barriers:

    1. The Window View: Place the picture frame on a console table near a window. A clear line of sight to the exterior always yields the highest number of channels.

    2. Aiming by Angle: For directional designs, rotate the frame slightly to face the direction of the local broadcast towers. Since it is a picture frame, it easily blends in even when placed at a slight angle.

    3. Power the Amp Appropriately: If you are within 20 miles of a tower, run the antenna passively (without the amplifier). If you are further away, plug in the USB amplifier to boost the signal-to-noise ratio.

    7. Frequently Asked Questions (FAQ)

    Q1: Can I change the picture inside the frame myself?

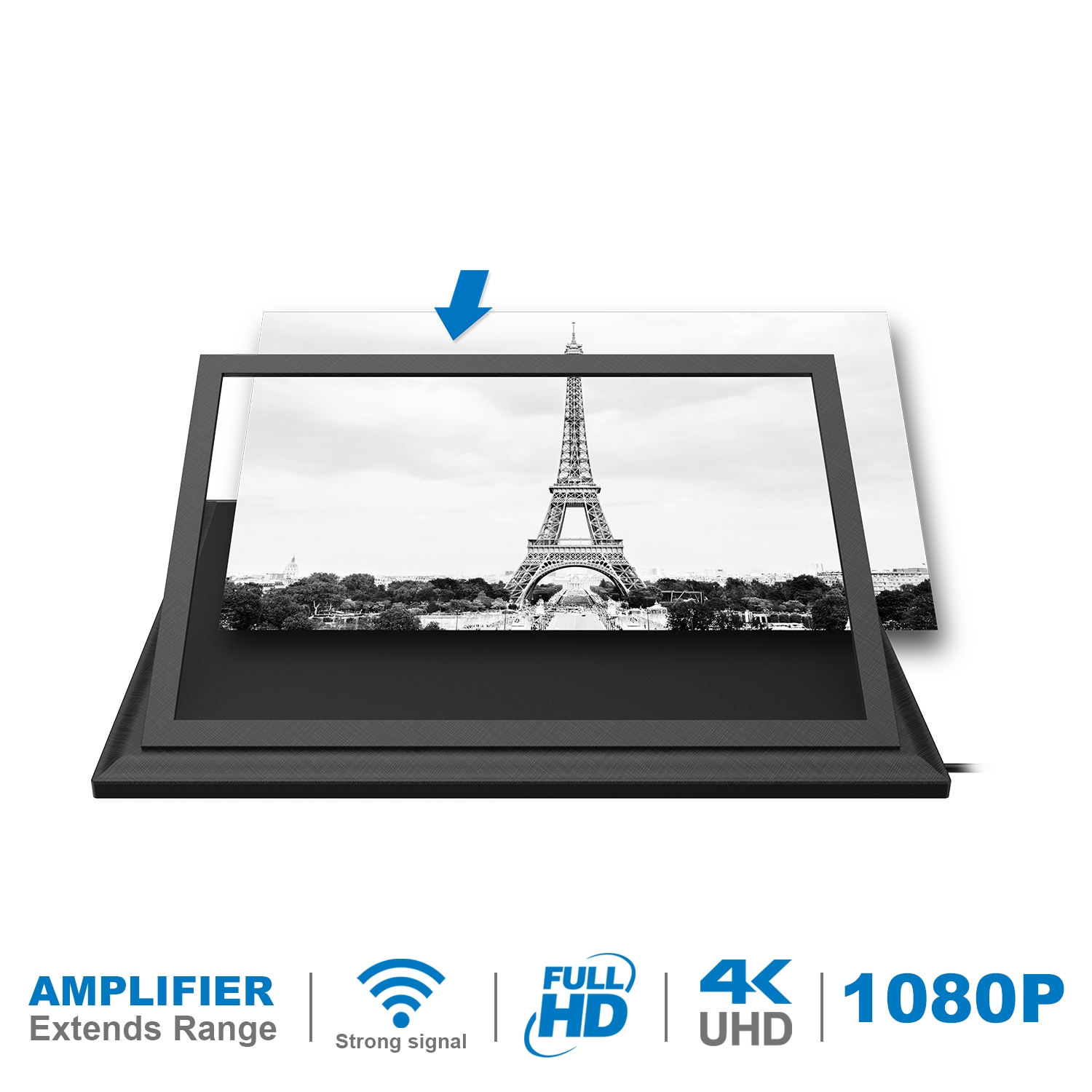

    Yes. Professional picture frame antennas are built with standard rear clips, allowing you to swap out the stock artwork for any personal family photo or custom print without damaging the internal receiving hardware.

    Q2: Will the glass or acrylic cover block the TV signal?

    No. Acrylic, standard glass, and paper photos do not have conductive properties, meaning they are completely transparent to UHF and VHF digital signals.

    Q3: Do they require a special power outlet?

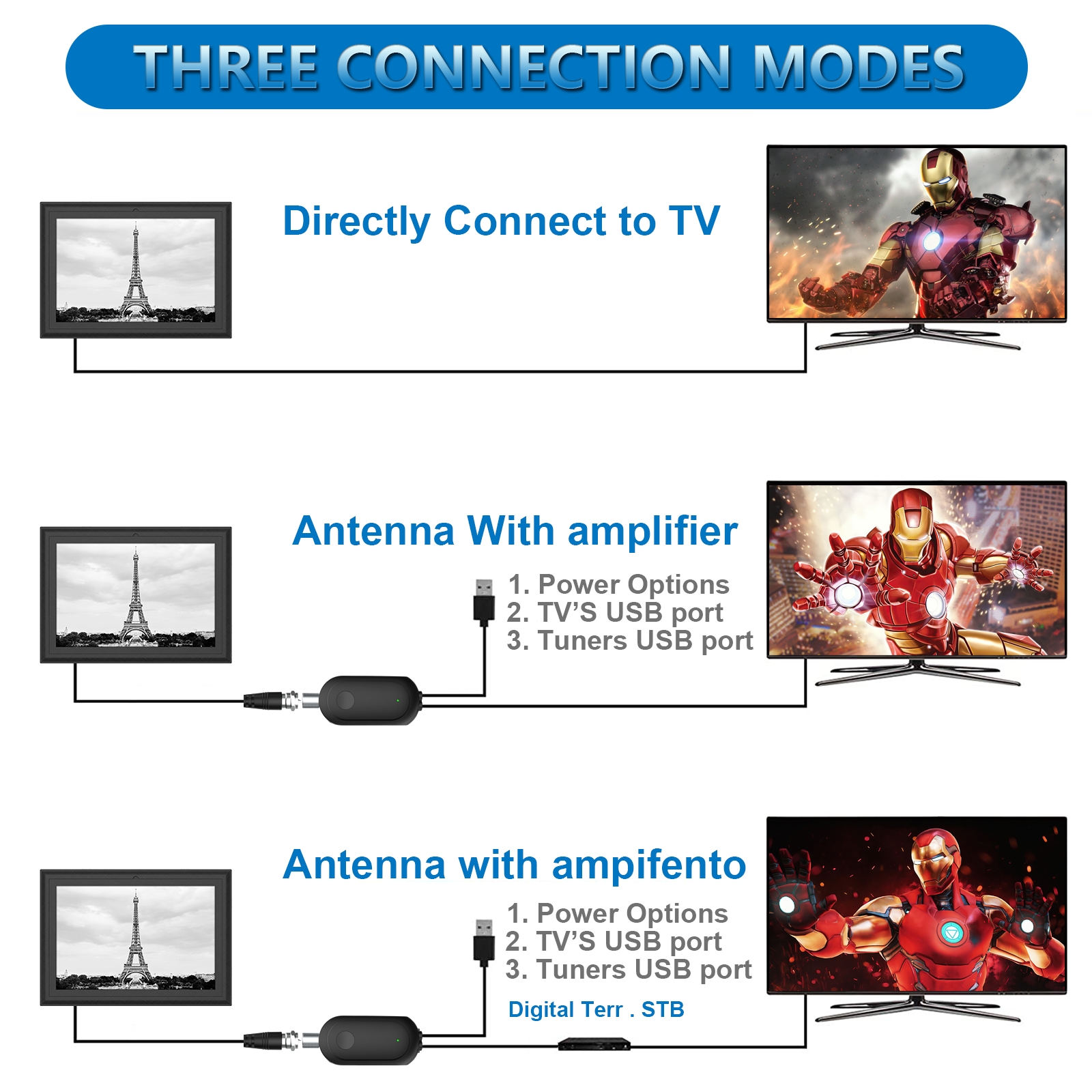

    Passive models require no power. Amplified models are powered via a standard USB cable that can be plugged directly into the TV’s USB port or a wall adapter.
