    Cell phoness Signal Amplifier

      Cell phoness Signal Amplifier

      1. What is a Cell phones Signal Booster?A Cell phones Signal Booster (also known as a Cellular Repeater or mobiles Signal Amplifier) is a sophisticated bi-directional amplifier (BDA) system designed to improve cellular connectivity in areas with weak signals. Whether the cause is distance from a cell tower, geographical obstructions (mountains/trees), or building materials (metal/concrete), a signal booster captures a faint outdoor signal, strengthens it, and rebroadcasts it inside a home, office, or vehicle.2. How Does a mobiles Signal Booster Work?The system utilizes a three-stage process to eli...
    • Share：
      • Contact us Inquiry




    LAMP-1001銀色 詳情7.jpg

    LAMP-1001銀色 詳情8.jpg

    LAMP-1001銀色 詳情10.jpg

    1. What is a Cell phones Signal Booster?

    A Cell phones Signal Booster (also known as a Cellular Repeater or mobiles Signal Amplifier) is a sophisticated bi-directional amplifier (BDA) system designed to improve cellular connectivity in areas with weak signals. Whether the cause is distance from a cell tower, geographical obstructions (mountains/trees), or building materials (metal/concrete), a signal booster captures a faint outdoor signal, strengthens it, and rebroadcasts it inside a home, office, or vehicle.

    2. How Does a mobiles Signal Booster Work?

    The system utilizes a three-stage process to eliminate "dead zones" and improve network reliability:

    1. Signal Capture (Donor Antenna): A powerful outdoor antenna pulls in weak 4G LTE or 5G signals from the nearest carrier tower.

    2. Amplification (Booster Base): The signal is transmitted via coaxial cable to the internal amplifier, where the gain (measured in decibels or dB) is increased significantly.

    3. Distribution (Server Antenna): The boosted signal is distributed throughout the interior space via an indoor antenna, providing full signal bars to all mobiles devices within range.

    3. Key Benefits of Implementing a Cellular Repeater System

    Integrating a professional-grade mobiles signal amplifier offers several critical advantages for residential and commercial users:

    • Eliminate Dropped Calls: Provides a stable connection for voice calls and VoLTE, ensuring uninterrupted communication.

    • Faster 4G LTE & 5G Data Speeds: Enhances download and upload speeds, which is essential for high-definition streaming, gaming, and remote work.

    • Extended Battery Life: mobiles devices consume significantly less power when connected to a strong signal, as they no longer need to exhaust energy "searching" for a network.

    • Multi-User & Multi-Carrier Support: Most modern boosters are designed to support multiple users and all major network carriers simultaneously.

    • Wider Coverage Area: Capable of covering single rooms, multi-story buildings, or large industrial warehouses depending on the device's power rating.

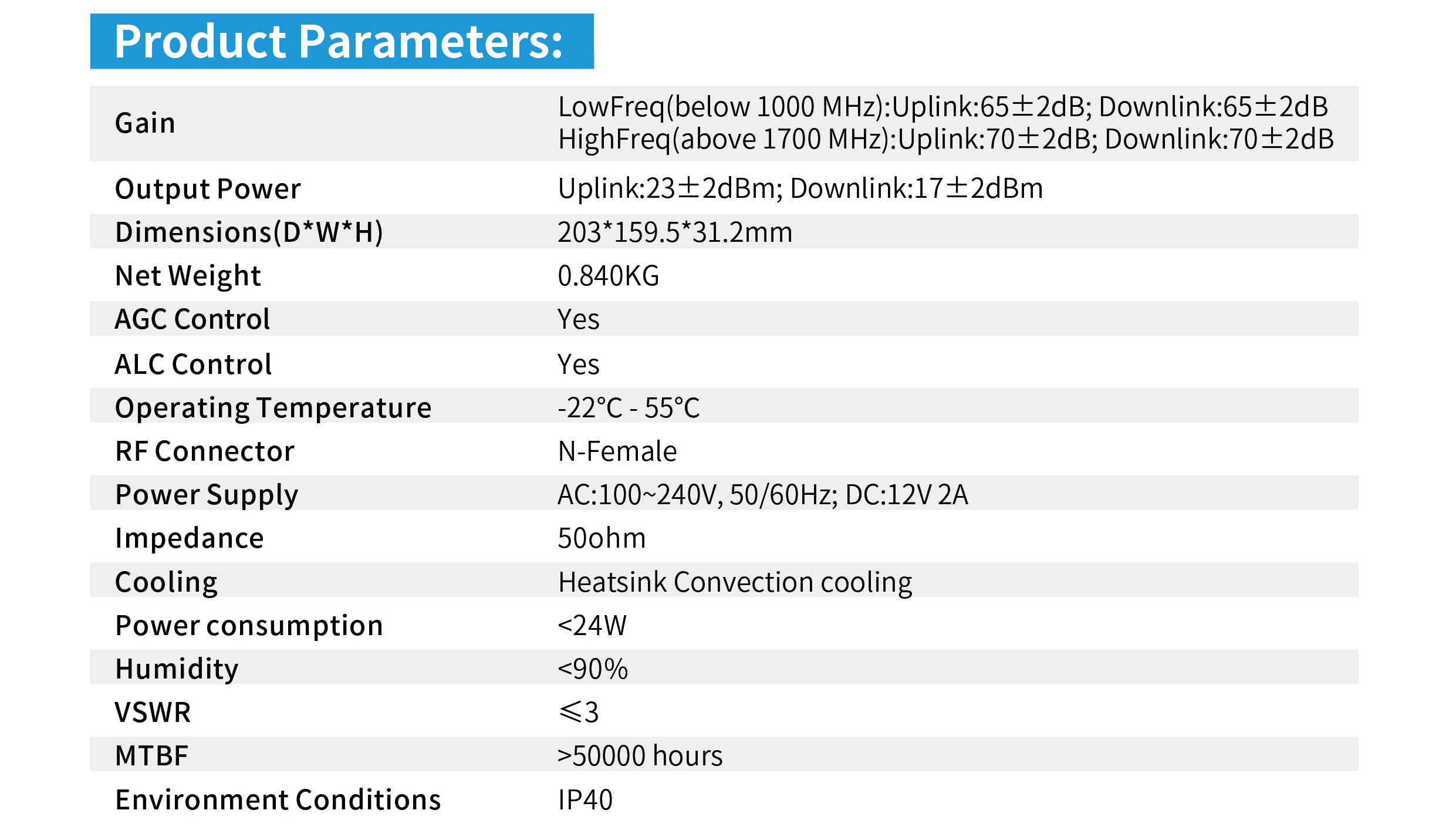

    4. Technical Specifications Table

    The following table outlines the industry-standard parameters for high-performance mobiles signal boosters.

    FeatureTechnical Specification
    Frequency Bands700MHz, 800MHz, 850MHz, 900MHz, 1800MHz, 1900MHz, 2100MHz, 2600MHz
    Supported NetworksGSM, WCDMA, 4G LTE, 5G NR (Sub-6GHz)
    Max Gain65dB (Residential) / 72dB+ (Commercial) / 50dB (Vehicle)
    Automatic Gain Control (AGC)Integrated (Prevents signal oscillation and interference)
    Impedance50 Ohm (N-Type) / 75 Ohm (F-Type)
    Output Power10dBm to 27dBm (varies by model)
    Power SupplyAC: 100-240V; DC: 5V/12V
    Operating Temp-10°C to +55°C

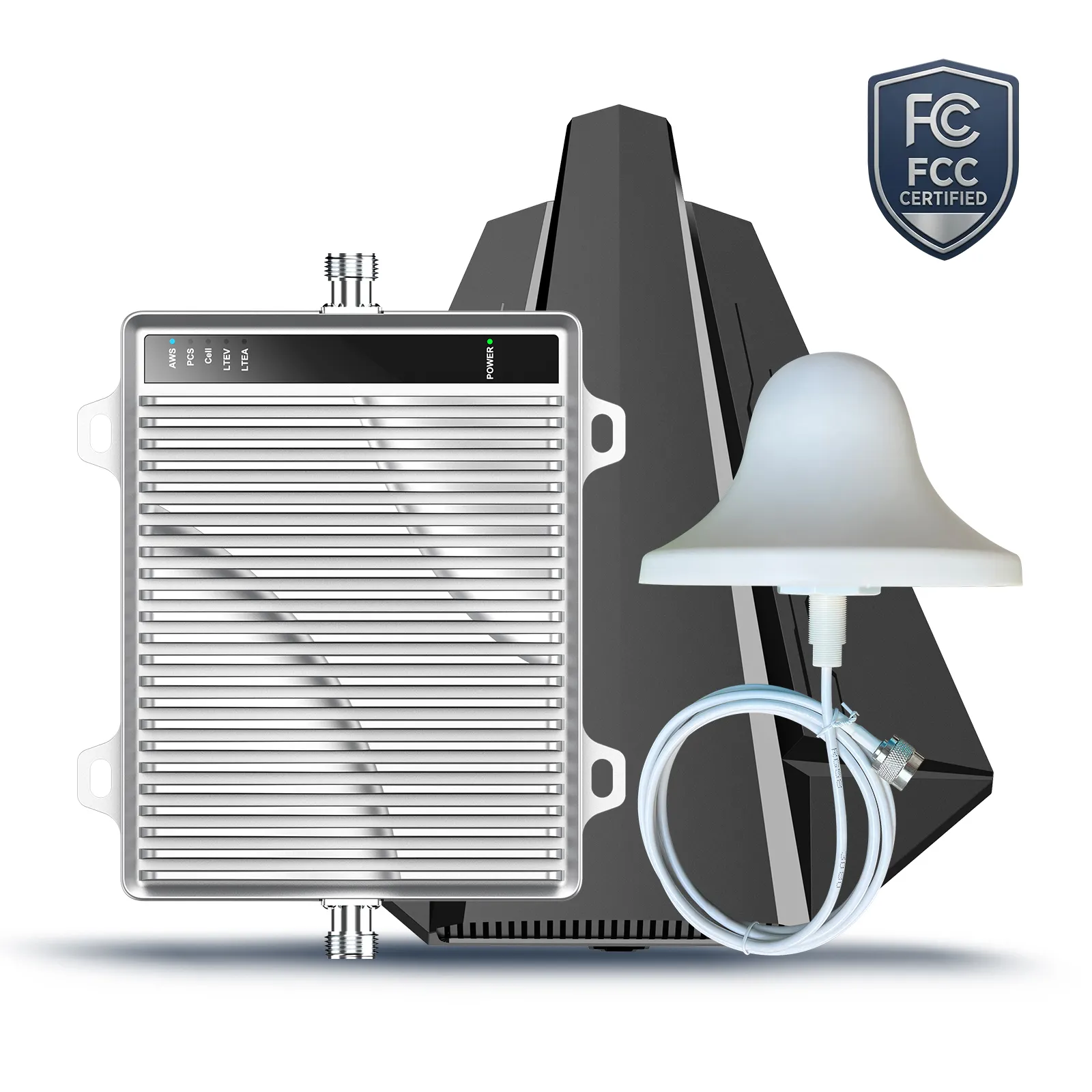

    5. Main Components of a Signal Booster Kit

    A complete industry-standard kit typically includes:

    1. Outdoor Donor Antenna: Usually a Yagi (Directional) or Omni-directional antenna.

    2. Amplifier Unit: The core hardware that processes and strengthens the signal.

    3. Indoor Server Antenna: Ceiling-mounted (Omni) or Wall-mounted (Panel) options.

    4. Low-Loss Coaxial Cables: High-quality cables (like LMR-400 or RG-6) to minimize signal loss during transmission.

    6. Understanding Signal Strength (dBm)

    Cell signal is measured in dBm (decibels-milliwatts). Understanding these values is crucial for diagnosing coverage issues:

    • -50 dBm to -70 dBm: Excellent signal (Full bars).

    • -80 dBm to -90 dBm: Good/Reliable signal.

    • -100 dBm to -110 dBm: Weak signal (Prone to dropped calls).

    • -120 dBm: "Dead Zone" (No service).

    Note: A booster typically increases the signal by +60dB to +70dB, effectively moving a user from a "Dead Zone" to an "Excellent" connection.

    7. Frequently Asked Questions (FAQ)

    Q1: Do I need an internet connection for a signal booster to work?

    No. Unlike Femtocells or Wi-Fi Calling, a mobiles signal booster does not require an internet connection. It works by capturing and enhancing existing cellular waves.

    Q2: Can a signal booster create signal where there is none?

    No. There must be at least a faint, usable signal available outside the building (even if only on the roof). A booster amplifies an existing signal; it cannot create signal out of zero.

    Q3: Are these devices legal and certified?

    In most regions, boosters must be certified by local authorities (such as the FCC in the USA, CE in Europe, or IC in Canada) to ensure they do not interfere with carrier networks.

    Q4: Does a 4G booster work for 5G?

    Many modern "Wideband" boosters support the 5G Low-Band frequencies used by major carriers. However, dedicated 5G boosters are required for the high-frequency mmWave bands.
